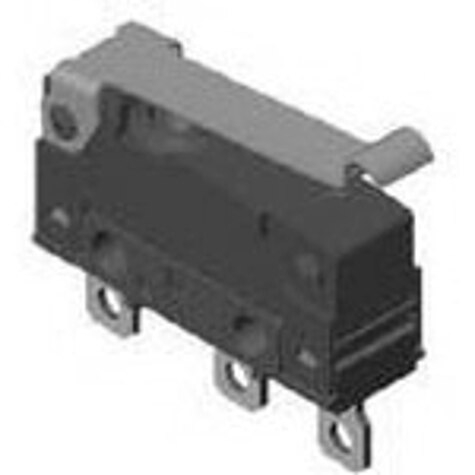

D2SW-P Series
Basic / Snap Action Switches Hinge rllr levr 61gf Sealed solder 2 A
Manufacturer: Omron Electronics Inc-EMC Div
Catalog
Basic / Snap Action Switches Hinge rllr levr 61gf Sealed solder 2 A
Beta
⌘K
Basic / Snap Action Switches Hinge rllr levr 61gf Sealed solder 2 A
Basic / Snap Action Switches Hinge rllr levr 61gf Sealed solder 2 A
Basic / Snap Action Switches Hinge rllr levr 61gf Sealed solder 2 A
| Part | Switch Function | Mechanical Life | Voltage Rating - DC | Current Rating (Amps) | Voltage Rating - AC | Differential Travel | Differential Travel | Operating Force | Circuit | Ingress Protection | Electrical Life | Termination Style | Actuator Type | Mounting Type | Overtravel [custom] | Overtravel [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Release Force |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | On-Mom | 1000000 Cycles | 30 V | 100 mA | 125 V | 0.031 in | 0.8 mm | 61 gf | SPDT | IP67 - Dust Tight Waterproof | 200000 Cycles | Wire Leads | Lever Simulated Roller | Chassis Mount | 0.03 " | 0.76 mm | -20 ░C | 70 °C | 5.099 gf |
