DRA Series

Power Inductors - SMD 2.2uH 4.93A 0.016ohms

Manufacturer: Eaton - Electronics Division

Catalog

Power Inductors - SMD 2.2uH 4.93A 0.016ohms

Catalog

Power Inductors - SMD 2.2uH 4.93A 0.016ohms

Part	Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	DC Resistance (DCR)	Operating Temperature [Min]	Operating Temperature [Max]	Current - Saturation (Isat)	Shielding	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Mounting Type	Tolerance	Package / Case	Inductance	Current Rating (Amps)	Inductance Frequency - Test	Ratings	Height - Seated (Max) [Max] [z]	Height - Seated (Max)	Height - Seated (Max) [Max] [z]

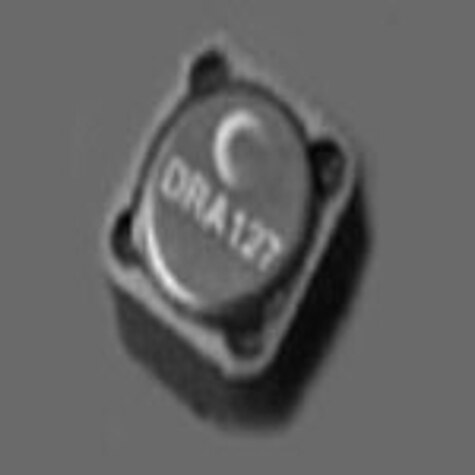

Eaton - Electronics Division DRA127-8R2-R	Wirewound	12.5 mm	0.492 "	12.5 mm	0.492 "	16 mOhm	-40 C	165 °C	12.2 A	Shielded	8 mm	0.315 in	Surface Mount	20 %	Nonstandard	8.2 µH	6.33 A	100 kHz	AEC-Q200
Eaton - Electronics Division DRA73-2R2-R	Wirewound	7.6 mm	0.299 "	7.6 mm	0.299 "	16 mOhm	-40 C	165 °C	4.93 A	Shielded			Surface Mount	20 %	Nonstandard	2.2 µH	4.18 A	100 kHz	AEC-Q200	0.14 "	3.55 mm
Eaton - Electronics Division DRA124-R47-R	Wirewound	12.5 mm	0.492 "	12.5 mm	0.492 "	1.9 mOhm	-40 C	165 °C	30.8 A	Shielded			Surface Mount	20 %	Nonstandard	470 nH	15.15 A	100 kHz	AEC-Q200	0.177 in		4.5 mm
Eaton - Electronics Division DRA73-1R5-R	Wirewound	7.6 mm	0.299 "	7.6 mm	0.299 "	9.7 mOhm	-40 C	165 °C	6.73 A	Shielded			Surface Mount	20 %	Nonstandard	1.5 µH	5.39 A	100 kHz	AEC-Q200	0.14 "	3.55 mm
Eaton - Electronics Division DRA74-2R2-R	Wirewound	7.6 mm	0.299 "	7.6 mm	0.299 "	12 mOhm	-40 C	165 °C		Shielded	4.35 mm	0.171 in	Surface Mount	20 %	Nonstandard	2.2 µH	4.82 A	100 kHz	AEC-Q200
Eaton - Electronics Division DRA124-471-R	Wirewound	12.5 mm	0.492 "	12.5 mm	0.492 "	1.32 Ohm	-40 C	165 °C	911 mA	Shielded			Surface Mount	20 %	Nonstandard	470 µH	568 mA	100 kHz	AEC-Q200	0.177 in		4.5 mm
