2232043 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

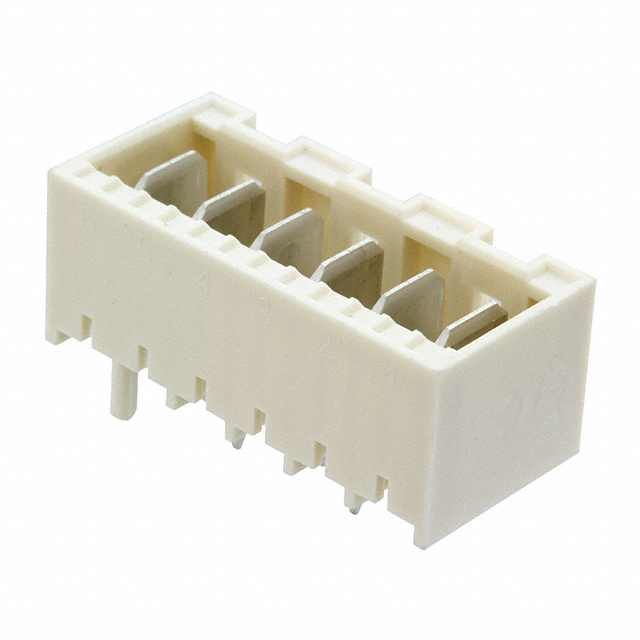

CONN HEADER VERT 6POS 5MM
| Part | Contact Finish - Post | Number of Rows | Contact Material | Contact Length - Post | Contact Length - Post | Shrouding | Connector Type | Mounting Type | Fastening Type | Number of Positions | Insulation Height | Insulation Height | Insulation Color | Style | Applications | Termination | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Contact Type | Material Flammability Rating | Insulation Material | Pitch - Mating | Pitch - Mating | Features | Number of Positions Loaded | Contact Shape |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Tin | 1 | Copper Alloy | 3.5 mm | 0.138 in | Shrouded - 4 Wall | Header | Through Hole | Latch Holder | 6 | 12.8 mm | 0.504 in | Natural | Board to Cable/Wire | General Purpose | Solder | 250 VAC | -40 °C | 120 °C | Tab | UL94 V-0 | Nylon Polyamide (PA) | 5 mm | 0.197 " | Board Guide Glow Wire Compliant | All | Rectangular |

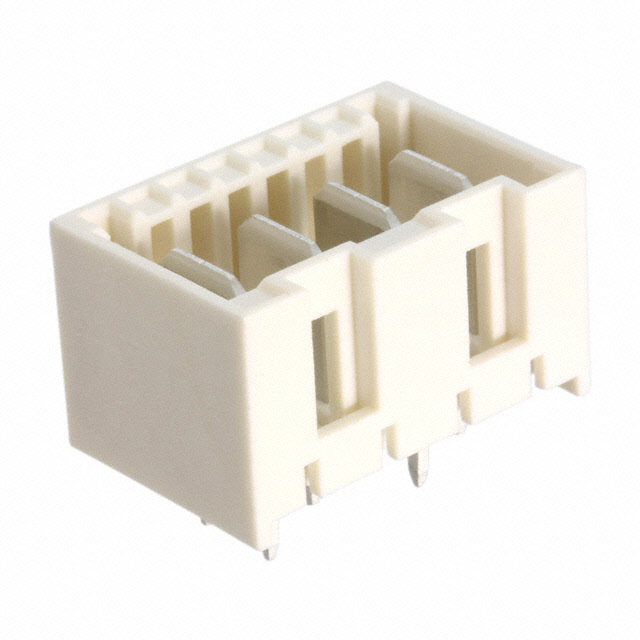

 TE Connectivity Raychem Cable Protection | Tin | 1 | Copper Alloy | 3.5 mm | 0.138 in | Shrouded - 4 Wall | Header | Through Hole | Latch Holder | 4 | 12.8 mm | 0.504 in | Natural | Board to Cable/Wire | General Purpose | Solder | 250 VAC | -40 °C | 120 °C | Tab | UL94 V-0 | Nylon Polyamide (PA) | 5 mm | 0.197 " | Board Guide Glow Wire Compliant | All | Rectangular |

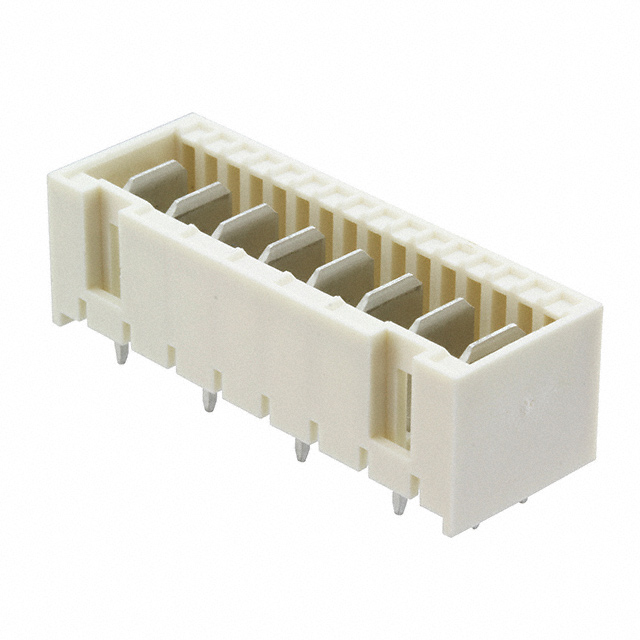

 TE Connectivity Raychem Cable Protection | Tin | 1 | Copper Alloy | 3.5 mm | 0.138 in | Shrouded - 4 Wall | Header | Through Hole | Latch Holder | 8 | 12.8 mm | 0.504 in | Natural | Board to Cable/Wire | General Purpose | Solder | 250 VAC | -40 °C | 120 °C | Tab | UL94 V-0 | Nylon Polyamide (PA) | 5 mm | 0.197 " | Board Guide Glow Wire Compliant | All | Rectangular |
 TE Connectivity Raychem Cable Protection | Tin | 1 | Copper Alloy | 3.5 mm | 0.138 in | Shrouded - 4 Wall | Header | Through Hole | Latch Holder | 7 | 12.8 mm | 0.504 in | Natural | Board to Cable/Wire | General Purpose | Solder | 250 VAC | -40 °C | 120 °C | Tab | UL94 V-0 | Nylon Polyamide (PA) | 5 mm | 0.197 " | Board Guide Glow Wire Compliant | All | Rectangular |
