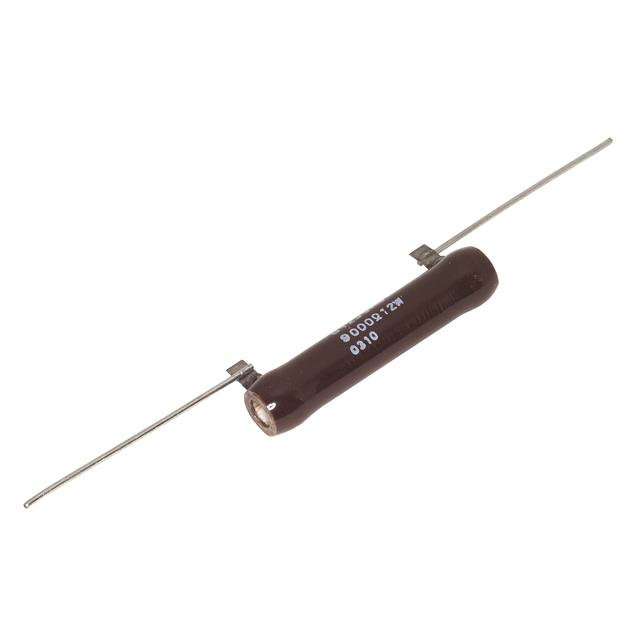

200 Series

Manufacturer: Ohmite

Catalog

RES WIREWOUND 1.75K OHM 5% 8W ±260PPM/°C VITREOUS ENAMEL AXL

Part	Resistance	Temperature Coefficient	Tolerance	Number of Terminations [custom]	Features	Power (Watts)	Supplier Device Package	Package / Case	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [x]	Size / Dimension [diameter]	Composition	Temperature Coefficient	Size / Dimension [x]	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [z]	Size / Dimension [z]	Temperature Coefficient [Max]	Temperature Coefficient [Min]
Ohmite B8J1K75E	1.75 kOhms	260 ppm/°C	5 %	2	Flame Retardant Coating Safety	8 W	Axial	Axial	25.4 mm	7.94 mm	1 in	0.313 "	Wirewound

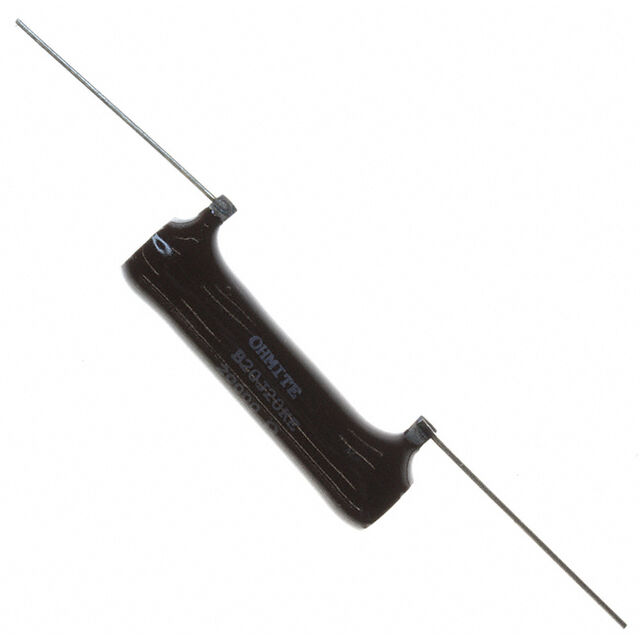

Ohmite B20J20KE	20 kOhms	260 ppm/°C	5 %	2	Flame Retardant Coating Safety	20 W	Axial	Axial	50.8 mm	11.11 mm	2 in	0.437 in	Wirewound

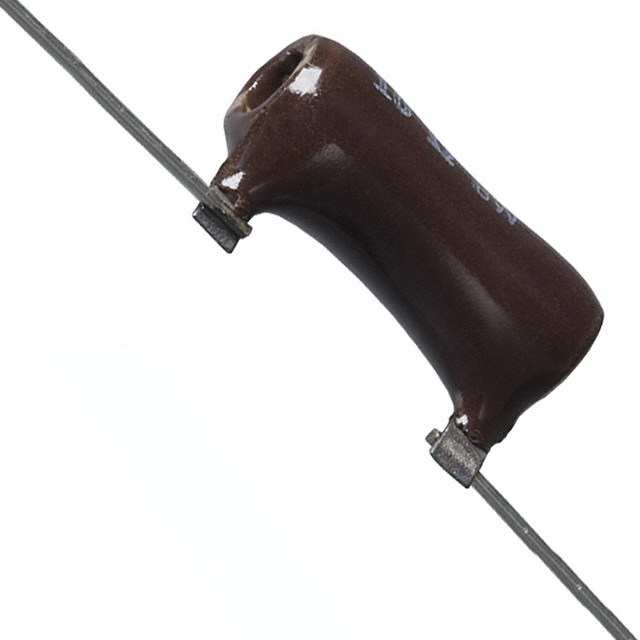

Ohmite B8J200E	200 Ohms	260 ppm/°C	5 %	2	Flame Retardant Coating Safety	8 W		Axial	25.4 mm	7.94 mm	1 in	0.313 "	Wirewound

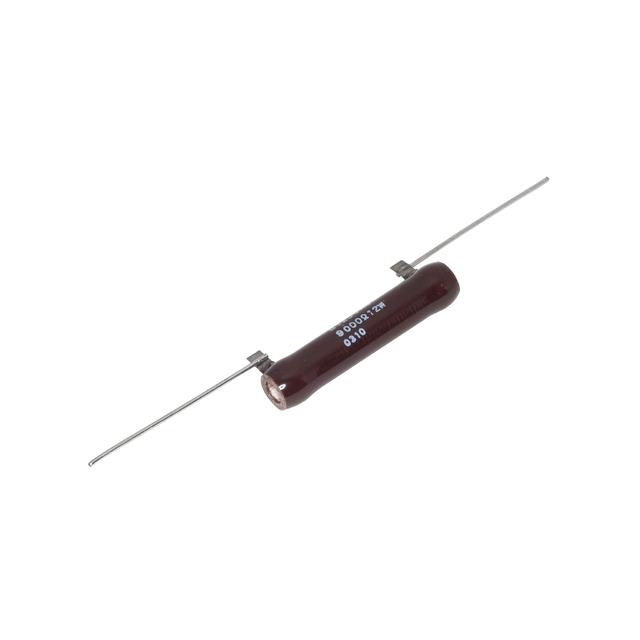

Ohmite B5J3R3E	3.3 Ohms		5 %	2	Flame Retardant Coating Safety	5.25 W	Axial	Axial	15.88 mm	6.35 mm	0.625 "	0.25 "	Wirewound	±400ppm/°C
Ohmite B12J100E	100 Ohms	260 ppm/°C	5 %	2	Flame Retardant Coating Safety	12 W		Axial		7.94 mm	1.75 L	0.313 Dia	Wirewound		44.45 mm
Ohmite B8J8K0E		260 ppm/°C	5 %	2	Flame Retardant Coating Safety	8 W	Axial	Axial	25.4 mm	7.94 mm	1 in	0.313 "	Wirewound
Ohmite B20J3K5E	3.5 kOhms	260 ppm/°C	5 %	2	Flame Retardant Coating Safety	20 W	Axial	Axial	50.8 mm	11.11 mm	2 in	0.437 in	Wirewound
Ohmite B5J16KE	16 kOhms	260 ppm/°C	5 %	2	Flame Retardant Coating Safety	5.25 W	Axial	Axial	15.88 mm	6.35 mm	0.625 "	0.25 "	Wirewound
Ohmite B5J13KE	13 kOhms	260 ppm/°C	5 %	2	Flame Retardant Coating Safety	5.25 W	Axial	Axial	15.88 mm	6.35 mm	0.625 "	0.25 "	Wirewound

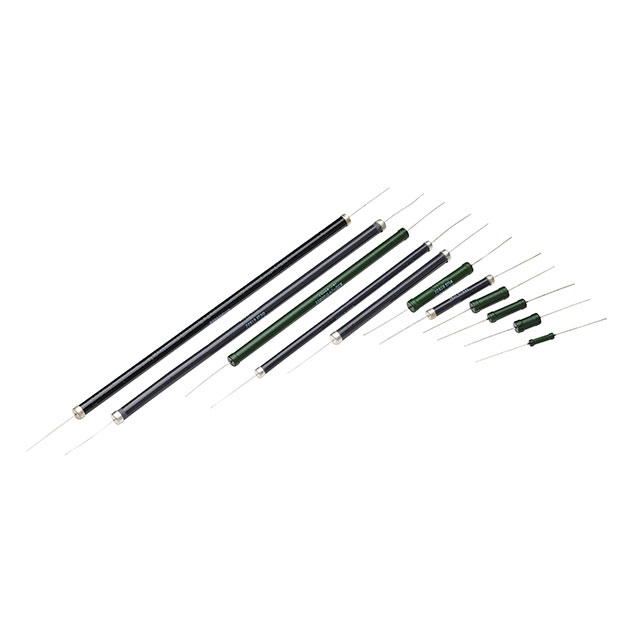

Ohmite 252AS251KDS	250 Ohms		10 %	2	Moisture Resistant Non-Inductive Pulse Withstanding	6 W	Axial	Axial		11.1 mm		0.437 in	Ceramic			-55 C	230 °C	54 mm	2.126 in	0 ppm/°C	-800 ppm/°C
