082-631 Series
Manufacturer: Amphenol RF
Beta
⌘K
HN STRAIGHT JACK BULKHEAD SOLDER
| Part | Frequency - Max [Max] | Housing Color | Features | Body Material | Includes | Mounting Feature | Center Contact Plating | Center Contact Material | Contact Termination | Impedance | Mating Cycles | Shield Termination | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Connector Style | Number of Ports | Connector Type | Body Finish | Insertion Loss | Cable Group | Voltage Rating | Mounting Type | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

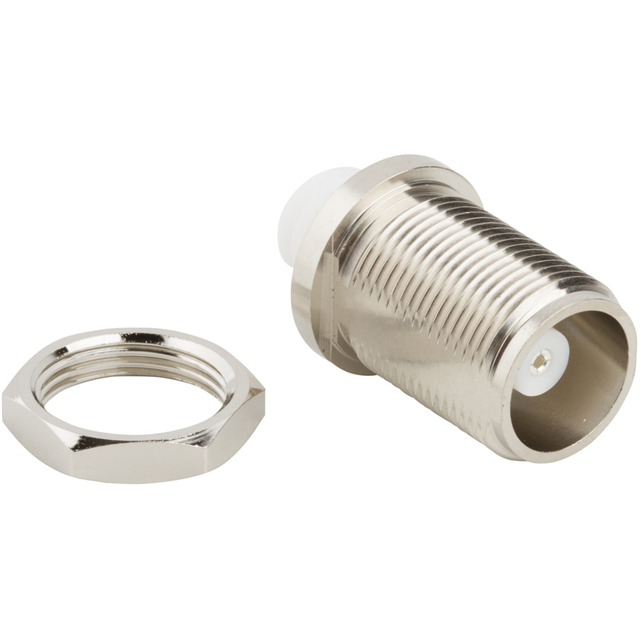

 Amphenol RF | 4 GHz | Silver | Extended Insulation | Brass | 1 Connector 1 Nut | Bulkhead - Front Side Nut | Silver | Beryllium Copper | Solder Cup | 50 Ohms | 500 | Solder | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | HN Type | 1 | Female Socket Jack | Nickel | |||||
Amphenol RF | 2.2 GHz | Silver | Brass | Bushing Connector Contact | Gold | Beryllium Copper | Crimp Solder | 50 Ohms | 500 | Crimp | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | N Type | 1 | Female Socket Jack | Nickel | 0.15 dB | 141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58 | 1500 V | Free Hanging (In-Line) | |||

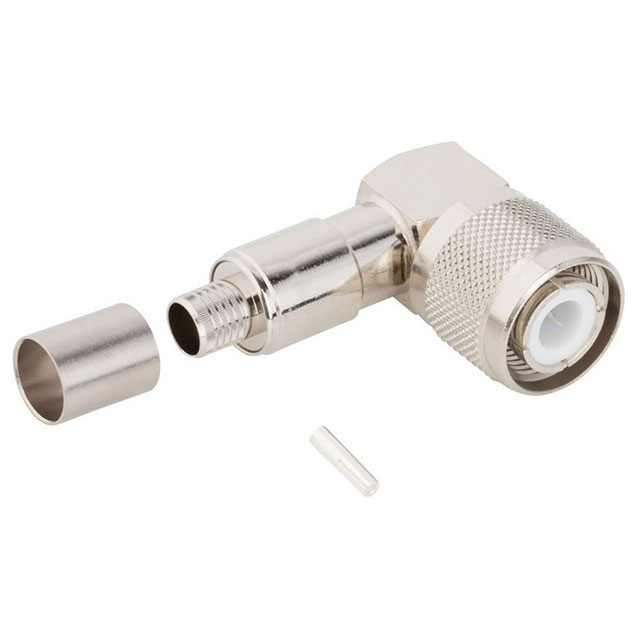

 Amphenol RF | 4 GHz | Silver | Brass | Silver | Brass | Crimp Solder | 50 Ohms | 500 | Crimp | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | HN Type | 1 | Male Pin Plug | Nickel | 213 214 225 302 393 87 8A 9 9A 9B RG-8 | 1500 V | Free Hanging (In-Line) Right Angle | Weatherproof |
