M24308/24 Series
Manufacturer: ITT Cannon, LLC
Beta
⌘K

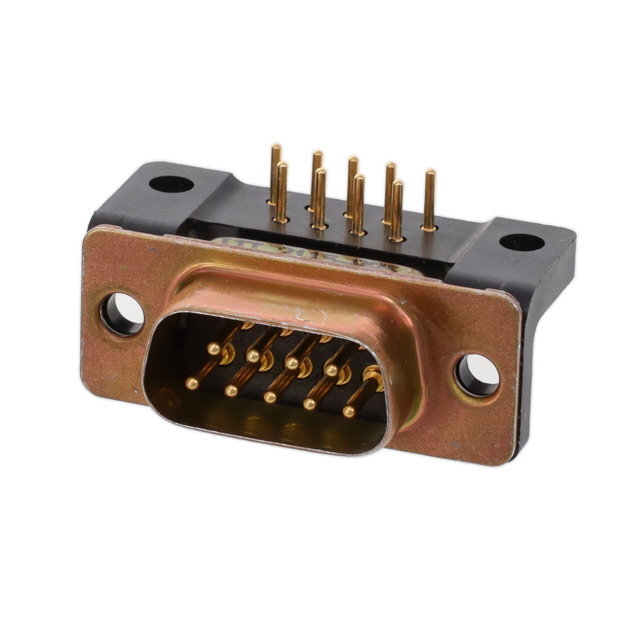

CONN D-SUB PLUG 9POS R/A SOLDER
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Flange Feature | Connector Style | Termination | Connector Type | Current Rating (Amps) | Contact Finish | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Number of Rows [custom] | Contact Finish Thickness | Contact Finish Thickness | Number of Positions | Contact Type | Features | Shell Material, Finish [custom] | Shell Material, Finish [custom] | Mounting Type | Shell Size, Connector Layout | Shell Size, Connector Layout [x] | Shell Material, Finish | Shell Size, Connector Layout |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ITT Cannon, LLC | -55 C | 150 °C | Polyester | Housing/Shell (Unthreaded) | D-Sub | Solder | Plug Male Pins | 7.5 A | Gold | 1 | DE E | 2 | 50 µin | 1.27 µm | 9 | Signal | Mounting Brackets | Yellow Chromate Plated Zinc | Steel | Panel Mount Right Angle Through Hole | ||||
ITT Cannon, LLC | -55 C | 150 °C | Polyester | Housing/Shell (Unthreaded) | D-Sub | Solder | Plug Male Pins | 7.5 A | Gold | 2 | 50 µin | 1.27 µm | 25 | Signal | Mounting Brackets | Panel Mount Right Angle Through Hole | B DB | 3 | Steel Yellow Chromate Plated Cadmium | |||||
 ITT Cannon, LLC | -55 C | 150 °C | Polyester | Housing/Shell (Unthreaded) | D-Sub | Solder | Plug Male Pins | 7.5 A | Gold | 2 | 50 µin | 1.27 µm | 37 | Signal | Mounting Brackets | Yellow Chromate Plated Zinc | Steel | Panel Mount Right Angle Through Hole | DC C | 4 | ||||

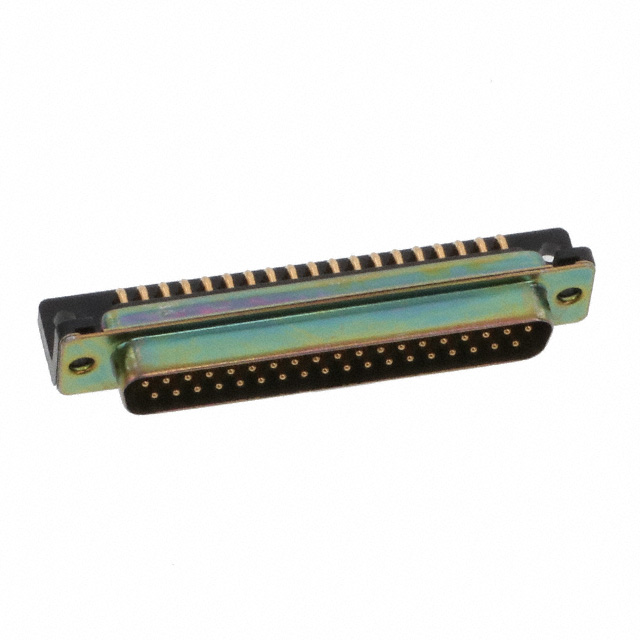

 ITT Cannon, LLC | -55 C | 150 °C | Polyester | Housing/Shell (Unthreaded) | D-Sub | Solder | Plug Male Pins | 7.5 A | Gold | 2 | 50 µin | 1.27 µm | 37 | Signal | Yellow Chromate Plated Zinc | Steel | Panel Mount Through Hole | DC C | 4 | |||||
 ITT Cannon, LLC | -55 C | 150 °C | Polyester | Housing/Shell (Unthreaded) | D-Sub | Solder | Plug Male Pins | 7.5 A | Gold | 2 | 50 µin | 1.27 µm | 25 | Signal | Yellow Chromate Plated Zinc | Steel | Panel Mount Through Hole | B DB | 3 | |||||
 ITT Cannon, LLC | -55 C | 150 °C | Polyester | Housing/Shell (Unthreaded) | D-Sub | Solder | Plug Male Pins | 7.5 A | Gold | 1 | DE E | 2 | 50 µin | 1.27 µm | 9 | Signal | Mounting Brackets | Yellow Chromate Plated Zinc | Steel | Panel Mount Right Angle Through Hole | ||||
 ITT Cannon, LLC | -55 C | 125 °C | Thermoplastic | Housing/Shell (Unthreaded) | D-Sub | Solder | Plug Male Pins | 7.5 A | Gold | 2 | 50 µin | 1.27 µm | 37 | Signal | Shielded | Panel Mount Through Hole | DC C | Steel Yellow Chromate Plated Cadmium | 4 | |||||
 ITT Cannon, LLC | -55 C | 150 °C | Polyester | Housing/Shell (Unthreaded) | D-Sub | Solder | Plug Male Pins | 7.5 A | Gold | 1 | DE E | 2 | 50 µin | 1.27 µm | 9 | Signal | Yellow Chromate Plated Zinc | Steel | Panel Mount Through Hole | |||||
 ITT Cannon, LLC | -55 C | 150 °C | Polyester | Housing/Shell (Unthreaded) | D-Sub | Solder | Plug Male Pins | 7.5 A | Gold | 1 | DE E | 2 | 50 µin | 1.27 µm | 9 | Signal | Panel Mount Through Hole | Steel Yellow Chromate Plated Cadmium | ||||||
 ITT Cannon, LLC | -55 C | 150 °C | Polyester | Housing/Shell (Unthreaded) | D-Sub | Solder | Plug Male Pins | 7.5 A | Gold | 5 | D DD | 3 | 50 µin | 1.27 µm | 50 | Signal | Panel Mount Through Hole | Steel Yellow Chromate Plated Cadmium |
