S02B-ZES Series
Manufacturer: JST Sales America Inc.
Beta
⌘K

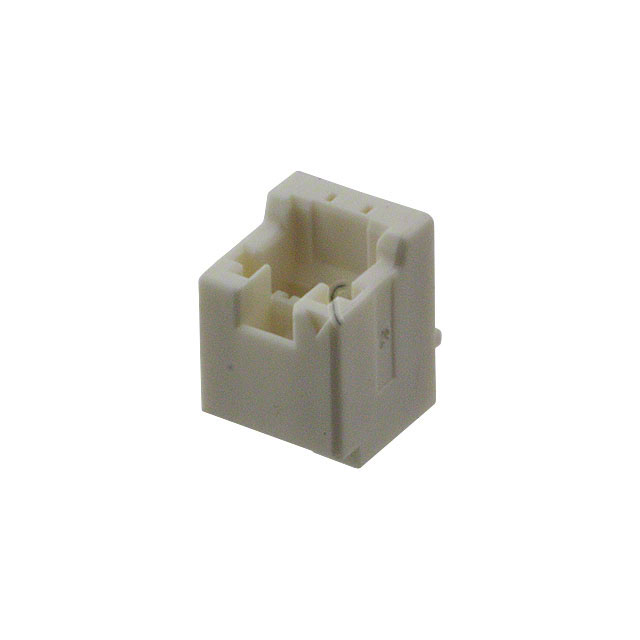

CONN HEADER R/A 2POS 1.5MM
| Part | Style | Connector Type | Contact Length - Post [x] | Contact Length - Post | Mounting Type | Number of Positions Loaded | Insulation Color | Insulation Material | Fastening Type | Termination | Current Rating (Amps) | Number of Positions | Contact Material | Contact Type | Voltage Rating | Contact Shape | Material Flammability Rating | Shrouding | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish - Post | Features | Number of Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | Board to Cable/Wire | Header | 0.134 " | 3.4 mm | Right Angle Through Hole | All | Natural | Glass Filled Nylon 6/6 Polyamide (PA66) | Locking Ramp | Kinked Pin Solder | 2 A | 2 | Copper Alloy | Outer Shroud Contact | 100 V | Rectangular | UL94 V-0 | Shrouded - 4 Wall | 85 °C | -25 °C | Tin | Board Guide | 1 |
