NPPC362 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K

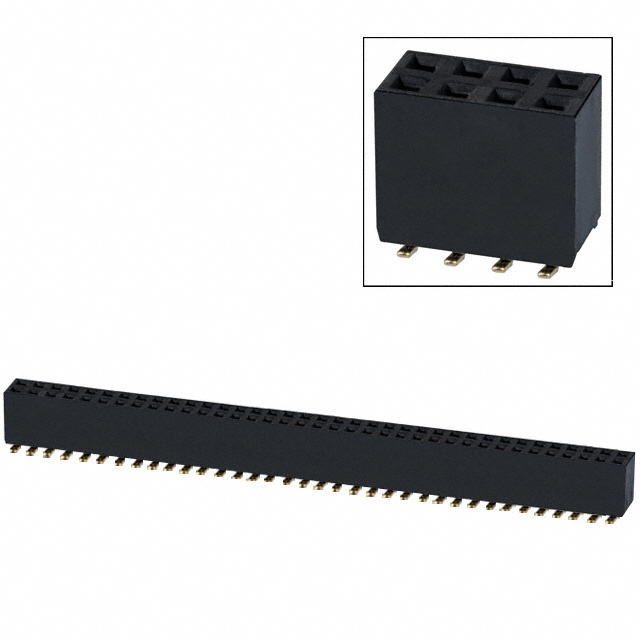

CONN HDR 72POS 0.1 GOLD SMD
| Part | Contact Finish Thickness - Post | Contact Shape | Contact Material | Insulation Material | Current Rating (Amps) | Contact Finish - Mating | Fastening Type | Operating Temperature [Max] | Operating Temperature [Min] | Connector Type | Material Flammability Rating | Contact Type | Insulation Height [z] | Insulation Height | Voltage Rating | Mounting Type | Pitch - Mating | Pitch - Mating | Contact Finish Thickness - Mating | Number of Rows [custom] | Termination | Insulation Color | Number of Positions | Contact Finish - Post | Number of Positions Loaded | Row Spacing - Mating [x] | Row Spacing - Mating [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | Flash | Square | Phosphor Bronze | Nylon 6T Polyamide (PA6T) | 3 A | Gold | Push-Pull | 125 °C | -40 C | Header | UL94 V-0 | Female Socket | 0.299 " | 7.6 mm | 250 V | Surface Mount | 0.1 " | 2.54 mm | Flash | 2 | Solder | Black | 72 | Gold | All | 0.1 in | 2.54 mm |
