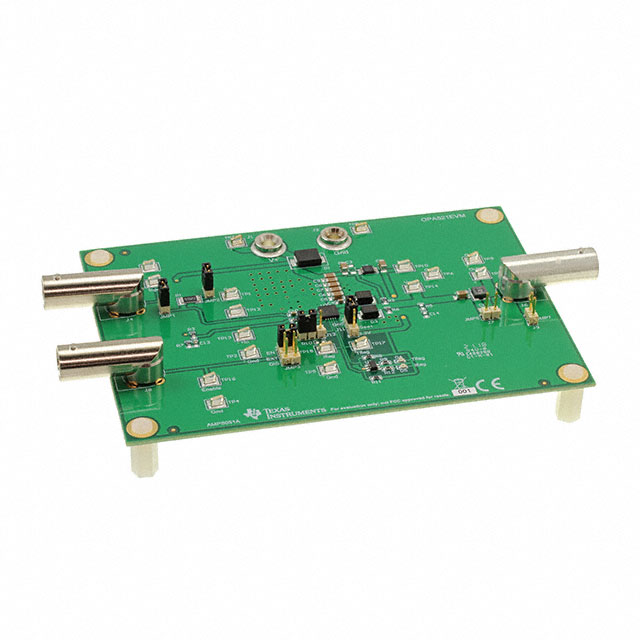

2.5A Narrowband line driver
Key Features
• Supports:CENELEC Bands A, B, C, DARIB STD-T84, FCCFSK, SFSK, and NB-OFDMConforms To:EN50065-1, -2, -3, -7FCC, Part 15ARIB STD-T84Standards:G3, PRIME, P1901.2, ITU-G.hnemLine Driver With Integrated Thermal and Overcurrent ProtectionPin-Selectable Quiescent Current Consumption:58 µA in Standby Mode (Typical)51 mA for CENELEC Bands A, B, C, D (Typical)78 mA for FCC, ARIB STD-T84 (Typical)Package: 5-mm × 5-mm 20-Pin VQFNOperating Junction Temperature Range:TA= –40°C to +125°CSupports:CENELEC Bands A, B, C, DARIB STD-T84, FCCFSK, SFSK, and NB-OFDMConforms To:EN50065-1, -2, -3, -7FCC, Part 15ARIB STD-T84Standards:G3, PRIME, P1901.2, ITU-G.hnemLine Driver With Integrated Thermal and Overcurrent ProtectionPin-Selectable Quiescent Current Consumption:58 µA in Standby Mode (Typical)51 mA for CENELEC Bands A, B, C, D (Typical)78 mA for FCC, ARIB STD-T84 (Typical)Package: 5-mm × 5-mm 20-Pin VQFNOperating Junction Temperature Range:TA= –40°C to +125°C
Description
AI
The OPA521 is a line-driver power amplifier that aligns with the power-line communications (PLC) conducted emissions requirements in CENELEC bands A, B, C, and D and ARIB STD-T84 and FCC Part 15. This device supplies up to 2.5 A on high-current, low-impedance lines with reactive loads. With optimized internal protection structure, the OPA521 uses minimal external protection components that enable cost- and space-effective systems.
The OPA521 gives a closed-loop gain of –7 V/V with 3.8-MHz of bandwidth. The monolithic integrated circuit gives high reliability in power-line communication applications.
The OPA521 line driver operates with a single supply from 7 V to 24 V. At a typical load current (IOUT= 2.5 A, maximum), a wide output swing gives a 10-VPPcapability with a nominal 24-V supply.
The device has protection against overtemperature and short-circuit conditions. Fault detection flags show current and thermal limits. A shutdown pin is available, which places the device into a low-power state that consumes 58 µA (typical).
The OPA521 is available in a surface-mount, 5-mm × 5-mm, 20-pin VQFN (RGW) package. The device operates over the extended industrial junction temperature range of –40°C to +125°C.
