K21LFC-P Series
Manufacturer: ODU
Beta
⌘K

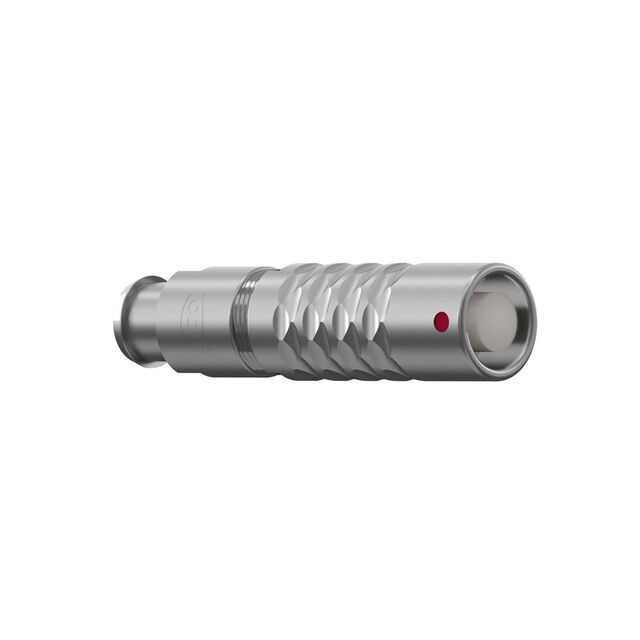

ODU MINI-SNAP RECEPT.,INLINE,SZ.
| Part | Backshell Material, Plating | Insert Material | Fastening Type | Shell Material | Color | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions | Orientation | Contact Material | Shell Size - Insert | Primary Material | Applications | Cable Opening [Min] | Cable Opening [Max] | Cable Opening [Max] | Cable Opening [Min] | Voltage Rating | Ingress Protection | Mounting Type | Features | Current Rating (Amps) | Shell Finish | Connector Type | Contact Finish - Mating | Shielding | Cable Opening |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Brass Chrome over Nickel | Polyetheretherketone (PEEK) | Push-Pull | Brass | Silver | 120 °C | -40 C | 5 | F | Brass | 1 | Metal | Industrial Medical Military Testing Equipment & Measurement | 5 mm | 6.2 mm | 0.244 " | 0.197 in | 450 V | IP50 - Dust Protected | Free Hanging (In-Line) | Backshell Strain Relief | 7.5 A | Chrome over Nickel | Receptacle Female Sockets | Gold | Unshielded | ||
Brass Chrome over Nickel | Polyetheretherketone (PEEK) | Push-Pull | Brass | Silver | 120 °C | -40 C | 14 | F | Brass | 1 | Metal | Industrial Medical Military Testing Equipment & Measurement | 5 mm | 6.2 mm | 0.244 " | 0.197 in | 300 VDC | IP50 - Dust Protected | Free Hanging (In-Line) | Backshell Strain Relief | 4 A | Chrome over Nickel | Receptacle Female Sockets | Gold | Unshielded | ||
Brass Chrome over Nickel | Polyetheretherketone (PEEK) | Push-Pull | Brass | Silver | 120 °C | -40 C | 14 | F | Brass | 1 | Metal | Industrial Medical Military Testing Equipment & Measurement | 0.205 in | 0.157 in | 300 VDC | IP50 - Dust Protected | Free Hanging (In-Line) | Backshell Strain Relief | 4 A | Chrome over Nickel | Receptacle Female Sockets | Gold | Unshielded | 4 mm 5.2 mm | |||
Brass Chrome over Nickel | Polyetheretherketone (PEEK) | Push-Pull | Brass | Silver | 120 °C | -40 C | 7 | F | Brass | 1 | Metal | Industrial Medical Military Testing Equipment & Measurement | 5 mm | 6.2 mm | 0.244 " | 0.197 in | 333 V | IP50 - Dust Protected | Free Hanging (In-Line) | Backshell Strain Relief | 7.5 A | Chrome over Nickel | Receptacle Female Sockets | Gold | Unshielded |
