L152 Series

Manufacturer: Lumileds

Catalog

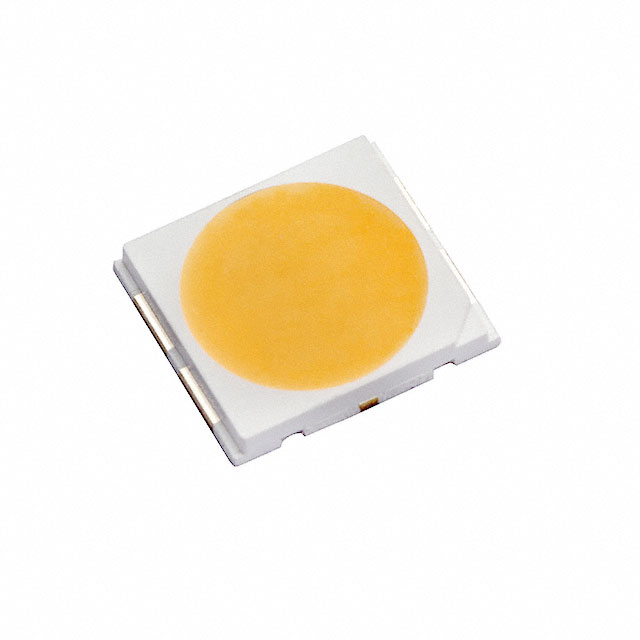

LED LUXEON WARM WHITE 3000K 4SMD

Part	Thermal Resistance of Package	Mounting Type	Current - Max [Max]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Color	CRI (Color Rendering Index)	Viewing Angle	Supplier Device Package	CCT (K)	Package / Case	Flux @ 25°C, Current - Test	Lumens/Watt @ Current - Test	Voltage - Forward (Vf) (Typ)	Height - Seated (Max) [Max]	Height - Seated (Max)	Current - Test
Lumileds L152-3080502400000	1.5 °C/W	Surface Mount	240 mA	0.205 "	5.2 mm	5.8 mm	0.228 in	Warm White	82	115 °	5258	3000 K	4-SMD No Lead Exposed Pad	500 lm	130 lm/W	24 V	0.031 in	0.8 mm
Lumileds L152-5770502400000	1.5 °C/W	Surface Mount	240 mA	0.205 "	5.2 mm	5.8 mm	0.228 in	Cool White	70	115 °	5258	5700 K	4-SMD No Lead Exposed Pad	590 lm	154 lm/W	24 V	0.031 in	0.8 mm
Lumileds L152-2790502400000	1.5 °C/W	Surface Mount	240 mA	0.205 "	5.2 mm	5.8 mm	0.228 in	Warm White	90	115 °	5258	2700 K	4-SMD No Lead Exposed Pad	450 lm	117 lm/W	24 V	0.031 in	0.8 mm
Lumileds L152-3080509600000	1.5 °C/W	Surface Mount	60 mA	0.205 "	5.2 mm	5.8 mm	0.228 in	Warm White	82	115 °	5258	3000 K	4-SMD No Lead Exposed Pad	458 lm	119 lm/W	96 V	0.031 in	0.8 mm	40 mA

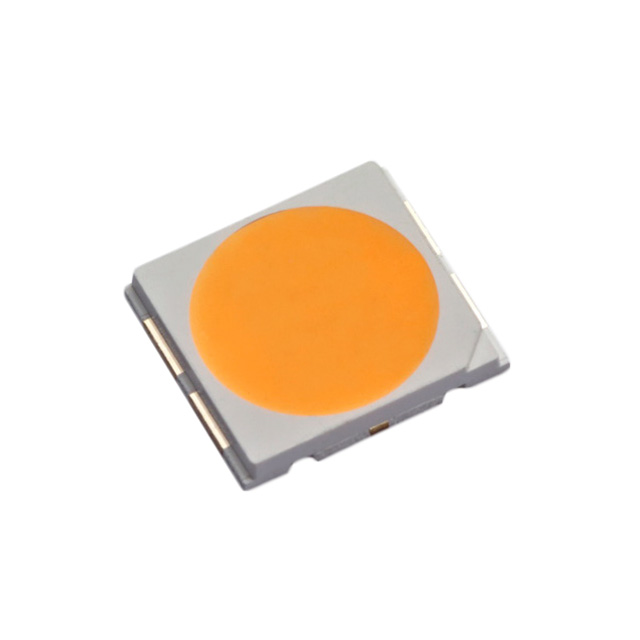

Lumileds L152-5070502400000	1.5 °C/W	Surface Mount	240 mA	0.205 "	5.2 mm	5.8 mm	0.228 in	Cool White	70	115 °	5258	5000 K	4-SMD No Lead Exposed Pad	590 lm	154 lm/W	24 V	0.031 in	0.8 mm
Lumileds L152-2780502400000	1.5 °C/W	Surface Mount	240 mA	0.205 "	5.2 mm	5.8 mm	0.228 in	Warm White	82	115 °	5258	2700 K	4-SMD No Lead Exposed Pad	485 lm	126 lm/W	24 V	0.031 in	0.8 mm
