R12446 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

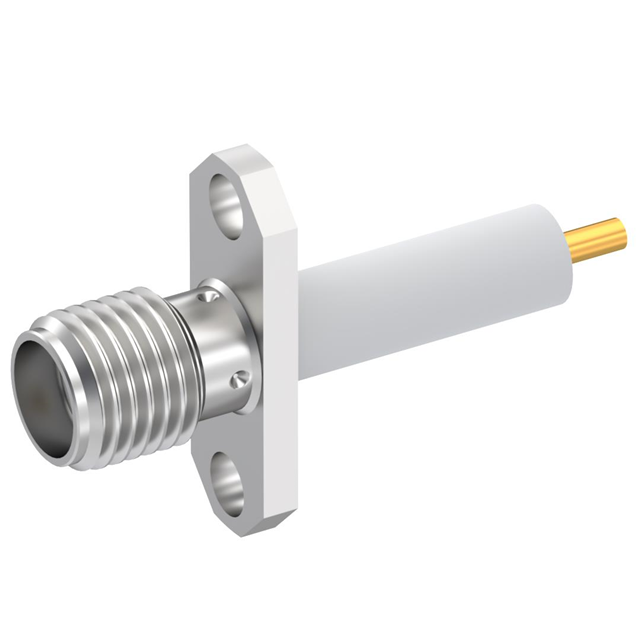

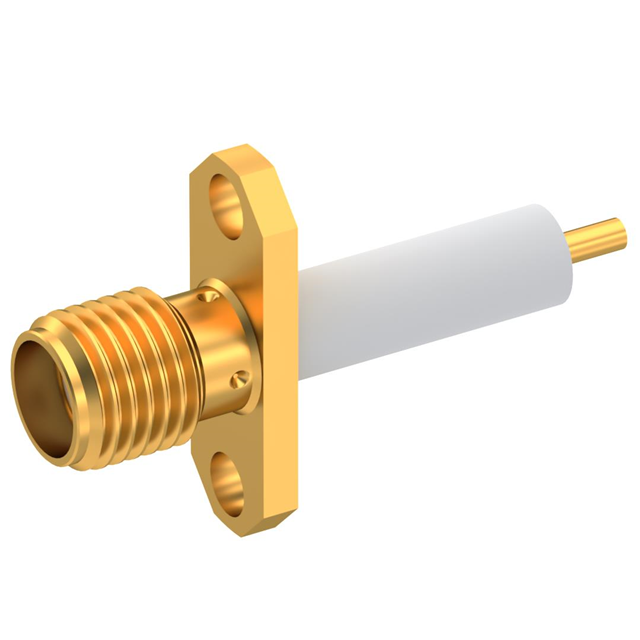

SMA / ADJUST. 2 HOLE FLANGE JACK
| Part | Body Finish | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Body Material | Center Contact Plating | Voltage Rating | Mounting Feature | Shield Termination | Connector Style | Fastening Type | Center Contact Material | Contact Termination | Number of Ports | Connector Type | Features | Mounting Type | Housing Color | Frequency - Max [Max] | Impedance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | White Bronze | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | Brass | Gold | 500 V | Flange | Solder | SMA | Threaded | Beryllium Copper | Solder | 1 | Female Socket Jack | Extended Insulation | Panel Mount Through Hole | Silver | 18 GHz | 50 Ohms |
 Radiall USA, Inc. | White Bronze | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | Brass | Gold | 500 V | Flange | Solder | SMA | Threaded | Beryllium Copper | Solder | 1 | Female Socket Jack | Extended Insulation | Panel Mount Through Hole | Silver | 18 GHz | 50 Ohms |
 Radiall USA, Inc. | Gold | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | Brass | Gold | 500 V | Flange | Solder | SMA | Threaded | Beryllium Copper | Solder | 1 | Female Socket Jack | Extended Insulation | Panel Mount Through Hole | Gold | 18 GHz | 50 Ohms |
