11SX96 Series
Manufacturer: Honeywell Sensing and Productivity Solutions
Beta
⌘K

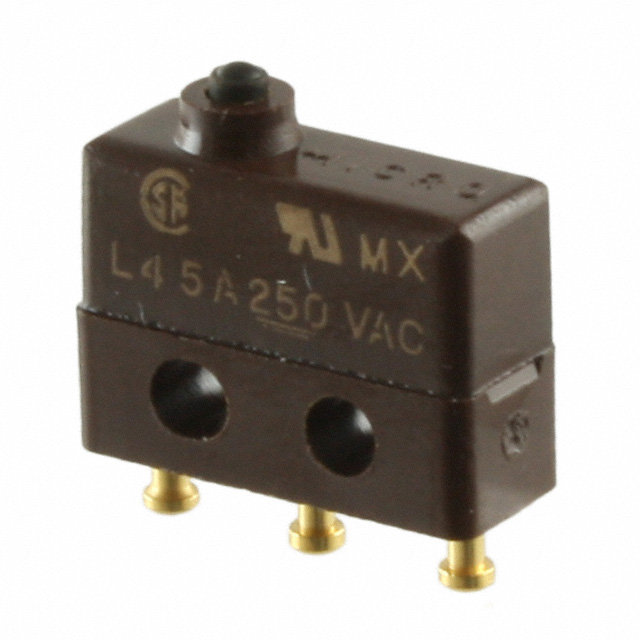

MICROSWITCH, SUBMINIATURE, PIN PLUNGER, SPDT, SOLDER, 5 A
| Part | Overtravel [custom] | Overtravel [custom] | Operating Position | Operating Position | Mechanical Life | Operating Temperature [Min] | Operating Temperature [Max] | Differential Travel | Differential Travel | Operating Force | Switch Function | Actuator Type | Current Rating (Amps) | Mounting Type | Termination Style | Circuit | Voltage Rating - DC | Release Force | Voltage Rating - AC | Pretravel | Pretravel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Honeywell Sensing and Productivity Solutions | 0.01 " | 0.25 mm | 8.13 mm | 0.32 " | 10000000 Cycles | -55 C | 125 °C | 0.001 in | 0.025 mm | 170 gf | On-Mom | Round (Pin Plunger) | 5 A | Chassis Mount | Solder Turret | SPDT | 28 V | 14 gf | 115 V | 0.02 in | 0.5 mm |
