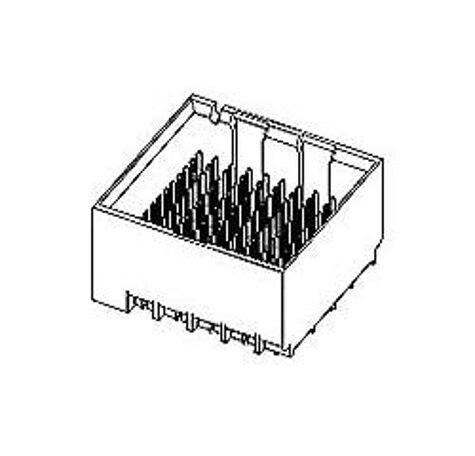

Impact 100 Ohm 3 Pair Vertical Backplane Header, Unguided, Open Endwall, 10 Columns, 90 Circuits, Pin Length 5.50mm, Plated Through Hole Dimension 0.39mm, MAPS, Lead Free
Impact 100 Ohm 3 Pair Vertical Backplane Header, Unguided, Open Endwall, 10 Columns, 90 Circuits, Pin Length 5.50mm, Plated Through Hole Dimension 0.39mm, MAPS, Lead Free
Impact 100 Ohm 3 Pair Vertical Backplane Header, Unguided, Open Endwall, 10 Columns, 90 Circuits, Pin Length 5.50mm, Plated Through Hole Dimension 0.39mm, MAPS, Lead Free
| Part | Color | Operating Temperature [Max] | Operating Temperature [Min] | Number of Columns | Termination | Contact Finish | Number of Positions | Mounting Type | Voltage Rating | Connector Type | Number of Positions Loaded | Current Rating (Amps) | Connector Style | Pitch [x] | Pitch [x] | Material Flammability Rating | Number of Rows | Contact Finish Thickness | Contact Finish Thickness | Contact Layout, Typical |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | Black | 85 °C | -55 °C | 10 | Press-Fit | Gold | 90 | Through Hole | 30 VAC | Header Male Pins | All | 75 mA | Impact | 0.075 in | 1.9 mm | UL94 V-0 | 9 | 10 Áin | 0.25 Ám | |
 Molex | Black | 85 °C | -55 °C | 6 | Press-Fit | Gold | 54 | Through Hole | Header Male Pins | All | Impact | UL94 V-0 | 9 | 10 Áin | 0.25 Ám | 18 Differential Pairs |
