185PC15 Series

Catalog

PRESSURE SENSOR, AMPLIFIED, MINIATURE, ABSOLUTE, 0 PSI, 15 PSI, 7 VDC, 16 VDC, DIP

Part	Output [Min]	Output [Max]	Maximum Pressure	Maximum Pressure	Features	Port Style	Package / Case	Mounting Type	Output Type	Port Size	Port Size	Port Size	Accuracy	Voltage - Supply [Max]	Voltage - Supply [Min]	Operating Pressure	Operating Pressure	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Termination Style	Pressure Type
Honeywell Sensing and Productivity Solutions 185PC15AT	1 V	7 V	310.26 kPa	45 PSI	Amplified Output Temperature Compensated	Barbless	6-DIP Module	Through Hole	Analog Voltage	0.2 in	5 mm	Dual Male Tube	1 %	16 V	7 V	15 PSI	103.42 kPa	85 °C	-40 C	Board Mount	PC Pin

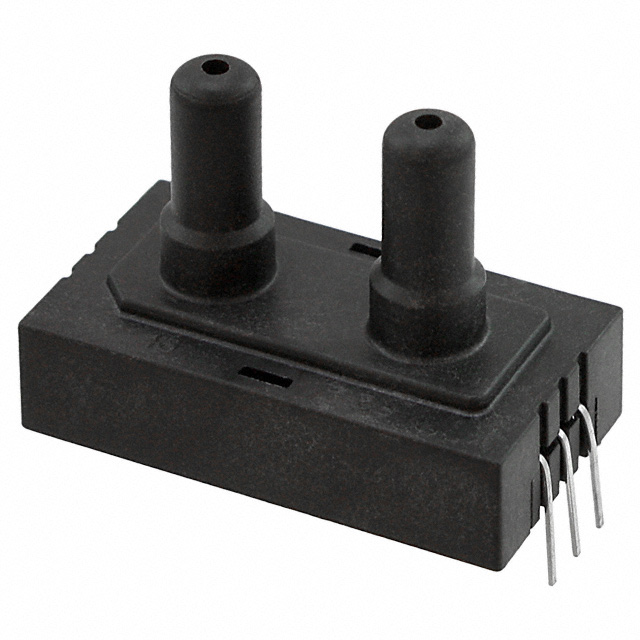

Honeywell Sensing and Productivity Solutions 185PC15DT	1 V	7 V	310.26 kPa	45 PSI	Amplified Output Temperature Compensated	Barbless	6-DIP Module	Through Hole	Analog Voltage	0.2 in	5 mm	Dual Male Tube	0.02 % FS	16 V	7 V	15 PSI	103.42 kPa	85 °C	-40 C	Board Mount	PC Pin	Differential
Honeywell Sensing and Productivity Solutions 185PC15AH	1 V	7 V	310.26 kPa	45 PSI	Amplified Output Temperature Compensated	Barbless	6-DIP Module	Through Hole	Analog Voltage	0.2 in	5 mm	Dual Male Tube	1 %	16 V	7 V	15 PSI	103.42 kPa	85 °C	-40 C	Board Mount	PC Pin
