CUS-12T Series
Manufacturer: Nidec Components Corporation
Beta
⌘K

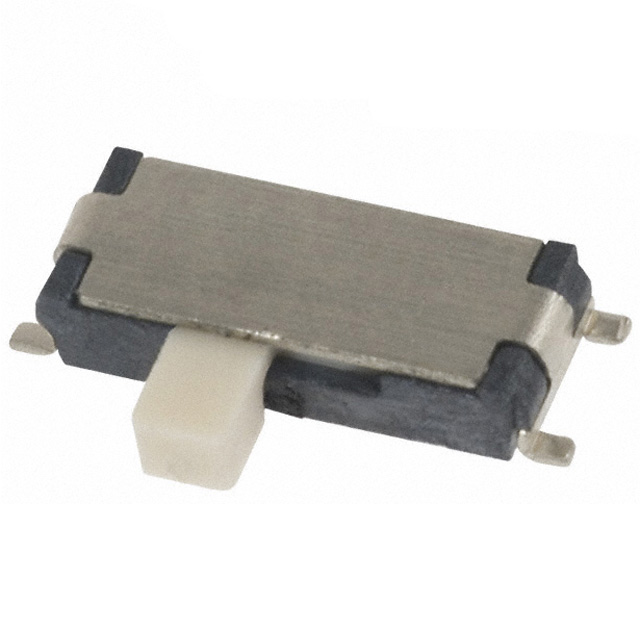

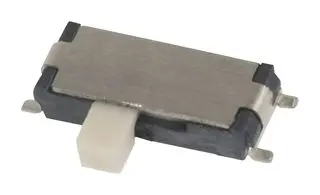

SLIDE SWITCH, SPDT, SURFACE MOUNT, CUS SERIES, 300 MA
| Part | Switch Travel | Operating Force | Electrical Life | Actuator Material | Switch Function | Mounting Type | Actuator Type | Termination Style | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Circuit | Contact Timing | Voltage Rating - DC | Actuator Length [x] | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Nidec Components Corporation | 1.5 mm | 204 gf | 10000 Cycles | Polyamide (PA) Nylon | On-On | Right Angle Surface Mount | Standard | Gull Wing | 300 mA | -20 ░C | 70 °C | Copper Alloy | SPDT | Non-Shorting (BBM) | 4 V | 1.5 mm | Gold |
