746-060 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 60POS 0.125

Part	Termination Rows [custom]	Material - Insulation	Number of Positions/Bay/Row	Color	Mounting Type	Card Type	Gender	Contact Finish	Contact Material	Pitch	Pitch	Number of Rows [custom]	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Read Out	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Card Thickness [Max]	Card Thickness [Min]	Number of Positions	Termination Rows	Number of Rows	Number of Positions/Bay/Row [custom]
EDAC Inc. 746-060-545-201	2	Polyester Thermoplastic	30	Black	Through Hole	Non Specified - Dual Edge	Female	Gold	Copper Alloy	3.18 mm	0.125 in	2	Cantilever	30 Áin	0.76 Ám	Dual	-40 C	105 ░C	Press-Fit Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm	60
EDAC Inc. 746-060-560-206	2	Polyester Thermoplastic	30	Black	Through Hole	Non Specified - Dual Edge	Female	Gold	Copper Alloy	3.18 mm	0.125 in	2	Cantilever Make Before Break	30 Áin	0.76 Ám	Dual	-40 C	105 ░C	Press-Fit	0.07 in 1.78 mm	0.054 in 1.37 mm	60
EDAC Inc. 746-060-520-501		Polyester Thermoplastic		Black	Through Hole	Non Specified - Single Edge	Female	Gold	Copper Alloy	3.18 mm	0.125 in		Cantilever	30 Áin	0.76 Ám	Single	-40 C	105 ░C	Press-Fit	0.07 in 1.78 mm	0.054 in 1.37 mm	60	1	1	60
EDAC Inc. 746-060-527-606	2	Polyester Thermoplastic	30	Black	Through Hole	Non Specified - Dual Edge	Female	Gold	Copper Alloy	3.18 mm	0.125 in	2	Cantilever	30 Áin	0.76 Ám	Dual	-40 C	105 ░C	Press-Fit	0.07 in 1.78 mm	0.054 in 1.37 mm	60

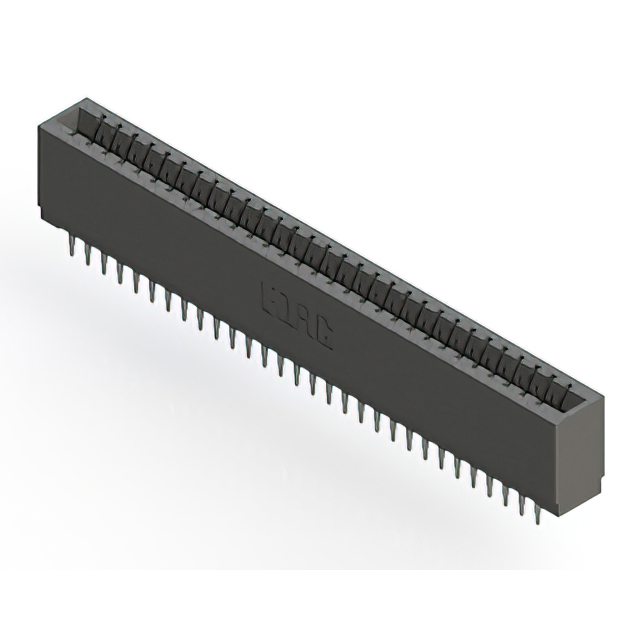

EDAC Inc. 746-060-520-601	2	Polyester Thermoplastic	30	Black	Through Hole	Non Specified - Dual Edge	Female	Gold	Copper Alloy	3.18 mm	0.125 in	2	Cantilever	30 Áin	0.76 Ám	Dual	-40 C	105 ░C	Press-Fit	0.07 in 1.78 mm	0.054 in 1.37 mm	60

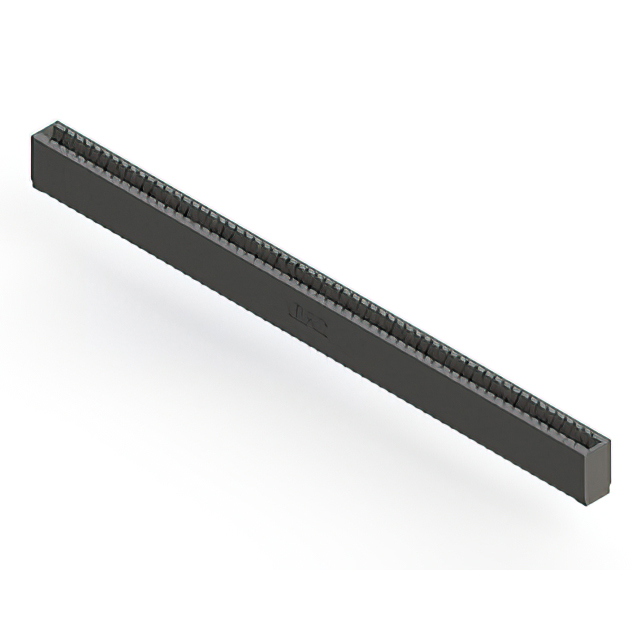

EDAC Inc. 746-060-520-101		Polyester Thermoplastic		Black	Through Hole	Non Specified - Single Edge	Female	Gold	Copper Alloy	3.18 mm	0.125 in		Cantilever	30 Áin	0.76 Ám	Single	-40 C	105 ░C	Press-Fit	0.07 in 1.78 mm	0.054 in 1.37 mm	60	1	1	60
EDAC Inc. 746-060-527-506		Polyester Thermoplastic		Black	Through Hole	Non Specified - Single Edge	Female	Gold	Copper Alloy	3.18 mm	0.125 in		Cantilever	30 Áin	0.76 Ám	Single	-40 C	105 ░C	Press-Fit	0.07 in 1.78 mm	0.054 in 1.37 mm	60	1	1	60
EDAC Inc. 746-060-545-506		Polyester Thermoplastic		Black	Through Hole	Non Specified - Single Edge	Female	Gold	Copper Alloy	3.18 mm	0.125 in		Cantilever	30 Áin	0.76 Ám	Single	-40 C	105 ░C	Press-Fit Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm	60	1	1	60
EDAC Inc. 746-060-525-206	2	Polyester Thermoplastic	30	Black	Through Hole	Non Specified - Dual Edge	Female	Gold	Copper Alloy	3.18 mm	0.125 in	2	Cantilever	30 Áin	0.76 Ám	Dual	-40 C	105 ░C	Press-Fit	0.07 in 1.78 mm	0.054 in 1.37 mm	60
EDAC Inc. 746-060-545-206	2	Polyester Thermoplastic	30	Black	Through Hole	Non Specified - Dual Edge	Female	Gold	Copper Alloy	3.18 mm	0.125 in	2	Cantilever	30 Áin	0.76 Ám	Dual	-40 C	105 ░C	Press-Fit Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm	60
