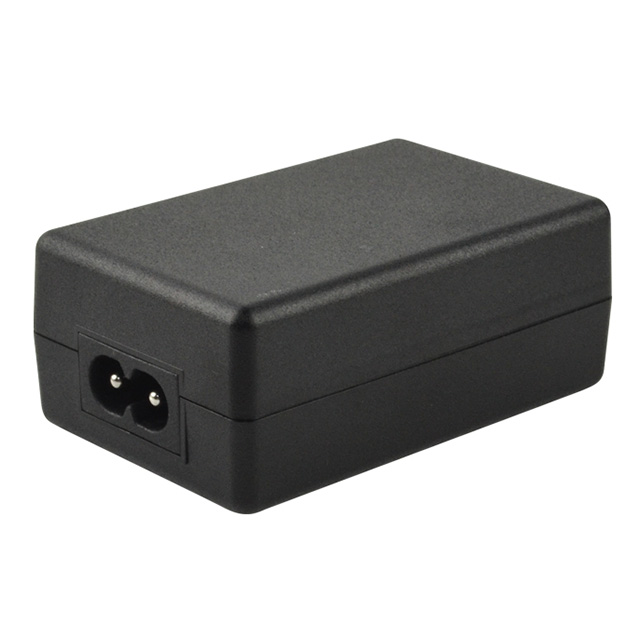

SDI12 Series

Manufacturer: CUI Inc.

Catalog

AC/DC DESKTOP ADAPTER 5.9V 12W

Part	No Load Power Consumption	Region Utilized	Voltage - Output	Form	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Output Connector	Output Connector [diameter]	Output Connector [x]	Cord Length	Cord Length	Efficiency	Power (Watts)	Voltage - Input [Max]	Voltage - Input [Min]	Input Connector	Input Type	Operating Temperature [Max]	Approval Agency	Weight	Weight	Applications	Current - Output (Max) [Max]	Standard Number	Polarization	Output Connector [custom]	Output Connector [custom]	Output Connector [custom]	Output Connector [z]
CUI Inc. SDI12-5.9-UD2-P5	100 mW	Europe	5.9 V	Desktop (Class II)	1.89 in	2.95 "	48 mm	75 mm	30 mm	1.18 in	Barrel Plug	2.1 mm 5.5 mm	9.5 mm	1.5 m	59 in	CoC Tier 2 Level VI	12 W	264 VAC	90 VAC	IEC 320-C8	Cord	40 °C	CB Scheme CSA EN FCC IEC PSE UL	110.22 g	0.243 lb	ITE (Commercial)	2 A	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1	Positive Center
CUI Inc. SDI12-18-UDC-P5R	100 mW	North America	18 V	Desktop (Class II)	1.89 in	2.95 "	48 mm	75 mm	30 mm	1.18 in	Barrel Plug R/A			1.5 m	59 in	CoC Tier 2 Level VI	12 W	264 VAC	90 VAC	IEC 320-C8	Cord	40 °C	CB Scheme CSA EN FCC IEC PSE UL	110.22 g	0.243 lb	ITE (Commercial)	660 mA	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1	Positive Center	9.5 mm	5.5 mm	2.1 mm
CUI Inc. SDI12-15-UDC-P5	100 mW	North America	15 V	Desktop (Class II)	1.89 in	2.95 "	48 mm	75 mm	30 mm	1.18 in	Barrel Plug	2.1 mm 5.5 mm	9.5 mm	1.5 m	59 in	CoC Tier 2 Level VI	12 W	264 VAC	90 VAC	IEC 320-C8	Cord	40 °C	CB Scheme CSA EN FCC IEC PSE UL	110.22 g	0.243 lb	ITE (Commercial)	0.8 A	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1	Positive Center
CUI Inc. SDI12-5-UDC-P6R	100 mW	North America	5 V	Desktop (Class II)	1.89 in	2.95 "	48 mm	75 mm	30 mm	1.18 in	Barrel Plug R/A	2.5 mm 5.5 mm		1.5 m	59 in	CoC Tier 2 Level VI	10 W	264 VAC	90 VAC	IEC 320-C8	Cord	40 °C	CB Scheme CSA EN FCC IEC PSE UL	110.22 g	0.243 lb	ITE (Commercial)	2 A	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1	Positive Center				9.5 mm
CUI Inc. SDI12-5-UD-P5	100 mW	International	5 V	Desktop (Class II)	1.89 in	2.95 "	48 mm	75 mm	30 mm	1.18 in	Barrel Plug	2.1 mm 5.5 mm	9.5 mm	1.5 m	59 in	CoC Tier 2 Level VI	10 W	264 VAC	90 VAC	IEC 320-C8	Cord (Sold Separately)	40 °C	CB Scheme CSA EN FCC IEC PSE UL	110.22 g	0.243 lb	ITE (Commercial)	2 A	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1	Positive Center
CUI Inc. SDI12-5.9-UD-P5	100 mW	International	5.9 V	Desktop (Class II)	1.89 in	2.95 "	48 mm	75 mm	30 mm	1.18 in	Barrel Plug	2.1 mm 5.5 mm	9.5 mm	1.5 m	59 in	CoC Tier 2 Level VI	12 W	264 VAC	90 VAC	IEC 320-C8	Cord (Sold Separately)	40 °C	CB Scheme CSA EN FCC IEC PSE UL	110.22 g	0.243 lb	ITE (Commercial)	2 A	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1	Positive Center
CUI Inc. SDI12-5-UD-P5R	100 mW	International	5 V	Desktop (Class II)	1.89 in	2.95 "	48 mm	75 mm	30 mm	1.18 in	Barrel Plug R/A			1.5 m	59 in	CoC Tier 2 Level VI	10 W	264 VAC	90 VAC	IEC 320-C8	Cord (Sold Separately)	40 °C	CB Scheme CSA EN FCC IEC PSE UL	110.22 g	0.243 lb	ITE (Commercial)	2 A	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1	Positive Center	9.5 mm	5.5 mm	2.1 mm
CUI Inc. SDI12-9-UD2-P5R	100 mW	Europe	9 V	Desktop (Class II)	1.89 in	2.95 "	48 mm	75 mm	30 mm	1.18 in	Barrel Plug R/A			1.5 m	59 in	CoC Tier 2 Level VI	12 W	264 VAC	90 VAC	IEC 320-C8	Cord	40 °C	CB Scheme CSA EN FCC IEC PSE UL	110.22 g	0.243 lb	ITE (Commercial)	1.33 A	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1	Positive Center	9.5 mm	5.5 mm	2.1 mm
CUI Inc. SDI12-9-UDC-P6R	100 mW	North America	9 V	Desktop (Class II)	1.89 in	2.95 "	48 mm	75 mm	30 mm	1.18 in	Barrel Plug R/A	2.5 mm 5.5 mm		1.5 m	59 in	CoC Tier 2 Level VI	12 W	264 VAC	90 VAC	IEC 320-C8	Cord	40 °C	CB Scheme CSA EN FCC IEC PSE UL	110.22 g	0.243 lb	ITE (Commercial)	1.33 A	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1	Positive Center				9.5 mm
CUI Inc. SDI12-5.9-UD2-P6R	100 mW	Europe	5.9 V	Desktop (Class II)	1.89 in	2.95 "	48 mm	75 mm	30 mm	1.18 in	Barrel Plug R/A	2.5 mm 5.5 mm		1.5 m	59 in	CoC Tier 2 Level VI	12 W	264 VAC	90 VAC	IEC 320-C8	Cord	40 °C	CB Scheme CSA EN FCC IEC PSE UL	110.22 g	0.243 lb	ITE (Commercial)	2 A	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1	Positive Center				9.5 mm
