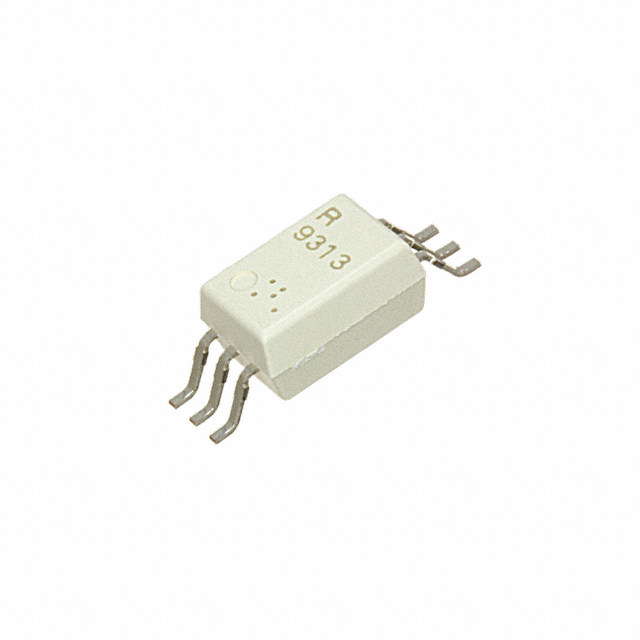

PS9324 Series

Manufacturer: Renesas Electronics Corporation

Catalog

OPTOISO 5KV OPEN COLLECTOR 6SMD

Part	Voltage - Forward (Vf) (Typ)	Inputs - Side 1/Side 2 [custom]	Common Mode Transient Immunity (Min) [Min]	Voltage - Supply [Max]	Voltage - Supply [Min]	Propagation Delay tpLH / tpHL (Max) [custom]	Propagation Delay tpLH / tpHL (Max) [custom]	Data Rate	Current - Output / Channel	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Output Type	Number of Channels [custom]	Package / Case [y]	Package / Case [y]	Package / Case	Current - DC Forward (If) (Max) [Max]	Input Type	Supplier Device Package
Renesas Electronics Corporation PS9324L-E3-AX	1.55 V	1	15 kV/µs	5.5 V	2.7 V	75 ns	75 ns	10 Mbps	25 mA	-40 C	110 °C	Surface Mount	5 ns	20 ns	Open Collector	1	6.8 mm	0.268 in	6-SOIC	25 mA	DC	6-SDIP Gull Wing
Renesas Electronics Corporation PS9324L-E3-AX	1.55 V	1	15 kV/µs	5.5 V	2.7 V	75 ns	75 ns	10 Mbps	25 mA	-40 C	110 °C	Surface Mount	5 ns	20 ns	Open Collector	1	6.8 mm	0.268 in	6-SOIC	25 mA	DC	6-SDIP Gull Wing
Renesas Electronics Corporation PS9324L2-E3-AX	1.55 V	1	15 kV/µs	5.5 V	2.7 V	75 ns	75 ns	10 Mbps	25 mA	-40 C	110 °C	Surface Mount	5 ns	20 ns	Open Collector	1	6.8 mm	0.268 in	6-SOIC	25 mA	DC	6-SDIP Gull Wing
Renesas Electronics Corporation PS9324L2-V-E3-AX	1.55 V	1	15 kV/µs	5.5 V	2.7 V	75 ns	75 ns	10 Mbps	25 mA	-40 C	110 °C	Surface Mount	5 ns	20 ns	Open Collector	1	6.8 mm	0.268 in	6-SOIC	25 mA	DC	6-SDIP Gull Wing
Renesas Electronics Corporation PS9324L2-V-AX	1.55 V	1	15 kV/µs	5.5 V	2.7 V	75 ns	75 ns	10 Mbps	25 mA	-40 C	110 °C	Surface Mount	5 ns	20 ns	Open Collector	1	6.8 mm	0.268 in	6-SOIC	25 mA	DC	6-SDIP
Renesas Electronics Corporation PS9324L-V-E3-AX	1.55 V	1	15 kV/µs	5.5 V	2.7 V	75 ns	75 ns	10 Mbps	25 mA	-40 C	110 °C	Surface Mount	5 ns	20 ns	Open Collector	1	6.8 mm	0.268 in	6-SOIC	25 mA	DC	6-SDIP Gull Wing
