PT6651 Series

Catalog

DC DC CONVERTER 3.3V 5A

Part	Voltage - Input (Max) [Max]	Voltage - Output 1	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Current - Output (Max) [Max]	Efficiency	Number of Outputs	Type	Voltage - Input (Min) [Min]	Mounting Type	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Features	Size / Dimension [z]	Size / Dimension [y]
Texas Instruments PT6651R	28 V	3.3 V	ITE (Commercial)	85 °C	-40 °C	14-SIP Module	5 A	80 %	1	Non-Isolated PoL Module	9 V	Through Hole	2.36 in	1.22 in	31 mm	59.9 mm	10.7 mm	0.42 "

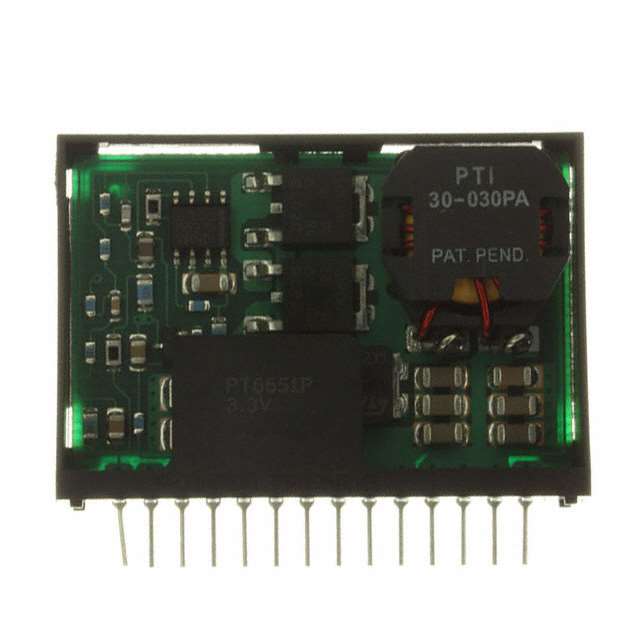

Texas Instruments PT6651P	28 V	3.3 V	ITE (Commercial)	85 °C	-40 °C	14-SIP Module	5 A	80 %	1	Non-Isolated PoL Module	9 V	Through Hole	1.71 "	1.22 in	31 mm	43.4 mm	10.7 mm	0.42 "
Texas Instruments PT6651B	28 V	3.3 V	ITE (Commercial)	85 °C	-40 °C	14-SMD Module	5 A	80 %	1	Non-Isolated PoL Module	9 V	Surface Mount	2.36 in	0.42 in	10.7 mm	59.9 mm	31 mm	1.22 "	Remote On/Off
Texas Instruments PT6651E	28 V	3.3 V	ITE (Commercial)	85 °C	-40 °C	14-SMD Module	5 A	80 %	1	Non-Isolated PoL Module	9 V	Surface Mount	1.71 "	0.42 in		43.4 mm		1.22 "	Remote On/Off	10.7 mm	31 mm
