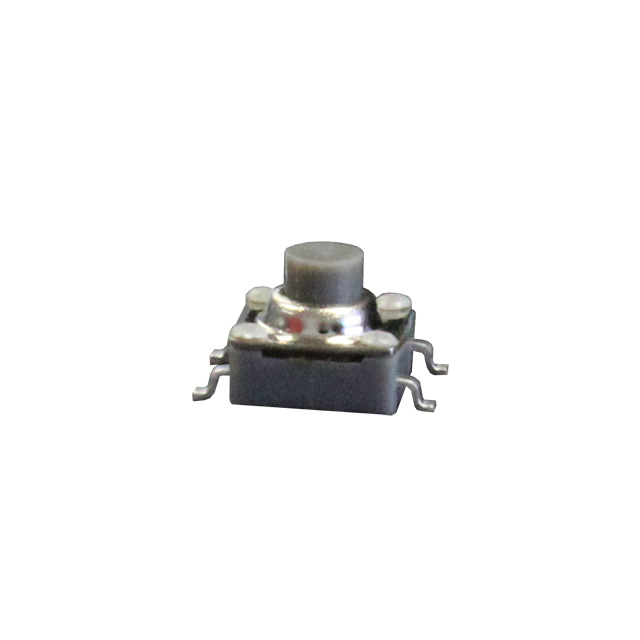

STR5.0 Series
Manufacturer: CIT Relay and Switch
Beta
⌘K

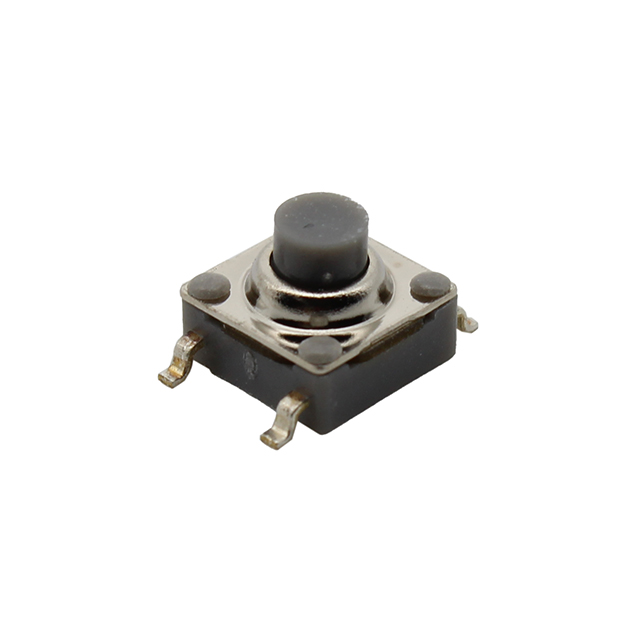

SWITCH TACTILE SPST-NO 0.05A 48V
| Part | Switch Travel | Actuator Material | Ingress Protection | Contact Rating @ Voltage | Switch Function | Actuator Height off PCB, Vertical [z] | Actuator Orientation | Operating Temperature [Max] | Operating Temperature [Min] | Outline [x] | Outline [y] | Circuit | Mounting Type | Actuator Type | Termination Style | Operating Force | Illumination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CIT Relay and Switch | 0.28 mm | Polyamide (PA6T) Nylon 6T | IP67 - Dust Tight Waterproof | 0.05 A 48 VDC | Off-Mom | 5 mm | Top Actuated | 85 °C | -40 C | 6.2 mm | 6.2 mm | SPST-NO | Surface Mount | Standard | Gull Wing | 260 gf | Non-Illuminated |
 CIT Relay and Switch | 0.28 mm | Polyamide (PA6T) Nylon 6T | IP67 - Dust Tight Waterproof | 0.05 A 48 VDC | Off-Mom | 5 mm | Top Actuated | 85 °C | -40 C | 6.2 mm | 6.2 mm | SPST-NO | Surface Mount | Standard | Gull Wing | 160 gf | Non-Illuminated |
