TPS55160 Series
Manufacturer: Texas Instruments
Beta
⌘K
3.6-V TO 36-V, 1-A OUTPUT, 2-MHZ, SYNCHRONOUS STEP-UP AND STEP-DOWN CONVERTER
| Part | Number of Outputs | Output Configuration | Topology | Grade | Voltage - Input (Max) [Max] | Voltage - Output (Min/Fixed) | Synchronous Rectifier | Function | Frequency - Switching | Qualification | Voltage - Output (Max) [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case | Package / Case | Voltage - Input (Min) [Min] | Mounting Type | Current - Output | Output Type | Supplier Device Package | Supplied Contents | Outputs and Type | Outputs and Type | Board Type | Regulator Topology | Main Purpose | Utilized IC / Part | Contents | Voltage - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments | 1 | Positive | Buck-Boost | Automotive | 36 V | 5.7 V | Step-Up/Step-Down | 2 MHz | AEC-Q100 | 9 V | 125 °C | -40 °C | 0.173 " 4.4 mm | 20-PowerTSSOP | 2 V | Surface Mount | 1 A | Adjustable | 20-HTSSOP | ||||||||||

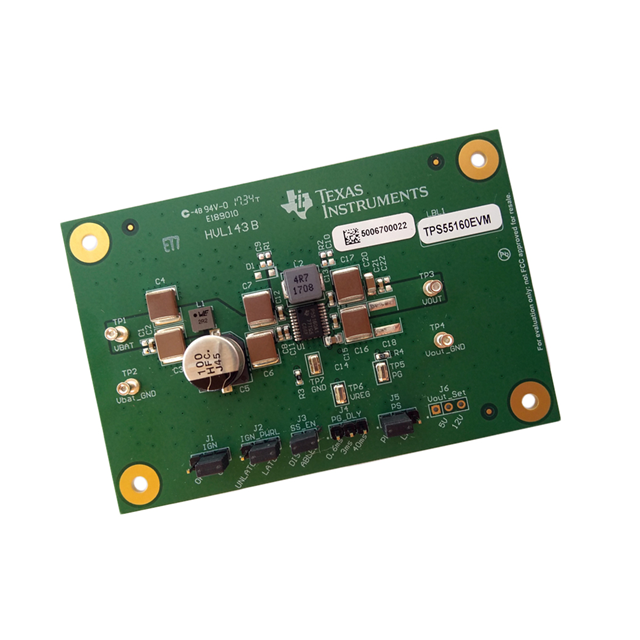

 Texas Instruments | 2 MHz | 1 A | Board(s) | 1 | 1 Non-Isolated Output Non-Isolated | Fully Populated | Buck-Boost | DC/DC Step Up or Down | TPS55160-Q1 | Board(s) | 8 V | ||||||||||||||||||
 Texas Instruments | 1 | Positive | Buck-Boost | Automotive | 36 V | 5.7 V | Step-Up/Step-Down | 2 MHz | AEC-Q100 | 9 V | 125 °C | -40 °C | 0.173 " 4.4 mm | 20-PowerTSSOP | 2 V | Surface Mount | 1 A | Adjustable | 20-HTSSOP |
