2564080 Series
Manufacturer: NorComp Inc.
Beta
⌘K

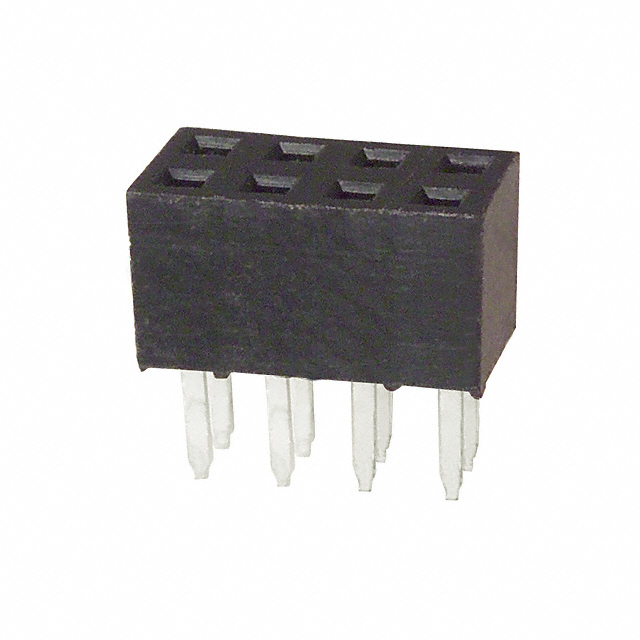

25640801RP2 ROHS COMPLIANT: YES
| Part | Contact Shape | Contact Material | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Pitch - Mating | Pitch - Mating | Material Flammability Rating | Mounting Type | Number of Rows [custom] | Termination | Contact Finish Thickness - Mating | Contact Length - Post | Contact Length - Post | Fastening Type | Insulation Color | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish - Mating | Contact Type | Row Spacing - Mating | Row Spacing - Mating | Number of Positions | Connector Type | Number of Positions Loaded | Insulation Height | Insulation Height | Contact Finish - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NorComp Inc. | Square | Phosphor Bronze | 2.54 µm | 100 µin | 0.079 " | 2 mm | UL94 V-0 | Through Hole | 2 | Solder | Flash | 0.118 in | 3 mm | Push-Pull | Black | -40 C | 105 ░C | Gold | Female Socket | 2 mm | 0.079 in | 8 | Receptacle | All | 0.177 in | 4.5 mm | Tin |
