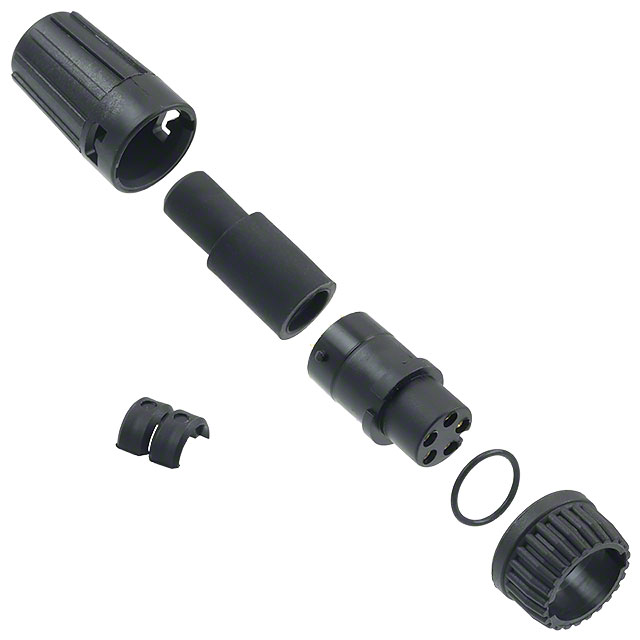

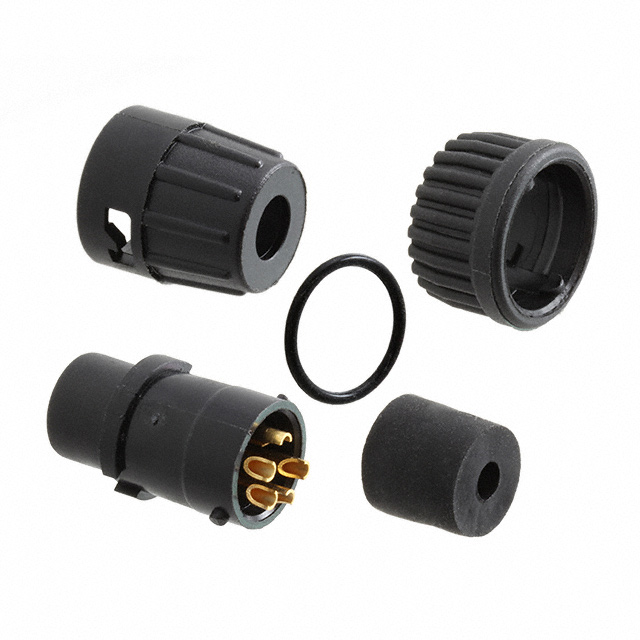

6382-5SG Series
Manufacturer: Conxall/Switchcraft
Catalog
CONN PLUG FMALE 5P GOLD SLDR CUP
| Part | Shielding | Ingress Protection | Current Rating (Amps) | Contact Material | Fastening Type | Contact Finish - Mating | Voltage Rating | Mounting Type | Cable Opening [custom] | Cable Opening [custom] | Features | Applications | Backshell Material, Plating | Color | Primary Material | Connector Type | Operating Temperature [Min] | Operating Temperature [Max] | Orientation | Cable Opening [diameter] | Cable Opening [diameter] | Cable Opening [diameter] | Cable Opening [Min] [custom] | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Cable Opening [Max] [custom] | Cable Opening [Max] [diameter] | Cable Opening [Min] [diameter] | Cable Opening [Min] [diameter] | Cable Opening [Max] [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Conxall/Switchcraft | Unshielded | Weathertight | Varies by Wire Gauge | Brass | Bayonet Lock | Gold | 600 V | Free Hanging (In-Line) | 0.15 in 0.17 in | 3.81 mm 4.32 mm | Backshell | Automotive Communication Systems Instrumentation | Nylon Polyamide (PA) | Black | Plastic | Female Sockets Plug | -40 °C | 115 °C | Keyed | |||||||||||
 Conxall/Switchcraft | Unshielded | Weathertight | Varies by Wire Gauge | Brass | Bayonet Lock | Gold | 600 V | Free Hanging (In-Line) | 0.13 in 0.15 in | 3.3 mm 3.81 mm | Backshell | Automotive Communication Systems Instrumentation | Nylon Polyamide (PA) | Black | Plastic | Female Sockets Plug | -40 °C | 115 °C | Keyed | |||||||||||
 Conxall/Switchcraft | Unshielded | Weathertight | Varies by Wire Gauge | Brass | Bayonet Lock | Gold | 600 V | Free Hanging (In-Line) | Backshell | Automotive Communication Systems Instrumentation | Nylon Polyamide (PA) | Black | Plastic | Female Sockets Plug | -40 °C | 115 °C | Keyed | 2.29 mm | 0.09 in 0.14 in | 3.56 mm | ||||||||||
Conxall/Switchcraft | Unshielded | Weathertight | Varies by Wire Gauge | Brass | Bayonet Lock | Gold | 600 V | Free Hanging (In-Line) | Backshell | Automotive Communication Systems Instrumentation | Nylon Polyamide (PA) | Black | Plastic | Female Sockets Plug | -40 °C | 115 °C | Keyed | 4.57 mm | 0.18 in | 0.2 in | 5.08 mm | |||||||||
Conxall/Switchcraft | Unshielded | Weathertight | Varies by Wire Gauge | Brass | Bayonet Lock | Gold | 600 V | Free Hanging (In-Line) | Backshell | Automotive Communication Systems Instrumentation | Nylon Polyamide (PA) | Black | Plastic | Female Sockets Plug | -40 °C | 115 °C | Keyed | 0.21 in | 0.19 in | 4.83 mm | 5.33 mm | |||||||||
Conxall/Switchcraft | Unshielded | Weathertight | Varies by Wire Gauge | Brass | Bayonet Lock | Gold | 600 V | Free Hanging (In-Line) | Backshell | Automotive Communication Systems Instrumentation | Nylon Polyamide (PA) | Black | Plastic | Female Sockets Plug | -40 °C | 115 °C | Keyed | 0.25 in | 0.22 in | 5.59 mm | 6.35 mm | |||||||||
Conxall/Switchcraft | Unshielded | Weathertight | Varies by Wire Gauge | Brass | Bayonet Lock | Gold | 600 V | Free Hanging (In-Line) | Backshell | Automotive Communication Systems Instrumentation | Nylon Polyamide (PA) | Black | Plastic | Female Sockets Plug | -40 °C | 115 °C | Keyed | 4.06 mm | 0.16 in | 0.18 in | 4.57 mm |
