213228 Series

1.50mm Pitch CLIK-Mate Wire-to-Board PCB Receptacle, Dual Row, Surface Mount, Right-Angle, 0.76µm Gold (Au) Plating, 24 Circuits, Black

Manufacturer: Molex

Catalog

1.50mm Pitch CLIK-Mate Wire-to-Board PCB Receptacle, Dual Row, Surface Mount, Right-Angle, 0.76µm Gold (Au) Plating, 24 Circuits, Black

Part	Material Flammability Rating	Voltage Rating	Fastening Type	Insulation Material	Contact Material	Connector Type	Insulation Height	Insulation Height	Features	Termination	Mounting Type	Number of Rows	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions	Insulation Color	Current Rating (Amps)	Contact Finish - Post	Style	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Type	Contact Finish - Mating	Number of Positions
Molex 2132281811	UL94 V-0	100 VAC	Latch Holder	Nylon Polyamide (PA)	Copper Alloy	Receptacle	0.362 in	9.2 mm	Solder Retention	Solder	Surface Mount Right Angle	2	3.94 µin	0.1 µm	18	Black	Varies by Wire Gauge	Tin	Board to Cable/Wire	All	-40 °C	105 ░C	1 çm	39.4 çin	Forked	Gold

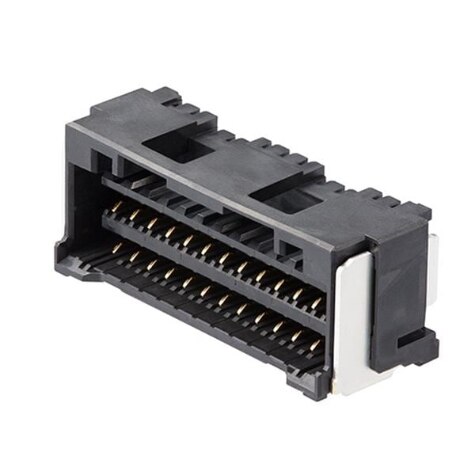

Molex 2132281231	UL94 V-0	100 VAC	Latch Holder	Nylon Polyamide (PA)	Copper Alloy	Receptacle	0.362 in	9.2 mm	Solder Retention	Solder	Surface Mount Right Angle	2	15 µin	0.38 µm	12	Black	Varies by Wire Gauge	Tin	Board to Cable/Wire	All	-40 °C	105 ░C	1 çm	39.4 çin	Forked	Gold

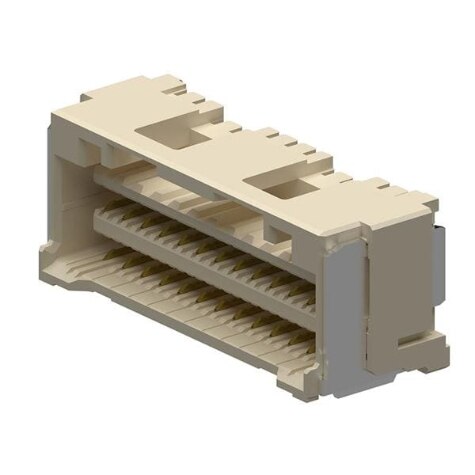

Molex 2132281410	UL94 V-0	100 VAC	Latch Holder	Nylon Polyamide (PA)	Copper Alloy	Receptacle	0.362 in	9.2 mm	Solder Retention	Solder	Surface Mount Right Angle	2	3.94 µin	0.1 µm	14	Natural	Varies by Wire Gauge	Tin	Board to Cable/Wire	All	-40 °C	105 ░C	1 çm	39.4 çin	Forked	Gold
Molex 2132281070	UL94 V-0	100 VAC	Latch Holder	Nylon Polyamide (PA)	Copper Alloy	Receptacle	0.362 in	9.2 mm	Solder Retention	Solder	Surface Mount Right Angle	2	30 Áin	0.76 Ám	10	Natural	Varies by Wire Gauge	Tin	Board to Cable/Wire	All	-40 °C	105 ░C	1 çm	39.4 çin	Forked	Gold

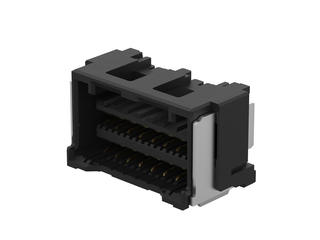

Molex 2132281671	UL94 V-0	100 VAC	Latch Holder	Nylon Polyamide (PA)	Copper Alloy	Receptacle	0.362 in	9.2 mm	Solder Retention	Solder	Surface Mount Right Angle	2	30 Áin	0.76 Ám		Black	Varies by Wire Gauge	Tin	Board to Cable/Wire	All	-40 °C	105 ░C	1 çm	39.4 çin	Forked	Gold	16

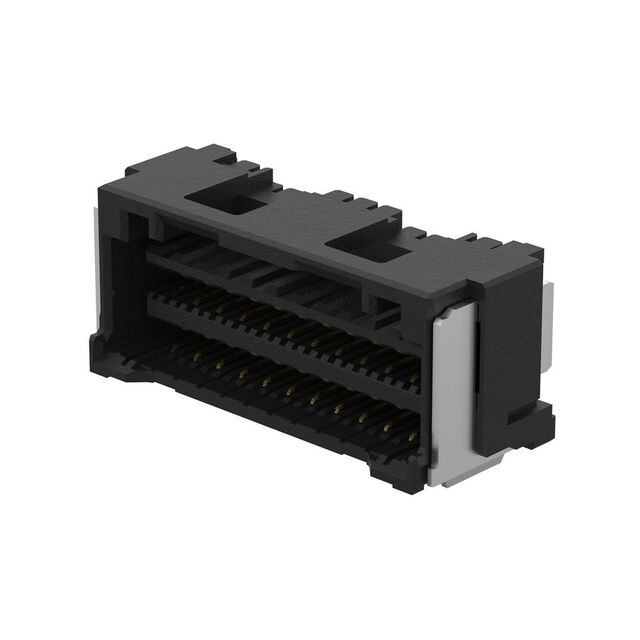

Molex 2132282431	UL94 V-0	100 VAC	Latch Holder	Nylon Polyamide (PA)	Copper Alloy	Receptacle	0.362 in	9.2 mm	Solder Retention	Solder	Surface Mount Right Angle	2	15 µin	0.38 µm	24	Black	Varies by Wire Gauge	Tin	Board to Cable/Wire	All	-40 °C	105 ░C	1 çm	39.4 çin	Forked	Gold

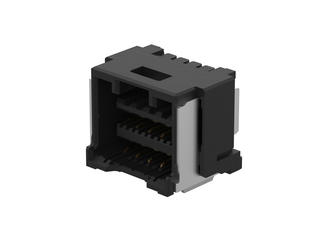

Molex 2132281011	UL94 V-0	100 VAC	Latch Holder	Nylon Polyamide (PA)	Copper Alloy	Receptacle	0.362 in	9.2 mm	Solder Retention	Solder	Surface Mount Right Angle	2	3.94 µin	0.1 µm	10	Black	Varies by Wire Gauge	Tin	Board to Cable/Wire	All	-40 °C	105 ░C	1 çm	39.4 çin	Forked	Gold
Molex 2132280830	UL94 V-0	100 VAC	Latch Holder	Nylon Polyamide (PA)	Copper Alloy	Receptacle	0.362 in	9.2 mm	Solder Retention	Solder	Surface Mount Right Angle	2	15 µin	0.38 µm	8	Natural	Varies by Wire Gauge	Tin	Board to Cable/Wire	All	-40 °C	105 ░C	1 çm	39.4 çin	Forked	Gold

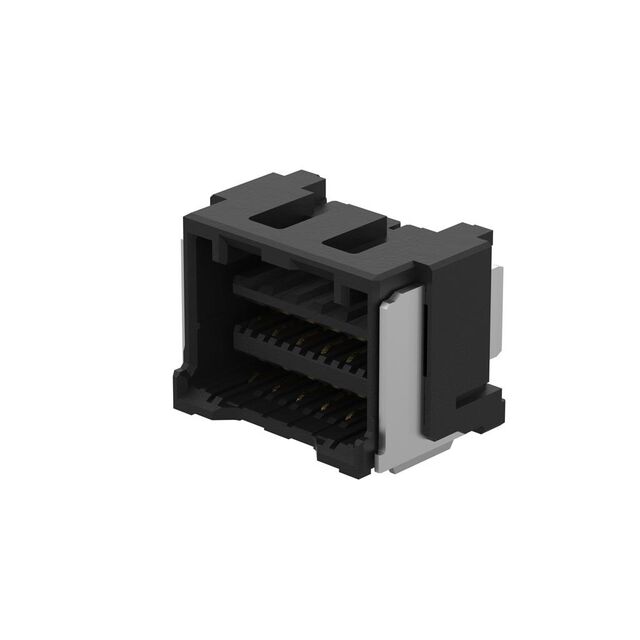

Molex 2132281271	UL94 V-0	100 VAC	Latch Holder	Nylon Polyamide (PA)	Copper Alloy	Receptacle	0.362 in	9.2 mm	Solder Retention	Solder	Surface Mount Right Angle	2	30 Áin	0.76 Ám	12	Black	Varies by Wire Gauge	Tin	Board to Cable/Wire	All	-40 °C	105 ░C	1 çm	39.4 çin	Forked	Gold
Molex 2132282070	UL94 V-0	100 VAC	Latch Holder	Nylon Polyamide (PA)	Copper Alloy	Receptacle	0.362 in	9.2 mm	Solder Retention	Solder	Surface Mount Right Angle	2	30 Áin	0.76 Ám	20	Natural	Varies by Wire Gauge	Tin	Board to Cable/Wire	All	-40 °C	105 ░C	1 çm	39.4 çin	Forked	Gold
