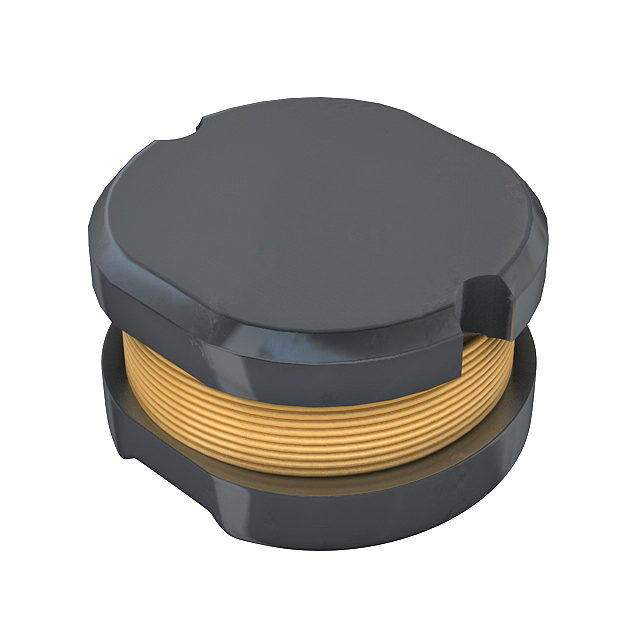

SDR0302 Series
Manufacturer: Bourns Inc.
Beta
⌘K
POWER INDUCTOR (SMD), 3.3 ΜH, 1.4 A, UNSHIELDED, 1.6 A, SDR0302 SERIES
| Part | Frequency - Self Resonant | Current - Saturation (Isat) | Inductance | DC Resistance (DCR) | Current Rating (Amps) | Shielding | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Type | Inductance Frequency - Test | Q @ Freq [custom] | Q @ Freq [custom] | Material - Core | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Package / Case | Tolerance | Q @ Freq | DC Resistance (DCR) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 68 MHz | 1.6 A | 3.3 µH | 110 mOhm | 1.4 A | Unshielded | 0.118 " | 0.11 " | 3 mm | 2.8 mm | Drum Core Wirewound | 1 kHz | 23 | 7.96 MHz | Ferrite | 125 °C | -40 C | Surface Mount | Nonstandard | 20 % | ||
 Bourns Inc. | 7 MHz | 170 mA | 270 µH | 150 mA | Unshielded | 0.118 " | 0.11 " | 3 mm | 2.8 mm | Drum Core Wirewound | 1 kHz | Ferrite | 125 °C | -40 C | Surface Mount | Nonstandard | 10 % | 45 796 kHz | 8.6 Ohm | |||
 Bourns Inc. | 18 MHz | 500 mA | 33 µH | 0.42 A | Unshielded | 0.118 " | 0.11 " | 3 mm | 2.8 mm | Drum Core Wirewound | 1 kHz | Ferrite | 125 °C | -40 C | Surface Mount | Nonstandard | 10 % | 2.52 MHz 20 | 850 mOhm | |||
Bourns Inc. | 4 MHz | 100 mA | 820 µH | 80 mA | Unshielded | 0.118 " | 0.11 " | 3 mm | 2.8 mm | Drum Core Wirewound | 1 kHz | Ferrite | 125 °C | -40 C | Surface Mount | Nonstandard | 10 % | 45 796 kHz | 22.5 Ohm | |||
 Bourns Inc. | 35 MHz | 1.05 A | 8.2 µH | 200 mOhm | 900 mA | Unshielded | 0.118 " | 0.11 " | 3 mm | 2.8 mm | Drum Core Wirewound | 1 kHz | Ferrite | 125 °C | -40 C | Surface Mount | Nonstandard | 20 % | 7.96 MHz 16 | |||
Bourns Inc. | 125 MHz | 2.7 A | 1 µH | 2.1 A | Unshielded | 0.118 " | 0.11 " | 3 mm | 2.8 mm | Drum Core Wirewound | 1 kHz | 20 | 7.96 MHz | Ferrite | 125 °C | -40 C | Surface Mount | Nonstandard | 20 % | |||
Bourns Inc. | 100 MHz | 2.5 A | 1.2 µH | 70 mOhm | 2 A | Unshielded | 0.118 " | 0.11 " | 3 mm | 2.8 mm | Drum Core Wirewound | 1 kHz | Ferrite | 125 °C | -40 C | Surface Mount | Nonstandard | 20 % | 7.96 MHz 22 | |||
Bourns Inc. | 72 MHz | 1.7 A | 2.7 µH | 100 mOhm | 1.5 A | Unshielded | 0.118 " | 0.11 " | 3 mm | 2.8 mm | Drum Core Wirewound | 1 kHz | Ferrite | 125 °C | -40 C | Surface Mount | Nonstandard | 20 % | 7.96 MHz 22 | |||
 Bourns Inc. | 95 MHz | 2.3 A | 1.5 µH | 70 mOhm | 1.9 A | Unshielded | 0.118 " | 0.11 " | 3 mm | 2.8 mm | Drum Core Wirewound | 1 kHz | 23 | 7.96 MHz | Ferrite | 125 °C | -40 C | Surface Mount | Nonstandard | 20 % | ||
Bourns Inc. | 85 MHz | 2 A | 1.8 µH | 1.8 A | Unshielded | 0.118 " | 0.11 " | 3 mm | 2.8 mm | Drum Core Wirewound | 1 kHz | 23 | 7.96 MHz | Ferrite | 125 °C | -40 C | Surface Mount | Nonstandard | 20 % | 80 mOhm |
