MAX4680 Series

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

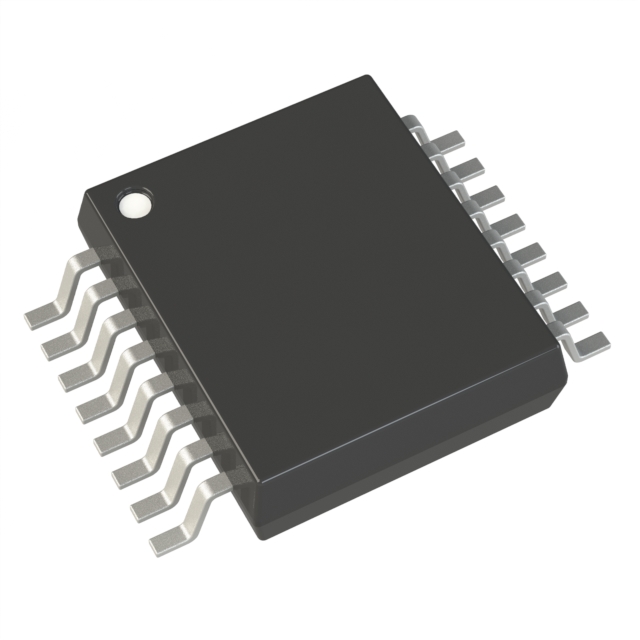

IC SW SPST-NCX2 1.25OHM 16SSOP

Part	Crosstalk	On-State Resistance (Max) [Max]	Number of Circuits	Multiplexer/Demultiplexer Circuit	Charge Injection	Voltage - Supply, Single (V+) [Min]	Voltage - Supply, Single (V+) [Max]	Channel Capacitance (CS(off), CD(off)) [custom]	Channel Capacitance (CS(off), CD(off)) [custom]	Voltage - Supply, Dual (V±) [Min]	Voltage - Supply, Dual (V±) [Max]	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Switch Time (Ton, Toff) (Max) [custom]	Switch Time (Ton, Toff) (Max) [custom]	Channel-to-Channel Matching (ΔRon)	Package / Case	Package / Case [custom]	Package / Case [custom]	Switch Circuit	Current - Leakage (IS(off)) (Max)	Package / Case [x]	Package / Case [y]	Package / Case	Package / Case
Analog Devices Inc./Maxim Integrated MAX4680EAE+	-65 dB	1.25 Ohm	2	1:1	55 pC	4.5 V	36 V	115 pF	115 pF	-4.5 V	20 V	16-SSOP	85 °C	-40 °C	Surface Mount	175 ns	275 ns	90 mOhm	16-SSOP	0.209 in	5.3 mm	SPST - NC	500 pA
Analog Devices Inc./Maxim Integrated MAX4680EAE+T	-65 dB	1.25 Ohm	2	1:1	55 pC	4.5 V	36 V	115 pF	115 pF	-4.5 V	20 V	16-SSOP	85 °C	-40 °C	Surface Mount	175 ns	275 ns	90 mOhm	16-SSOP	0.209 in	5.3 mm	SPST - NC	500 pA
Analog Devices Inc./Maxim Integrated MAX4680CAE+	-65 dB	1.25 Ohm	2	1:1	55 pC	4.5 V	36 V	115 pF	115 pF	-4.5 V	20 V	16-SSOP	70 °C	0 °C	Surface Mount	175 ns	275 ns	90 mOhm	16-SSOP	0.209 in	5.3 mm	SPST - NC	500 pA
Analog Devices Inc./Maxim Integrated MAX4680EAE	-65 dB	1.25 Ohm	2	1:1	55 pC	4.5 V	36 V	115 pF	115 pF	-4.5 V	20 V	16-SSOP	85 °C	-40 °C	Surface Mount	175 ns	275 ns	90 mOhm	16-SSOP	0.209 in	5.3 mm	SPST - NC	500 pA
Analog Devices Inc./Maxim Integrated MAX4680EWE	-65 dB	1.25 Ohm	2	1:1	55 pC	4.5 V	36 V	115 pF	115 pF	-4.5 V	20 V	16-SOIC	85 °C	-40 °C	Surface Mount	175 ns	275 ns	90 mOhm	16-SOIC			SPST - NC	500 pA	0.295 in	7.5 mm
Analog Devices Inc./Maxim Integrated MAX4680CWE+T	-65 dB	1.25 Ohm	2	1:1	55 pC	4.5 V	36 V	115 pF	115 pF	-4.5 V	20 V	16-SOIC	70 °C	0 °C	Surface Mount	175 ns	275 ns	90 mOhm	16-SOIC			SPST - NC	500 pA	0.295 in	7.5 mm
Analog Devices Inc./Maxim Integrated MAX4680CPE	-65 dB	1.25 Ohm	2	1:1	55 pC	4.5 V	36 V	115 pF	115 pF	-4.5 V	20 V	16-PDIP	70 °C	0 °C	Through Hole	175 ns	275 ns	90 mOhm	16-DIP			SPST - NC	500 pA			0.3 in	7.62 mm
Analog Devices Inc./Maxim Integrated MAX4680CAE	-65 dB	1.25 Ohm	2	1:1	55 pC	4.5 V	36 V	115 pF	115 pF	-4.5 V	20 V	16-SSOP	70 °C	0 °C	Surface Mount	175 ns	275 ns	90 mOhm	16-SSOP	0.209 in	5.3 mm	SPST - NC	500 pA
Analog Devices Inc./Maxim Integrated MAX4680CAE+T	-65 dB	1.25 Ohm	2	1:1	55 pC	4.5 V	36 V	115 pF	115 pF	-4.5 V	20 V	16-SSOP	70 °C	0 °C	Surface Mount	175 ns	275 ns	90 mOhm	16-SSOP	0.209 in	5.3 mm	SPST - NC	500 pA
Analog Devices Inc./Maxim Integrated MAX4680CWE	-65 dB	1.25 Ohm	2	1:1	55 pC	4.5 V	36 V	115 pF	115 pF	-4.5 V	20 V	16-SOIC	70 °C	0 °C	Surface Mount	175 ns	275 ns	90 mOhm	16-SOIC			SPST - NC	500 pA	0.295 in	7.5 mm
