5314 Series
Manufacturer: ebm-papst Inc.
Beta
⌘K

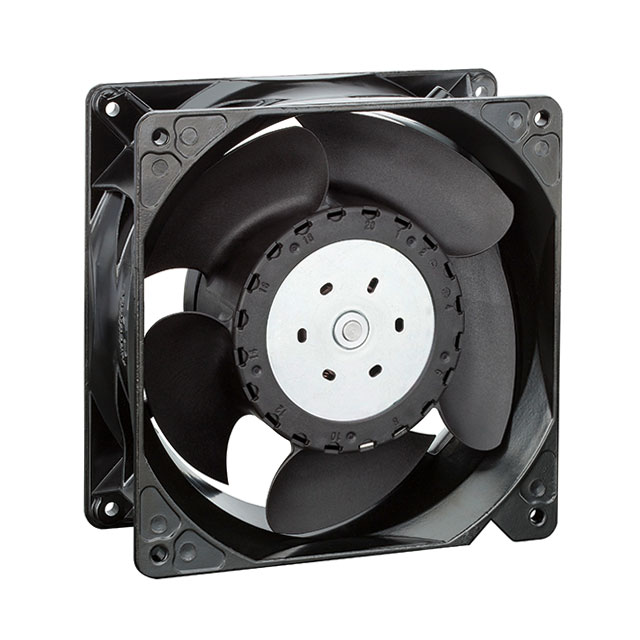

FAN AXIAL 140X50.8MM 24VDC WIRE
| Part | Material - Blade | Material - Frame | Voltage Range [Max] | Voltage Range [Min] | Lifetime @ Temp. | Weight | Weight | Fan Type | Termination | Noise | Air Flow | Air Flow | Features | RPM | Voltage - Rated | Width [y] | Power (Watts) | Operating Temperature [Min] | Operating Temperature [Max] | Size / Dimension [x] | Size / Dimension [y] | Bearing Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ebm-papst Inc. | Polyamide (PA) Nylon Fiberglass Reinforced | Aluminum | 36 VDC | 16 VDC | 70000 Hrs | 907.2 g | 2 lbs | Tubeaxial | 4 Wire Leads | 70 dB(A) | 6.76 m³/min | 241.3 CFM | PWM Control Speed Sensor (Tach) | 6000 RPM | 24 VDC | 50.8 mm | 41 W | -20 ░C | 70 °C | 140 mm | 140 mm | Ball |
