109P1412 Series

Catalog

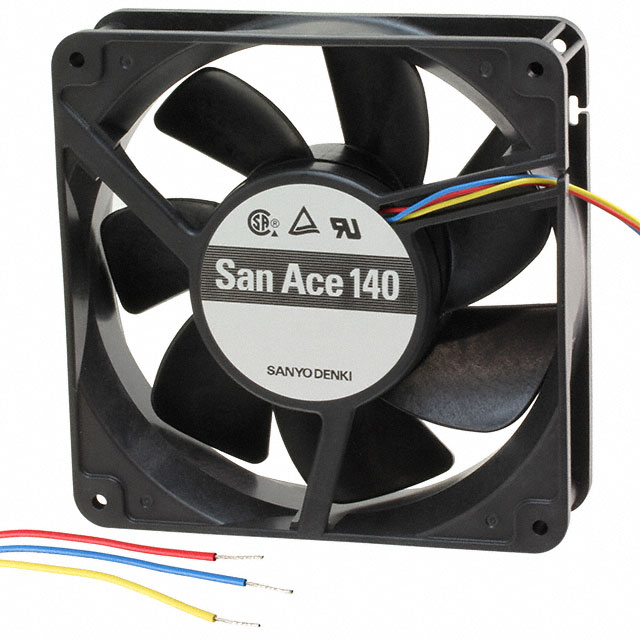

FAN AXIAL 140X38MM 12VDC WIRE

Part	Lifetime @ Temp.	Voltage Range [Min]	Voltage Range [Max]	Current Rating (Amps)	Material - Blade	Material - Frame	Fan Type	Operating Temperature [Min]	Operating Temperature [Max]	Power (Watts)	Weight [custom]	Weight [custom]	Size / Dimension [x]	Size / Dimension [y]	Features	Approval Agency	Air Flow	Air Flow	Noise	Static Pressure	Static Pressure	Bearing Type	RPM	Termination	Width [y]	Voltage - Rated
Sanyo Denki America Inc. 109P1412H1D01	40000 Hrs	10.2 VDC	13.8 VDC	0.73 A	Plastic	Plastic	Tubeaxial	-20 ░C	70 °C	8.76 W	0.993 lb	450.42 g	140 mm	140 mm	Locked Rotor Sensor	CSA TUV UL	159 CFM	4.45 m³/min	46 dB(A)	94.1 Pa	0.378 in H2O	Ball	2600 RPM	3 Wire Leads	38 mm	12 VDC

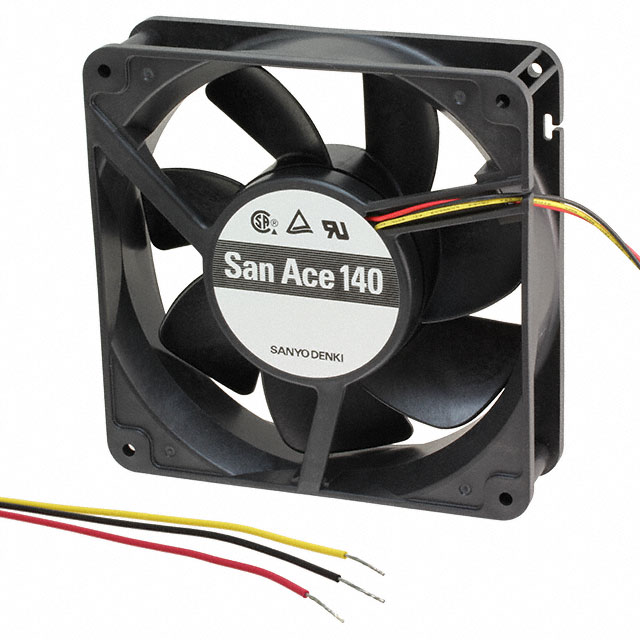

Sanyo Denki America Inc. 109P1412H101	40000 Hrs	10.2 VDC	13.8 VDC	0.73 A	Plastic	Plastic	Tubeaxial	-20 ░C	70 °C	8.76 W	0.993 lb	450.42 g	140 mm	140 mm	Locked Rotor Protection Speed Sensor (Tach)	CSA TUV UL	159 CFM	4.45 m³/min	46 dB(A)	94.1 Pa	0.378 in H2O	Ball	2600 RPM	3 Wire Leads	38 mm	12 VDC
Sanyo Denki America Inc. 109P1412H102	40000 Hrs	10.2 VDC	13.8 VDC	0.73 A	Plastic	Plastic	Tubeaxial	-20 ░C	70 °C	8.76 W	0.993 lb	450.42 g	140 mm	140 mm		CSA TUV UL	159 CFM	4.45 m³/min	46 dB(A)	94.1 Pa	0.378 in H2O	Ball	2600 RPM	2 Wire Leads	38 mm	12 VDC
