053261 Series
Manufacturer: Molex
Beta
⌘K

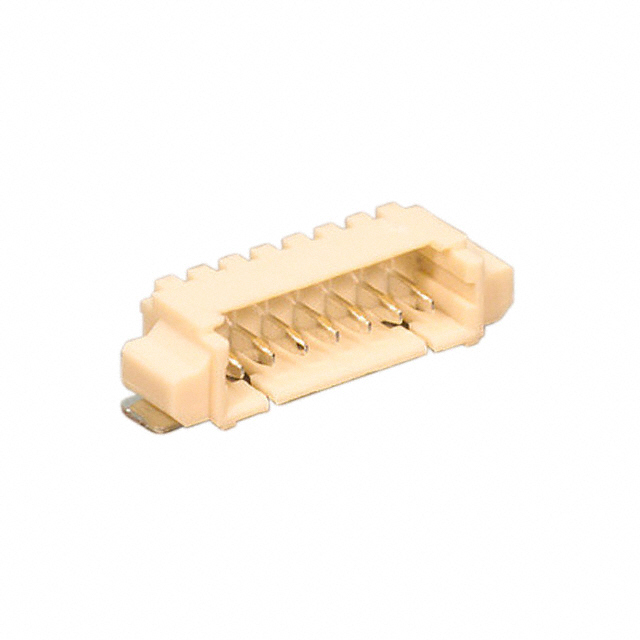

CONN HEADER SMD R/A 7POS 1.25MM
| Part | Contact Finish - Mating | Insulation Color | Pitch - Mating | Pitch - Mating | Termination | Shrouding | Contact Shape | Material Flammability Rating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Fastening Type | Applications | Insulation Material | Style | Contact Material | Number of Rows | Connector Type | Contact Type | Number of Positions Loaded | Number of Positions | Features | Insulation Height | Insulation Height | Mounting Type | Contact Finish Thickness - Mating | Current Rating (Amps) | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Finish - Post | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | Tin-Lead | Natural | 1.25 mm | 0.049 in | Solder | Shrouded - 4 Wall | Rectangular | UL94 V-0 | 1 µm | 39.4 µin | Detent Lock | Automotive General Purpose Industrial Medical | Polyamide (PA46) Nylon 4/6 | Board to Cable/Wire | Phosphor Bronze | 1 | Header | Male Blade | All | 7 | Solder Retention | 0.134 in | 3.4 mm | Surface Mount Right Angle | |||||||||
 Molex | Gold | Natural | 1.25 mm | 0.049 in | Solder | Shrouded - 4 Wall | Rectangular | UL94 V-0 | Detent Lock | Glass Filled Nylon Polyamide (PA) | Board to Cable/Wire | Phosphor Bronze | 1 | Header | Male Blade | All | 6 | Solder Retention | 0.134 in | 3.4 mm | Surface Mount Right Angle | Flash | Varies by Wire Gauge | 125 VAC | -40 °C | 105 ░C | 1 çm | 39.4 çin | Tin | ||||
Molex | |||||||||||||||||||||||||||||||||
Molex | |||||||||||||||||||||||||||||||||
 Molex | Natural | 1.25 mm | 0.049 in | Solder | Shrouded - 4 Wall | Rectangular | UL94 V-0 | 1 µm | 39.4 µin | Detent Lock | Automotive General Purpose Industrial Medical | Polyamide (PA46) Nylon 4/6 | Board to Cable/Wire | Phosphor Bronze | 1 | Header | Male Blade | All | 2 | Solder Retention | 0.134 in | 3.4 mm | Surface Mount Right Angle | Tin | |||||||||
 Molex | Gold | Natural | 1.25 mm | 0.049 in | Solder | Shrouded - 4 Wall | Rectangular | UL94 V-0 | Detent Lock | Glass Filled Nylon Polyamide (PA) | Board to Cable/Wire | Phosphor Bronze | 1 | Header | Male Blade | All | 7 | Solder Retention | 0.134 in | 3.4 mm | Surface Mount Right Angle | Flash | Varies by Wire Gauge | 125 VAC | -40 °C | 105 ░C | 1 çm | 39.4 çin | Tin | ||||
 Molex | Natural | 1.25 mm | 0.049 in | Solder | Shrouded - 4 Wall | Rectangular | UL94 V-0 | 1 µm | 39.4 µin | Detent Lock | Automotive General Purpose Industrial Medical | Polyamide (PA46) Nylon 4/6 | Board to Cable/Wire | Phosphor Bronze | 1 | Header | Male Blade | All | 12 | Solder Retention | 0.134 in | 3.4 mm | Surface Mount Right Angle | Tin | |||||||||
Molex | Gold | Natural | 1.25 mm | 0.049 in | Solder | Shrouded - 4 Wall | Rectangular | UL94 V-0 | Detent Lock | Glass Filled Nylon Polyamide (PA) | Board to Cable/Wire | Phosphor Bronze | 1 | Header | Male Blade | All | 15 | Solder Retention | 0.134 in | 3.4 mm | Surface Mount Right Angle | Flash | Varies by Wire Gauge | 125 VAC | -40 °C | 105 ░C | 1 çm | 39.4 çin | Tin | ||||
Molex | |||||||||||||||||||||||||||||||||
 Molex | Gold | Natural | 1.25 mm | 0.049 in | Solder | Shrouded - 4 Wall | Rectangular | UL94 V-0 | 0.38 µm | 15 µin | Detent Lock | Automotive General Purpose Industrial Medical | Nylon Polyamide (PA) | Board to Cable/Wire | Phosphor Bronze | 1 | Header | Male Blade | All | 13 | Solder Retention | 0.134 in | 3.4 mm | Surface Mount Right Angle | 125 VAC | -40 °C | 85 °C | 1 çm | 39.4 çin | Tin | 1 A |
