LP96W Series

Catalog

LED DRIVER AC/DC CC 8-24V 4A

Part	Mounting Type	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Input (Max) [Max]	Number of Outputs	Voltage - Isolation	Type	Voltage - Output [Max]	Voltage - Output [Min]	Termination Style	Topology	Approval Agency	Power (Watts)	Features	Operating Temperature [Min]	Operating Temperature [Max]	Ratings	Efficiency	Dimming	Current - Output (Max) [Max]	Voltage - Input (Min) [Min]	Voltage - Output

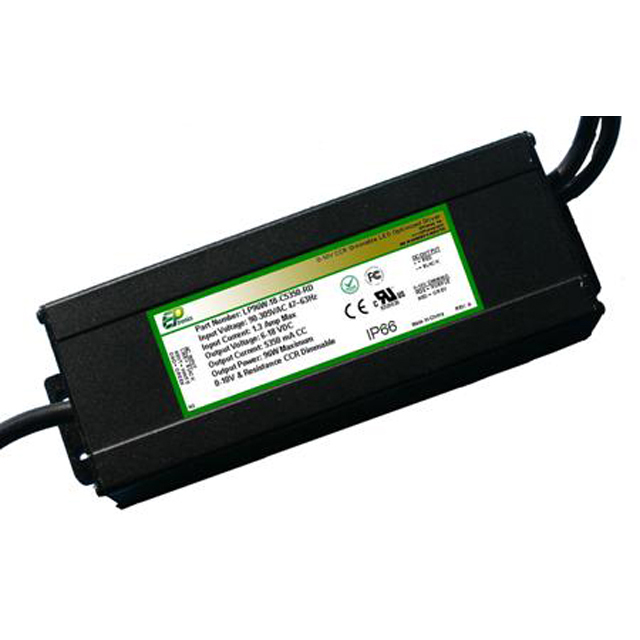

EPtronics, Inc. LP96W-24-C4000-RD	Chassis Mount	1.47 in	2.33 "	152.4 mm	37.3 mm	6 "	59.2 mm	305 VAC	1	3750 VDC	Constant Current	24 V	8 V	Wire Leads	AC DC Converter	CE cUL FCC	96 W	OCP OVP SCP	-30 ░C	65 °C	IP66	88 %	Analog PWM	4 A	90 VAC
EPtronics, Inc. LP96W-27-C3500-RD	Chassis Mount	1.47 in	2.33 "	152.4 mm	37.3 mm	6 "	59.2 mm	305 VAC	1	3750 VDC	Constant Current	27 V	9 V	Wire Leads	AC DC Converter	CE cUL FCC	96 W	OCP OVP SCP	-30 ░C	65 °C	IP66	88 %	Analog PWM	3.5 A	90 VAC
EPtronics, Inc. LP96W-36-C2660-RD	Chassis Mount	1.47 in	2.33 "	152.4 mm	37.3 mm	6 "	59.2 mm	305 VAC	1	3750 VDC	Constant Current	36 V	12 V	Wire Leads	AC DC Converter	CE cUL FCC	96 W	OCP OVP SCP	-30 ░C	65 °C	IP66	89 %	Analog PWM	2.66 A	90 VAC
EPtronics, Inc. LP96W-48-C2000-RD	Chassis Mount	1.47 in	2.33 "	152.4 mm	37.3 mm	6 "	59.2 mm	305 VAC	1	3750 VDC	Constant Current	48 V	16 V	Wire Leads	AC DC Converter	CE cUL FCC	96 W	OCP OVP SCP	-30 ░C	65 °C	IP66	90 %	Analog PWM	2 A	90 VAC
EPtronics, Inc. LP96W-30	Chassis Mount	1.47 in	2.33 "	152.4 mm	37.3 mm	6 "	59.2 mm	305 VAC	1	3750 VDC	Constant Voltage			Wire Leads	AC DC Converter	CE cUL FCC	96 W	OCP OVP SCP	-30 ░C	65 °C	IP66	89 %	Analog PWM	3.15 A	90 VAC	30 V
EPtronics, Inc. LP96W-54-C1750	Chassis Mount	1.47 in	2.33 "	152.4 mm	37.3 mm	6 "	59.2 mm	305 VAC	1	3750 VDC	Constant Current	54 V	18 V	Wire Leads	AC DC Converter	CE cUL FCC	96 W	OCP OVP SCP	-30 ░C	65 °C	IP66	91 %	Analog PWM	1.75 A	90 VAC
EPtronics, Inc. LP96W-137-C0700-RD	Chassis Mount	1.47 in	2.33 "	152.4 mm	37.3 mm	6 "	59.2 mm	305 VAC	1	3750 VDC	Constant Current	137 V	46 V	Wire Leads	AC DC Converter	CE cUL FCC	96 W	OCP OVP SCP	-30 ░C	65 °C	IP66	92 %	Analog PWM	700 mA	90 VAC
EPtronics, Inc. LP96W-92-C1050-RD	Chassis Mount	1.47 in	2.33 "	152.4 mm	37.3 mm	6 "	59.2 mm	305 VAC	1	3750 VDC	Constant Current	92 V	31 V	Wire Leads	AC DC Converter	CE cUL FCC	96 W	OCP OVP SCP	-30 ░C	65 °C	IP66	91 %	Analog PWM	1.05 A	90 VAC
EPtronics, Inc. LP96W-54-C1750-RD	Chassis Mount	1.47 in	2.33 "	152.4 mm	37.3 mm	6 "	59.2 mm	305 VAC	1	3750 VDC	Constant Current	54 V	18 V	Wire Leads	AC DC Converter	CE cUL FCC	96 W	OCP OVP SCP	-30 ░C	65 °C	IP66	91 %	Analog PWM	1.75 A	90 VAC
