T 3485 Series

Manufacturer: Amphenol Tuchel Industrial

Catalog

CONN PLUG FMALE 7P SOLDER CUP

Part	Shell Finish	Features	Ingress Protection	Fastening Type	Voltage Rating	Orientation	Number of Positions	Shielding	Mounting Type	Current Rating (Amps)	Shell Material	Color	Primary Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Shell Size - Insert	Connector Type	Material Flammability Rating	Contact Size	Type	Contact Type	Insert Material	Note	Housing Color	Contact Shape
Amphenol Tuchel Industrial T 3485 005	Nickel	Strain Relief	IP40	Threaded	250 V	Keyed	7	Shielded	Free Hanging (In-Line) Right Angle	7 A	Die Cast	Silver	Metal	-40 C	100 °C	Silver	M16-7B	Plug Female Sockets

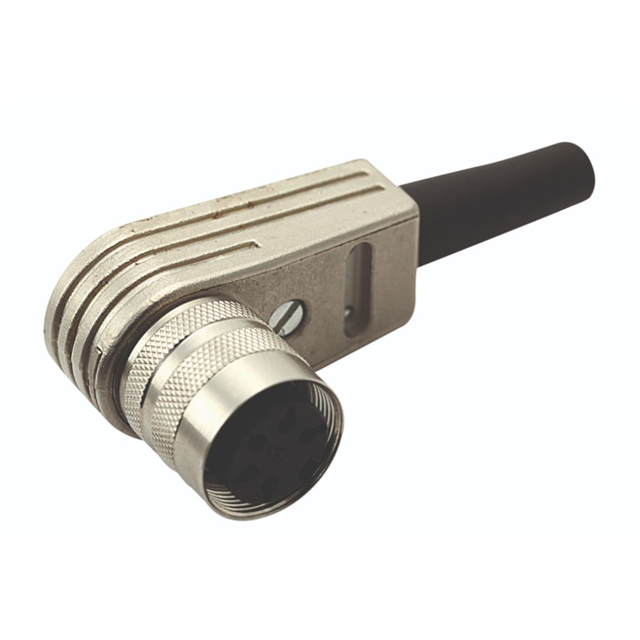

Amphenol Tuchel Industrial T 3485 055	Nickel	Cable Clamp Coupling Nut Strain Relief	IP40	Threaded		Keyed	7	Shielded	Free Hanging (In-Line) Right Angle		Die Cast			-40 C	100 °C		M16-7B	Plug Housing	UL94 V-0	1.5 mm	For Female Sockets	Crimp	Thermoplastic	Contacts Not Included	Silver	Circular
Amphenol Tuchel Industrial T 3485 013	Nickel	Strain Relief	IP40	Threaded	250 V	Keyed	7	Shielded	Free Hanging (In-Line)	7 A	Die Cast	Silver	Metal	-40 C	100 °C	Silver	M16-7B	Plug Female Sockets
Amphenol Tuchel Industrial T 3485 002	Nickel	Cable Clamp Strain Relief	IP40	Threaded	250 V	Keyed	7	Shielded	Free Hanging (In-Line)	7 A	Die Cast	Silver	Metal	-40 C	100 °C	Silver	M16-7B	Plug Female Sockets
Amphenol Tuchel Industrial T 3485 028	Nickel	Cable Clamp Strain Relief	IP40	Threaded	250 V	Keyed	7	Shielded	Free Hanging (In-Line)	7 A	Die Cast	Silver	Metal	-40 C	100 °C	Gold	M16-7B	Plug Female Sockets

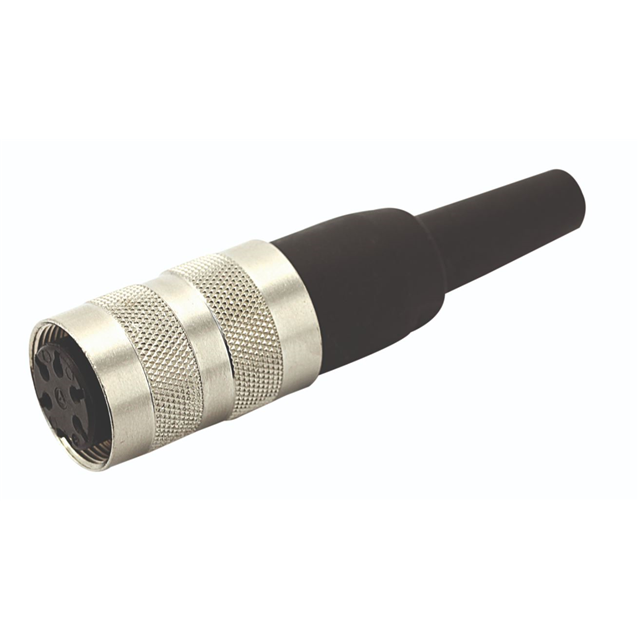

Amphenol Tuchel Industrial T 3485 551	Nickel	Cable Clamp Coupling Nut Strain Relief	IP40	Threaded		Keyed	7	Shielded	Free Hanging (In-Line)		Die Cast			-40 C	100 °C		M16-7B	Plug Housing	UL94 V-0	1.5 mm	For Female Sockets	Crimp	Thermoplastic	Contacts Not Included	Silver	Circular
