09628160 Series

Manufacturer: HARTING

Catalog

16B EMC BULKHEAD REAR FIT HOUSIN

Part	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Connector Type	Lock Location	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Housing Material	Size	Style

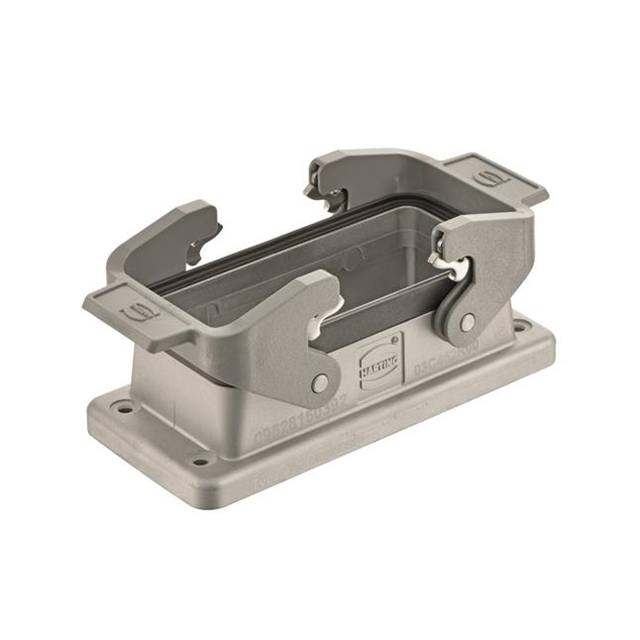

HARTING 09628160392	125 °C	-40 C	IP66 - Dust Tight Water Resistant	Base - Panel Mount	Locking Clip (2) on Base Bottom	118.5 mm	54 mm	2.126 in	1.406 in	35.7 mm	4.665 in	Aluminum Die Cast	16 B	Bottom Entry

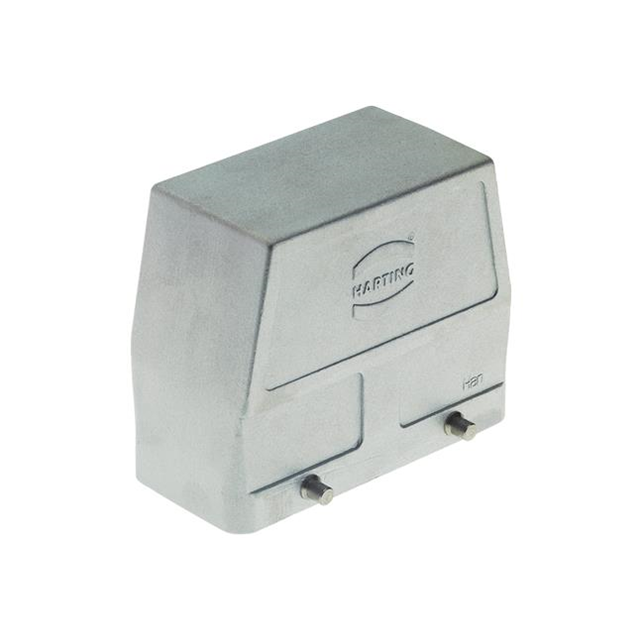

HARTING 09628160801	125 °C	-40 C	IP65 - Dust Tight Water Resistant	Hood	Locking Clip (2) on Base Bottom	93.5 mm	43 mm	1.693 "	2.992 in	76 mm	3.681 in	Aluminum Die Cast	16 B	Bottom Entry

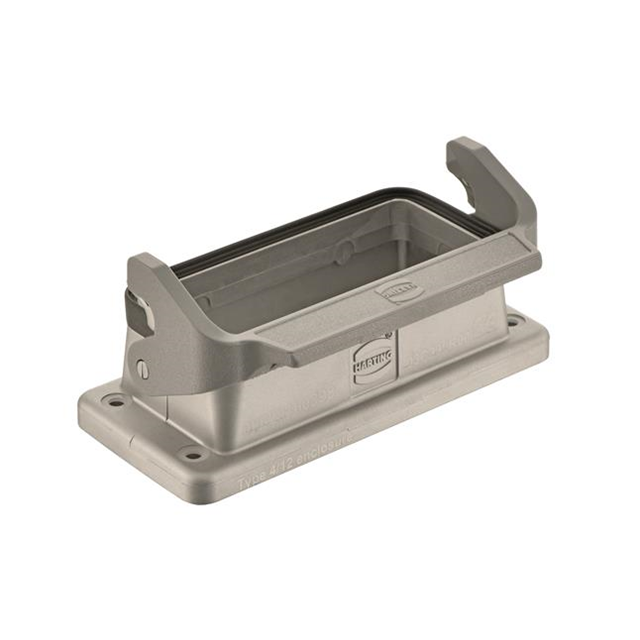

HARTING 09628160398	125 °C	-40 C	IP66 - Dust Tight Water Resistant	Base - Panel Mount	Locking Clip (1) on Base Bottom	118.5 mm	54 mm	2.126 in	1.406 in	35.7 mm	4.665 in	Aluminum Die Cast	16 B	Bottom Entry

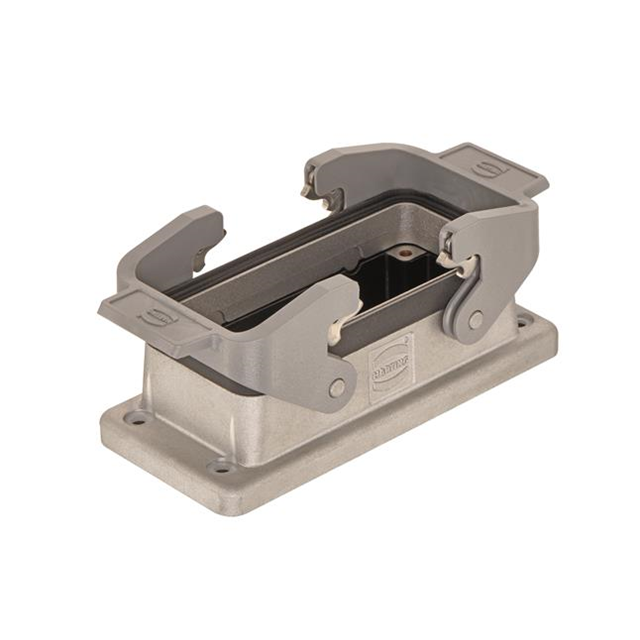

HARTING 09628160315	125 °C	-40 C	IP66 - Dust Tight Water Resistant	Base - Panel Mount	Locking Clip (2) on Base Bottom	118.5 mm	54 mm	2.126 in	1.406 in	35.7 mm	4.665 in	Aluminum Die Cast	16 B	Bottom Entry

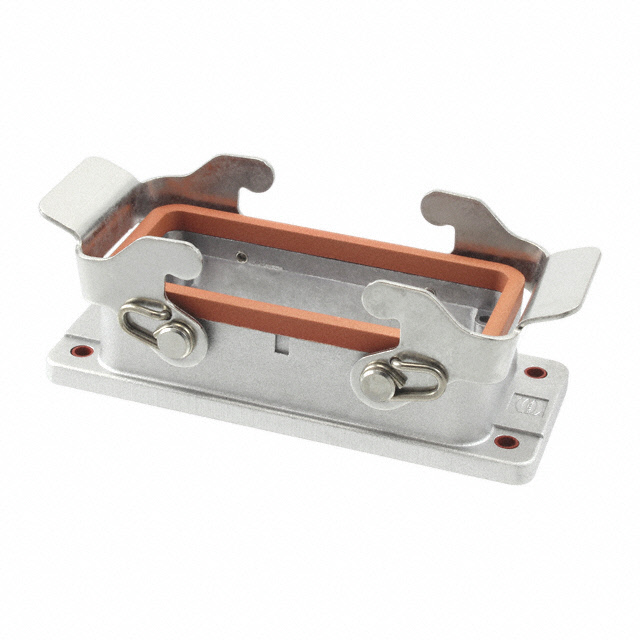

HARTING 09628160391	200 °C	-40 C	IP65 - Dust Tight Water Resistant	Base - Panel Mount	Locking Clip (2) on Base Bottom	118 mm	48.4 mm	1.906 "	1.197 in	30.4 mm	4.646 in	Aluminum Die Cast	16 B	Bottom Entry
