337-038 Series
Manufacturer: EDAC Inc.
Beta
⌘K

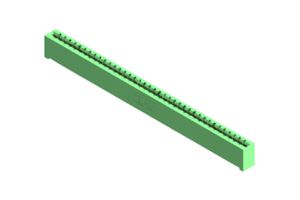

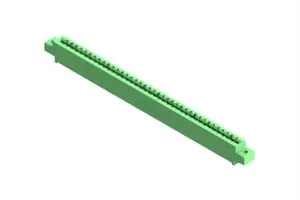

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 38 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
| Part | Material - Insulation | Termination Rows | Number of Rows | Number of Positions | Number of Positions/Bay/Row [custom] | Gender | Pitch | Pitch | Flange Feature [diameter] | Flange Feature [diameter] | Read Out | Card Type | Contact Type | Color | Contact Finish | Contact Material | Contact Finish Thickness | Contact Finish Thickness | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Card Thickness [Max] | Card Thickness [Min] | Mounting Type | Flange Feature | Features | Termination Rows [custom] | Number of Positions/Bay/Row | Number of Rows [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyester Thermoplastic | 1 | 1 | 38 | 38 | Female | 3.96 mm | 0.156 in | 3.25 mm | 0.128 " | Single | Non Specified - Single Edge | Cantilever | Green | Gold | Copper Alloy | 0.25 Ám | 10 Áin | Solder | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Through Hole | |||||
 EDAC Inc. | Polyester Thermoplastic | 1 | 1 | 38 | 38 | Female | 3.96 mm | 0.156 in | Single | Non Specified - Single Edge | Cantilever | Green | Gold | Copper Alloy | 0.25 Ám | 10 Áin | Wire Wrap | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Through Hole | 4-40 Threaded Insert Top Mount Opening | Card Guides | |||||
 EDAC Inc. | Polyester Thermoplastic | 1 | 1 | 38 | 38 | Female | 3.96 mm | 0.156 in | 3.96 mm | 0.156 " | Single | Non Specified - Single Edge | Cantilever | Green | Gold | Copper Alloy | 0.25 Ám | 10 Áin | Solder | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Through Hole | Flush Mount Top Opening Unthreaded | ||||
 EDAC Inc. | Polyester Thermoplastic | 1 | 1 | 38 | 38 | Female | 3.96 mm | 0.156 in | Single | Non Specified - Single Edge | Cantilever | Green | Gold | Copper Alloy | 0.25 Ám | 10 Áin | Solder Eyelet(s) | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Through Hole | |||||||
 EDAC Inc. | Polyester Thermoplastic | 38 | Female | 3.96 mm | 0.156 in | 3.25 mm | 0.128 " | Dual | Non Specified - Dual Edge | Cantilever | Green | Gold | Copper Alloy | 0.25 Ám | 10 Áin | Solder Eyelet(s) | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Board Edge Straddle Mount | Flush Mount Top Opening Unthreaded | Card Extender | 2 | 19 | 2 | |||
 EDAC Inc. | Polyester Thermoplastic | 1 | 1 | 38 | 38 | Female | 3.96 mm | 0.156 in | Single | Non Specified - Single Edge | Cantilever | Green | Gold | Copper Alloy | 0.25 Ám | 10 Áin | Wire Wrap | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Right Angle Through Hole | 4-40 Flush Mount Threaded Insert Top Opening | ||||||
 EDAC Inc. | Polyester Thermoplastic | 1 | 1 | 38 | 38 | Female | 3.96 mm | 0.156 in | Single | Non Specified - Single Edge | Cantilever | Green | Gold | Copper Alloy | 0.25 Ám | 10 Áin | Wire Wrap | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Right Angle Through Hole | 4-40 Threaded Insert Top Mount Opening | ||||||
 EDAC Inc. | Polyester Thermoplastic | 1 | 1 | 38 | 38 | Female | 3.96 mm | 0.156 in | Single | Non Specified - Single Edge | Cantilever | Green | Gold | Copper Alloy | 0.25 Ám | 10 Áin | Solder Eyelet(s) | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Through Hole | 4-40 Flush Mount Threaded Insert Top Opening | Card Guides | |||||
 EDAC Inc. | Polyester Thermoplastic | 38 | Female | 3.96 mm | 0.156 in | Dual | Non Specified - Dual Edge | Cantilever | Green | Gold | Copper Alloy | 0.25 Ám | 10 Áin | Wire Wrap | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Through Hole | 4-40 Flush Mount Threaded Insert Top Opening | Card Guides | 2 | 19 | 2 | |||||
 EDAC Inc. | Polyester Thermoplastic | 1 | 1 | 38 | 38 | Female | 3.96 mm | 0.156 in | Single | Non Specified - Single Edge | Cantilever | Green | Gold | Copper Alloy | 0.25 Ám | 10 Áin | Solder Eyelet(s) | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Through Hole | 4-40 Threaded Insert Top Mount Opening |
