M40-302 Series

Catalog

CONN HEADER SMD 30POS 1MM

Part	Voltage Rating	Material Flammability Rating	Style	Operating Temperature [Max]	Operating Temperature [Min]	Contact Shape	Features	Shrouding	Insulation Height [z]	Insulation Height [z]	Connector Type	Contact Material	Number of Positions	Insulation Color	Number of Rows [custom]	Contact Finish - Post	Termination	Fastening Type	Contact Type	Pitch - Mating	Pitch - Mating	Mounting Type	Number of Positions Loaded	Insulation Material
Harwin Inc. M40-3021546	50 V	UL94 V-0	Board to Cable/Wire	85 °C	-25 °C	Rectangular	Board Guide Pick and Place Solder Retention	Shrouded - 4 Wall	4.35 mm	0.171 in	Header	Copper Alloy	30	Cream	2	Tin	Solder	Detent Lock	Male Pin	1 mm	0.039 in	Surface Mount	All	Halogen Free Liquid Crystal Polymer (LCP)

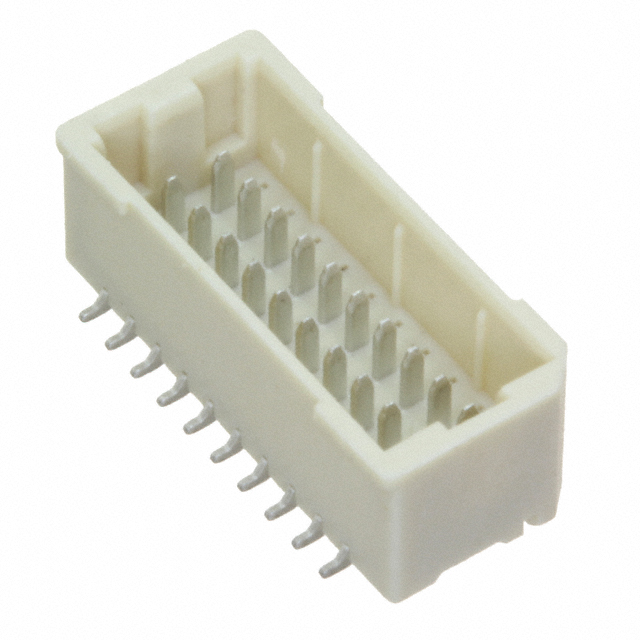

Harwin Inc. M40-3021046	50 V	UL94 V-0	Board to Cable/Wire	85 °C	-25 °C	Rectangular	Board Guide Pick and Place Solder Retention	Shrouded - 4 Wall	4.35 mm	0.171 in	Header	Copper Alloy	20	Cream	2	Tin	Solder	Detent Lock	Male Pin	1 mm	0.039 in	Surface Mount	All	Halogen Free Liquid Crystal Polymer (LCP)
