SC Series

Catalog

DIN RAIL TERMINAL BLOCKS SC 2.5-RZ/6

Part	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Features	Housing Color	Type	Number of Levels	Current - IEC	Voltage - UL	Current - UL	Voltage - IEC	Termination Style	Mounting Type	Number of Positions	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Terminal - Width [y]	Positions Per Level	Plug Wire Entry	Color
Phoenix Contact 3041590	0.08 mm²	4 mm²	Coupling Engagement Pin	Gray	Receptacle Male Pins	1	24 A	300 V	20 A	500 V	Spring Cage	Panel Mount	9	12 AWG	26 AWG	5.2 mm
Phoenix Contact 3041587	0.08 mm²	4 mm²	Coupling Engagement Pin	Gray	Receptacle Male Pins	1	24 A	300 V	20 A	500 V	Spring Cage	Panel Mount	10	12 AWG	26 AWG	5.2 mm
Phoenix Contact 3042476	0.08 mm²	6 mm²	Coupling		Receptacle Male Pins	1	32 A		30 A	800 V	Screwless - Spring Cage Tension Clamp	Free Hanging (In-Line)	4	10 AWG	28 AWG		4	180 °	Gray
Phoenix Contact 3042298	0.08 mm²	4 mm²	Coupling		Receptacle Male Pins	1	24 A	300 V	20 A	500 V	Screwless - Spring Cage Tension Clamp	Free Hanging (In-Line)	6	12 AWG	26 AWG		6	180 °	Gray
Phoenix Contact 3041406	0.08 mm²	4 mm²	Coupling		Receptacle Male Pins	1	24 A	300 V	20 A	500 V	Screwless - Spring Cage Tension Clamp	Free Hanging (In-Line)	11	12 AWG	26 AWG		11	180 °	Gray

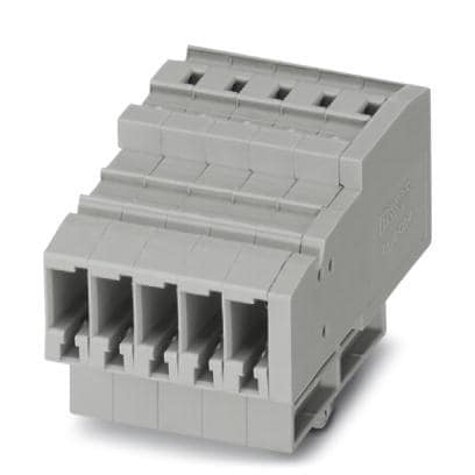

Phoenix Contact 3042625	0.08 mm²	6 mm²	Coupling Engagement Pin	Gray	Receptacle Male Pins	1	32 A		30 A	800 V	Spring Cage	Panel Mount	2	10 AWG	28 AWG	12.4 mm
