IL-Z-2 Series

Catalog

CONN HEADER SMD R/A 2POS 1.25MM

Part	Contact Length - Mating	Contact Length - Mating	Connector Type	Number of Positions Loaded	Insulation Color	Number of Positions	Current Rating (Amps)	Insulation Material	Insulation Height [z]	Insulation Height [z]	Termination	Shrouding	Contact Material	Contact Finish - Post	Mounting Type	Contact Shape	Voltage Rating	Style	Contact Type	Features	Number of Rows	Material Flammability Rating	Fastening Type	Operating Temperature [Max]	Operating Temperature [Min]	Pitch - Mating	Pitch - Mating	Note	Contact Termination	Pitch	Pitch	Mated Stacking Heights	Overall Contact Length	Overall Contact Length	Insulation Height	Insulation Height	Contact Length - Post	Contact Length - Post	Contact Finish - Mating

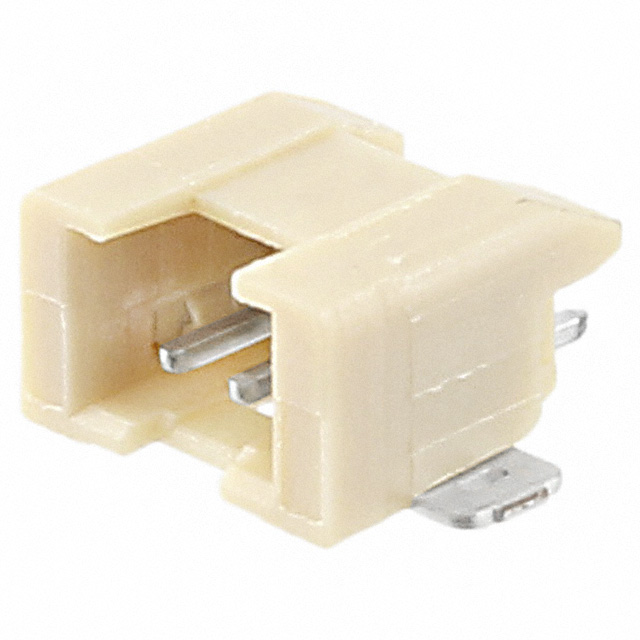

JAE Electronics IL-Z-2PL-SMTYE	0.108 in	2.75 mm	Header	All	Beige	2	1 A	Polyphenylene Sulfide (PPS)	3.46 mm	0.136 in	Solder	Shrouded - 4 Wall	Brass	Tin	Right Angle Surface Mount	Square	200 V	Board to Cable/Wire	Male Pin	Solder Retention	1	UL94 V-0	Push-Pull	70 °C	-40 C	0.049 in	1.25 mm
JAE Electronics IL-Z-2PL-SMTYE-R1500	0.108 in	2.75 mm	Header	All	Beige	2	1 A	Polyphenylene Sulfide (PPS)	3.46 mm	0.136 in	Solder	Shrouded - 4 Wall	Brass	Tin	Right Angle Surface Mount	Square	200 V	Board to Cable/Wire	Male Pin	Solder Retention	1	UL94 V-0	Friction Lock	70 °C	-40 C	0.049 in	1.25 mm

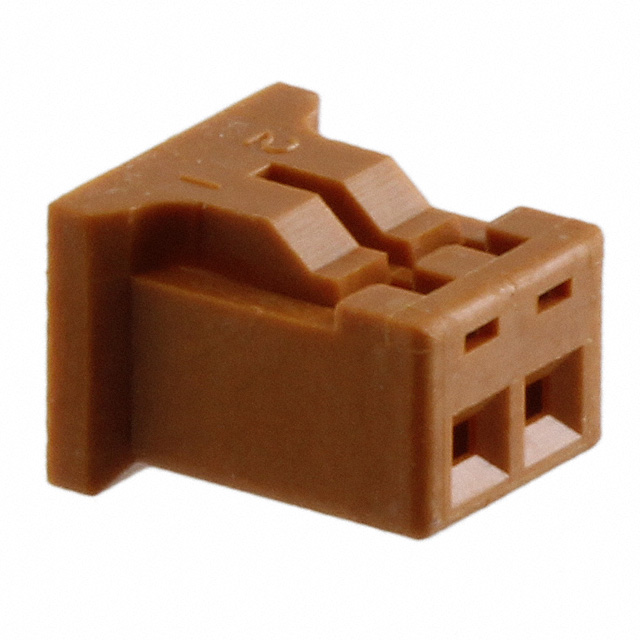

JAE Electronics IL-Z-2S-S125C3			Receptacle			2		Glass Filled Nylon 6/6 Polyamide (PA66)							Free Hanging (In-Line)				Female Socket		1		Friction Lock	70 °C	-40 C			Contacts Not Included	Crimp	0.049 in	1.25 mm
JAE Electronics IL-Z-2P-S125T3-E	0.108 in	2.75 mm	Header	All	Brown	2	1 A	Nylon 6/6 Polyamide (PA66)			Solder	Shrouded - 4 Wall	Brass	Tin	Through Hole	Square	200 V	Board to Cable/Wire	Male Pin		1	UL94 V-0	Push-Pull	70 °C	-40 C	0.049 in	1.25 mm					5.2 mm	0.209 in	5.3 mm	4.25 mm	0.167 "	1.7 mm	0.067 in
JAE Electronics IL-Z-2PL1-SMTYE-R1500	0.108 in	2.75 mm	Header	All	Beige	2	1 A	Polyphenylene Sulfide (PPS)	3.46 mm	0.136 in	Solder	Shrouded - 4 Wall	Brass		Right Angle Surface Mount	Square	200 V	Board to Cable/Wire	Male Pin	Solder Retention	1	UL94 V-0	Friction Lock	70 °C	-40 C	0.049 in	1.25 mm												Gold
JAE Electronics IL-Z-2PL1-SMTYE	0.108 in	2.75 mm	Header	All	Beige	2	1 A	Polyphenylene Sulfide (PPS)	3.46 mm	0.136 in	Solder	Shrouded - 4 Wall	Brass		Right Angle Surface Mount	Square	200 V	Board to Cable/Wire	Male Pin	Solder Retention	1	UL94 V-0	Friction Lock	70 °C	-40 C	0.049 in	1.25 mm												Gold
