717-036 Series
Manufacturer: EDAC Inc.
Beta
⌘K

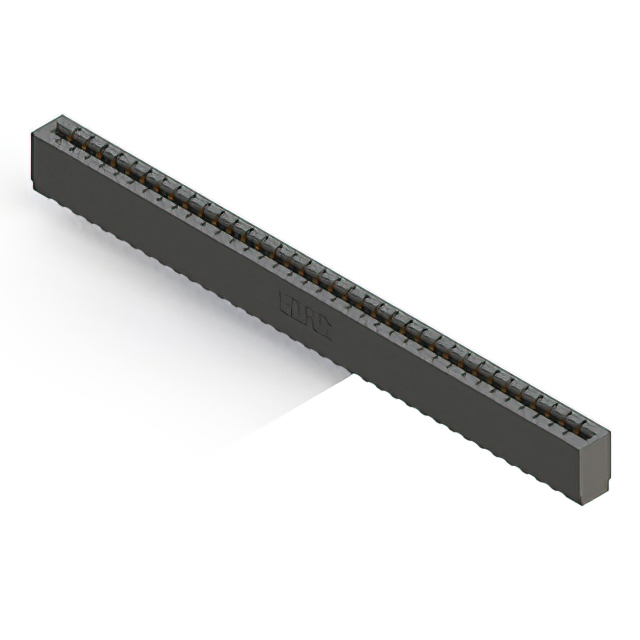

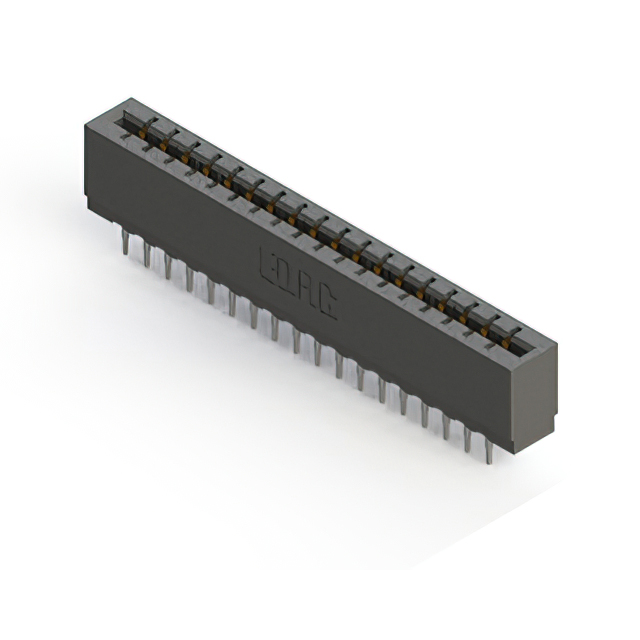

CONN EDGE DUAL FMALE 36POS 0.156
| Part | Material - Insulation | Termination Rows [custom] | Pitch | Pitch | Card Type | Number of Positions/Bay/Row [custom] | Color | Contact Type | Number of Rows [custom] | Contact Material | Contact Finish Thickness | Contact Finish Thickness | Read Out | Card Thickness [Max] | Card Thickness [Min] | Contact Finish | Gender | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions | Termination | Mounting Type | Termination Rows | Number of Positions/Bay/Row | Number of Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyester Thermoplastic | 2 | 3.96 mm | 0.156 in | Non Specified - Dual Edge | 18 | Black | Cantilever Make Before Break | 2 | Copper Alloy | 30 Áin | 0.76 Ám | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Female | -40 C | 105 ░C | 36 | Press-Fit | Through Hole | |||
 EDAC Inc. | Polyester Thermoplastic | 3.96 mm | 0.156 in | Non Specified - Single Edge | Black | Cantilever | Copper Alloy | 30 Áin | 0.76 Ám | Single | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Female | -40 C | 105 ░C | 36 | Press-Fit | Through Hole | 1 | 36 | 1 | |||
 EDAC Inc. | Polyester Thermoplastic | 2 | 3.96 mm | 0.156 in | Non Specified - Dual Edge | 18 | Black | Cantilever | 2 | Copper Alloy | 30 Áin | 0.76 Ám | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Female | -40 C | 105 ░C | 36 | Press-Fit Wire Wrap | Through Hole | |||
 EDAC Inc. | Polyester Thermoplastic | 3.96 mm | 0.156 in | Non Specified - Single Edge | Black | Cantilever | Copper Alloy | 30 Áin | 0.76 Ám | Single | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Female | -40 C | 105 ░C | 36 | Press-Fit Wire Wrap | Through Hole | 1 | 36 | 1 |
