G125-MC3 Series

Catalog

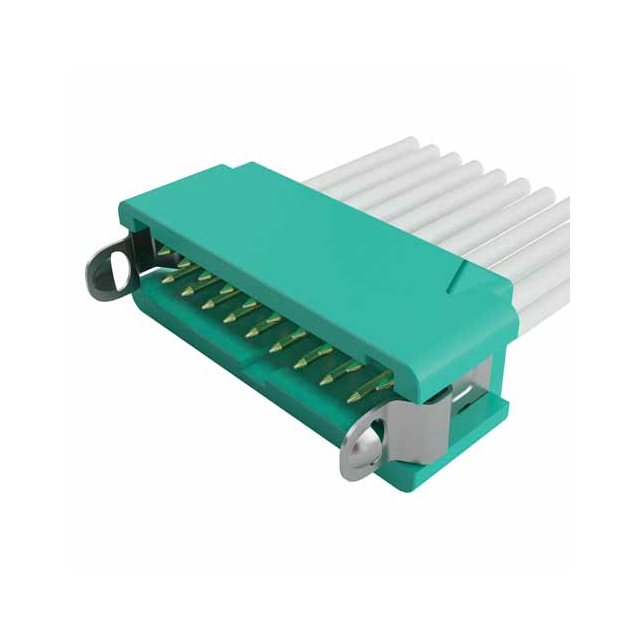

10+10 POS. MALE-FEMALE DIL 30AWG CABLE ASSEMBLY, 300MM, LATCHES ROHS COMPLIANT: YES

Part	Number of Positions	Number of Rows [custom]	Shielding	Length [x]	Length [x]	Length [x]	Features	Connector Type	Contact Finish	Cable Termination	Pitch - Connector	Pitch - Connector	Length	Length	Length
Harwin Inc. G125-MC32005L4-0300F	20	2	Unshielded	0.984 ft	300 mm	11.81 in	Latch Holder Latch Lock Polarizing Key	Socket to Plug	Gold	Crimp	0.049 in	1.25 mm
Harwin Inc. G125-MC32605L4-0150M	26	2	Unshielded				Latch Lock Polarizing Key	Plug to Plug	Gold	Crimp	0.049 in	1.25 mm	5.91 in	0.492 ft	150 mm
Harwin Inc. G125-MC32005L4-0150M	20	2	Unshielded				Latch Lock Polarizing Key	Plug to Plug	Gold	Crimp	0.049 in	1.25 mm	5.91 in	0.492 ft	150 mm
Harwin Inc. G125-MC32605L4-0150F	26	2	Unshielded				Latch Holder Latch Lock Polarizing Key	Socket to Plug	Gold	Crimp	0.049 in	1.25 mm	5.91 in	0.492 ft	150 mm
Harwin Inc. G125-MC31205L4-0300F	12	2	Unshielded	0.984 ft	300 mm	11.81 in	Latch Holder Latch Lock Polarizing Key	Socket to Plug	Gold	Crimp	0.049 in	1.25 mm
Harwin Inc. G125-MC32005L4-0450L	20	2	Unshielded	1.48 '	0.45 m		Latch Lock Polarizing Key	Plug to Individual Wire Leads	Gold	Crimp	0.049 in	1.25 mm
