EFB1324 Series
Manufacturer: Delta Electronics
Beta
⌘K

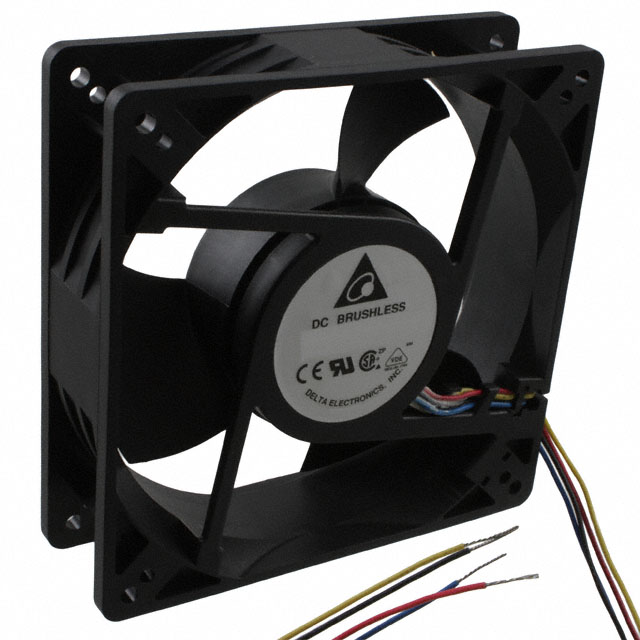

FAN AXIAL 127X38MM 24VDC WIRE
| Part | Voltage Range [Min] | Voltage Range [Max] | Material - Frame | Lifetime @ Temp. | Material - Blade | Current Rating (Amps) | Operating Temperature [Max] | Operating Temperature [Min] | Noise | Bearing Type | Ingress Protection | Fan Type | Termination | Width [y] | Power (Watts) | Weight | Weight | RPM | Approval Agency | Air Flow | Air Flow | Size / Dimension [z] | Size / Dimension [x] | Static Pressure | Static Pressure | Voltage - Rated | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Delta Electronics | 18 VDC | 28 V | Plastic | 70000 Hrs | Plastic | 750 mA | 70 °C | -10 °C | 58.5 dB | Ball | IP56 - Dust Protected Water Resistant | Tubeaxial | 4 Wire Leads | 38 mm | 18 W | 370.13 g | 0.816 lb | 4600 RPM | CE CSA UL VDE | 200 CFM | 5.6 mł/min | 5 in | 5 " | 188.6 Pa | 0.757 in H2O | 24 VDC | GR-487 (Salt Fog Protection) PWM Control Speed Sensor (Tach) |
