1023-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

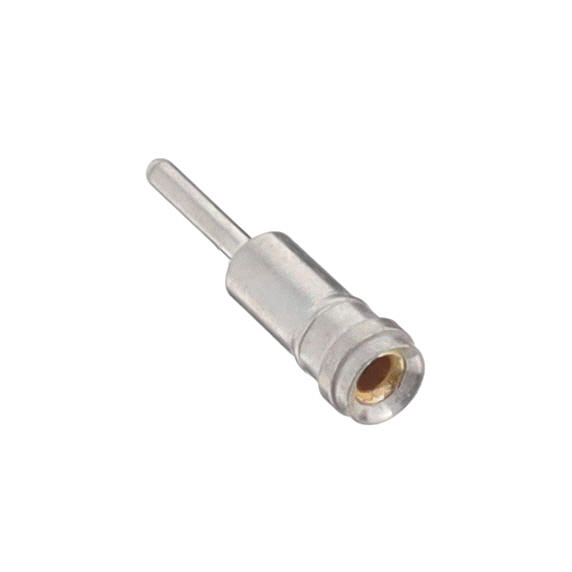

CONN PIN RCPT
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Tail Type | Flange Diameter [diameter] | Flange Diameter [diameter] | Contact Finish Thickness | Contact Finish Thickness | Accepts Pin Diameter [Max] | Accepts Pin Diameter [Min] | Accepts Pin Diameter [Max] | Accepts Pin Diameter [Min] | Socket Depth | Socket Depth | Termination | Contact Material | Tail Diameter [diameter] | Tail Diameter [diameter] | Contact Finish | Length - Overall | Length - Overall | Mounting Hole Diameter [diameter] | Mounting Hole Diameter |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | Standard Tail | 0.072 " | 1.83 mm | 0.25 Ám | 10 Áin | 0.64 mm | 0.015 " | 0.025 in | 0.38 mm | 0.146 in | 3.71 mm | Press-Fit | Beryllium Copper | 0.56 mm | 0.022 in | Gold | 0.29 in | 7.37 mm | 0.061 " | 1.55 mm |
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | Standard Tail | 0.072 " | 1.83 mm | 0.76 Ám | 30 Áin | 0.64 mm | 0.015 " | 0.025 in | 0.38 mm | 0.146 in | 3.71 mm | Press-Fit | Beryllium Copper | 0.56 mm | 0.022 in | Gold | 0.29 in | 7.37 mm | 0.061 " | 1.55 mm |
