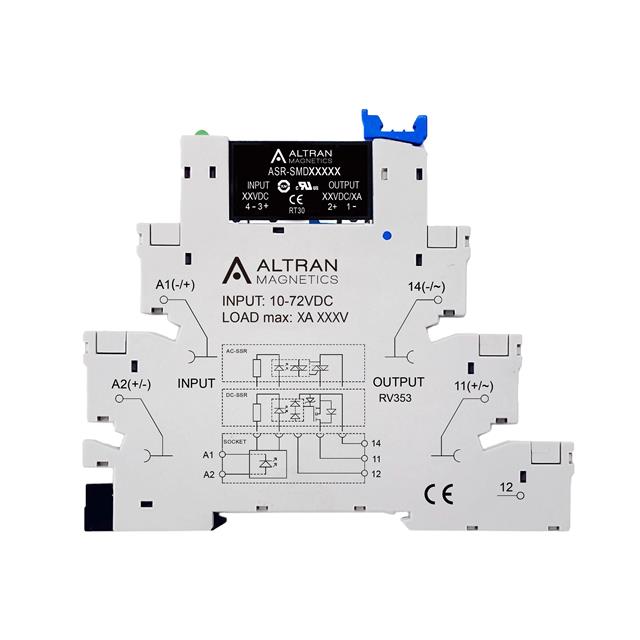

ASR-SMD Series
Manufacturer: Altran Magnetics, LLC
Beta
⌘K
SSR RELAY SPST-NO 100MA 3-58V
| Part | Voltage - Input | Termination Style | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Output Type | Voltage - Load [Max] | Voltage - Load [Min] | Approval Agency | Load Current | Package / Case | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Altran Magnetics, LLC | 24 VDC | PC Pin | 80 °C | -30 ░C | Through Hole | DC | 58 V | 3 V | CE cURus TUV | 100 mA | 4-SIP | 4-SIP |
Altran Magnetics, LLC | 12 VDC | Screw Terminal | 80 °C | -30 ░C | DIN Rail | DC | 58 V | 3 V | CE cURus TUV | 3 A | Module | |
Altran Magnetics, LLC | 24 VDC | Screw Terminal | 80 °C | -30 ░C | DIN Rail | DC | 28 V | 3 V | CE cURus TUV | 4 A | Module | |
Altran Magnetics, LLC | 5 V | Screw Terminal | 80 °C | -30 ░C | DIN Rail | DC | 28 V | 3 V | CE cURus TUV | 4 A | Module | |
Altran Magnetics, LLC | 60 VDC | PC Pin | 80 °C | -30 ░C | Through Hole | DC | 58 V | 3 V | 100 mA | 4-SIP | 4-SIP | |
 Altran Magnetics, LLC | 12 VDC | PC Pin | 80 °C | -30 ░C | Through Hole | DC | 58 V | 3 V | CE cURus TUV | 100 mA | 4-SIP | 4-SIP |
