A780MS Series

Manufacturer: KEMET

Catalog

CAP ALUMHYB 100UF 20% 63V SMD

Part	Package / Case	Ratings	Lifetime @ Temp.	Ripple Current @ Low Frequency	Mounting Type	Tolerance	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [diameter]	Size / Dimension [diameter]	Applications	ESR (Equivalent Series Resistance)	Voltage - Rated	Ripple Current @ High Frequency	Capacitance	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Features
KEMET A780MS107M1JLAS030	Radial Can - SMD	AEC-Q200	4000 Hrs	396 mA	Surface Mount	20 %	-55 C	125 °C	0.394 in	10 mm	Automotive	30 mOhms	63 V	1.8 A	100 µF	0.406 "	0.406 in	10.3 mm	10.3 mm	Hybrid	0.5 in	12.7 mm
KEMET A780MS566M1JLAV030	Radial Can - SMD	AEC-Q200	4000 Hrs	396 mA	Surface Mount	20 %	-55 C	125 °C	0.394 in	10 mm	Automotive	30 mOhms	63 V	1.8 A	56 µF			0.406 in	0.425 in	Hybrid			10.8 mm	10.3 mm	13.2 mm	0.52 in	Anti-Vibration

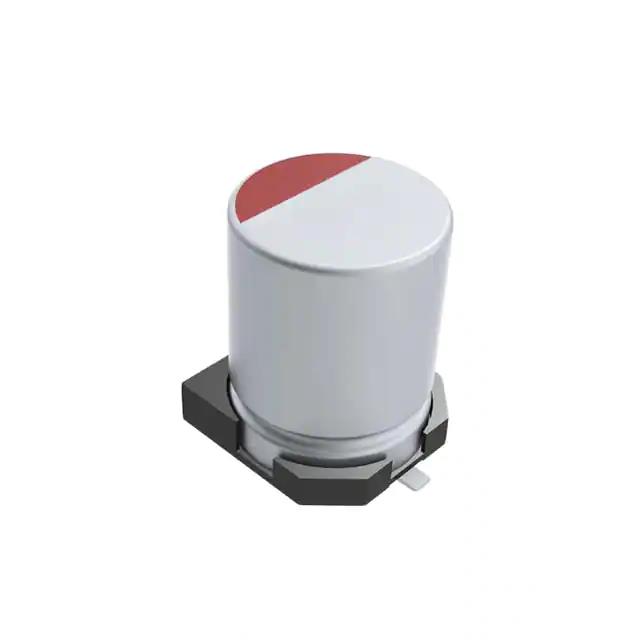

KEMET A780MS566M1JLAS030	Radial Can - SMD	AEC-Q200	4000 Hrs	396 mA	Surface Mount	20 %	-55 C	125 °C	0.394 in	10 mm	Automotive	30 mOhms	63 V	1.8 A	56 µF	0.406 "	0.406 in	10.3 mm	10.3 mm	Hybrid	0.5 in	12.7 mm
