MAX77857 Series

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

EVAL BOARD FOR MAX77857

Part	Main Purpose	Voltage - Input [Min]	Voltage - Input [Max]	Utilized IC / Part	Current - Output	Voltage - Output	Regulator Topology	Outputs and Type	Outputs and Type	Frequency - Switching	Supplied Contents	Board Type	Voltage - Input (Max) [Max]	Voltage - Output (Min/Fixed)	Voltage - Output (Min/Fixed)	Output Configuration	Function	Voltage - Input (Min) [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Topology	Package / Case	Output Type	Number of Outputs	Supplier Device Package [y]	Supplier Device Package [x]	Supplier Device Package	Mounting Type	Frequency - Switching [Min]	Frequency - Switching [Max]

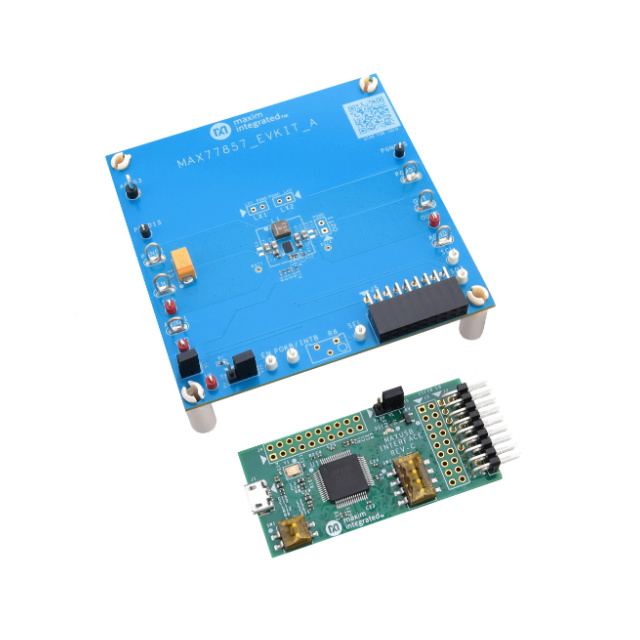

Analog Devices Inc./Maxim Integrated MAX77857WEVKIT#	DC/DC Step Up or Down	2.5 V	16 V	MAX77857	7 A	5 V	Buck-Boost	Non-Isolated	1	1.8 MHz	Board(s)	Fully Populated

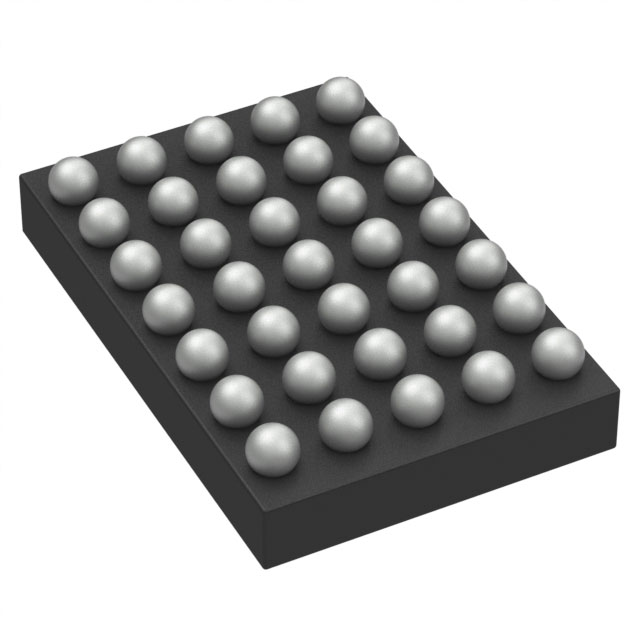

Analog Devices Inc./Maxim Integrated MAX77857CEWB+T					6 A								16 V	5 V	3 V	Positive	Step-Up/Step-Down	2.5 V	-40 °C	125 ¯C	Buck-Boost	35-WFBGA WLBGA	Programmable (Fixed)	1	2.03	2.83	35-WLP	Surface Mount
Analog Devices Inc./Maxim Integrated MAX77857BEWB+					6 A								16 V		3 V 5 V	Positive	Step-Up/Step-Down	2.5 V	-40 °C	125 ¯C	Buck-Boost	35-WFBGA WLBGA	Programmable (Fixed)	1	2.03	2.83	35-WLP	Surface Mount	1.2 MHz	2.1 MHz
Analog Devices Inc./Maxim Integrated MAX77857AEWQ+T					6 A								16 V	5 V	3 V	Positive	Step-Up/Step-Down	2.5 V	-40 °C	125 ¯C	Buck-Boost	31-WFBGA WLBGA	Programmable (Fixed)	1	2.03	2.83	31-WLP	Surface Mount
Analog Devices Inc./Maxim Integrated MAX77857BEWB+T					6 A								16 V	5 V	3 V	Positive	Step-Up/Step-Down	2.5 V	-40 °C	125 ¯C	Buck-Boost	35-WFBGA WLBGA	Programmable (Fixed)	1	2.03	2.83	35-WLP	Surface Mount
Analog Devices Inc./Maxim Integrated MAX77857CEFE+					6 A								16 V	5 V	3 V	Positive	Step-Up/Step-Down	2.5 V	-40 °C	125 ¯C	Buck-Boost	16-PowerUFQFN	Programmable (Fixed)	1			16-FC2QFN (3.5x3.5)	Surface Mount
Analog Devices Inc./Maxim Integrated MAX77857BEFE+					6 A								16 V	5 V	3 V	Positive	Step-Up/Step-Down	2.5 V	-40 °C	125 ¯C	Buck-Boost	16-PowerUFQFN	Programmable (Fixed)	1			16-FC2QFN (3.5x3.5)	Surface Mount
Analog Devices Inc./Maxim Integrated MAX77857WGEVKIT#	DC/DC Step Up or Down	2.5 V	16 V	MAX77857	7 A	5 V	Buck-Boost	Non-Isolated	1	1.8 MHz	Board(s)	Fully Populated
Analog Devices Inc./Maxim Integrated MAX77857BEFE+T					6 A								16 V	5 V	3 V	Positive	Step-Up/Step-Down	2.5 V	-40 °C	125 ¯C	Buck-Boost	16-PowerUFQFN	Programmable (Fixed)	1			16-FC2QFN (3.5x3.5)	Surface Mount
