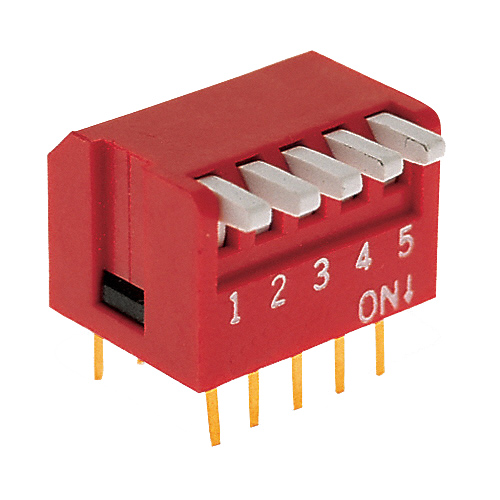

KAP1105 Series
Manufacturer: E-Switch
Beta
⌘K
SWITCH PIANO DIP SPST 0.025A 24V
| Part | Mechanical Life | Length [x] | Length | Body Material | Electrical Life | Actuator Level | Mounting Type | Contact Finish | Pitch | Pitch | Termination Style | Voltage Rating | Height Above Board | Height Above Board | Circuit | Current Rating (Amps) | Actuator Type | Number of Positions | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Washable |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | 2000 Cycles | 0.561 in | 14.25 mm | Polybutylene Terephthalate (PBT) Glass Filled | 2000 Steps | Raised | Right Angle Through Hole | Gold | 2.54 mm | 0.1 " | PC Pin | 24 VDC | 10.2 mm | 0.402 in | SPST | 25 mA | Piano | 5 | Phosphor Bronze | 85 °C | -40 C |
