SLE36 Series

Desktop AC Adapters 36W 36Vout 2.3mm C8 Input Connector

Manufacturer: SL POWER / Advanced Energy

Catalog

Desktop AC Adapters 36W 36Vout 2.3mm C8 Input Connector

Catalog

Desktop AC Adapters 36W 36Vout 2.3mm C8 Input Connector

Part	Voltage - Output	Region Utilized	Operating Temperature [Max]	Operating Temperature [Min]	Output Connector [diameter]	Output Connector	Output Connector [x]	Cord Length	Cord Length	Input Type	Approval Agency	Current - Output (Max) [Max]	Power (Watts)	Applications	No Load Power Consumption	Efficiency	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Voltage - Input [Max]	Voltage - Input [Min]	Polarization	Form	Input Connector
SL POWER / Advanced Energy SLE36S2403B01	24 V	International	40 °C	0 °C	2.5 mm 5.5 mm	Barrel Plug	11 mm	1 m	39.4 in	Multi-Blade (Sold Separately)	CB CCC CE cULus cURus GS KC PSE RCM TUV	1.5 A	36 W	ITE (Commercial) Medical	75 mW	CoC Tier 2 Level VI	1.3 in	50.5 mm	33 mm	96.7 mm	3.81 in	1.99 in	264 VAC	90 VAC	Positive Center	Wall Mount	Multi-Blade (Sold Separately)
SL POWER / Advanced Energy SLE36S0903B01	9 V	International	40 °C	0 °C	2.5 mm 5.5 mm	Barrel Plug	11 mm	1 m	39.4 in	Multi-Blade (Sold Separately)	CB CCC CE cULus cURus GS KC PSE RCM TUV	3 A	27 W	ITE (Commercial) Medical	75 mW	CoC Tier 2 Level VI	1.3 in	50.5 mm	33 mm	96.7 mm	3.81 in	1.99 in	264 VAC	90 VAC	Positive Center	Wall Mount	Multi-Blade (Sold Separately)
SL POWER / Advanced Energy SLE36S0903N01	9 V	International	40 °C	0 °C	2.5 mm 5.5 mm	Barrel Plug	11 mm	1 m	39.4 in	Cord (Sold Separately)	CB CCC CE cULus cURus GS KC PSE RCM TUV	3 A	27 W	ITE (Commercial) Medical	75 mW	CoC Tier 2 Level VI	1.97 in	33.5 mm	50 mm	102 mm	4.02 in	1.32 in	264 VAC	90 VAC	Positive Center	Desktop (Class II)	IEC 320-C8
SL POWER / Advanced Energy SLE36S2403N01	24 V	International	40 °C	0 °C	2.5 mm 5.5 mm	Barrel Plug	11 mm	1 m	39.4 in	Cord (Sold Separately)	CB CCC CE cULus cURus GS KC PSE RCM TUV	1.5 A	36 W	ITE (Commercial) Medical	75 mW	CoC Tier 2 Level VI	1.97 in	33.5 mm	50 mm	102 mm	4.02 in	1.32 in	264 VAC	90 VAC	Positive Center	Desktop (Class II)	IEC 320-C8
SL POWER / Advanced Energy SLE36S1203B01	12 V	International	40 °C	0 °C	2.5 mm 5.5 mm	Barrel Plug	11 mm	1 m	39.4 in	Multi-Blade (Sold Separately)	CB CCC CE cULus cURus GS KC PSE RCM TUV	3 A	36 W	ITE (Commercial) Medical	75 mW	CoC Tier 2 Level VI	1.3 in	50.5 mm	33 mm	96.7 mm	3.81 in	1.99 in	264 VAC	90 VAC	Positive Center	Wall Mount	Multi-Blade (Sold Separately)

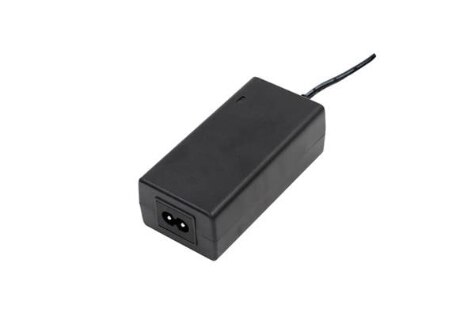

SL POWER / Advanced Energy SLE36S3603N01	36 V	International	40 °C	0 °C	2.5 mm 5.5 mm	Barrel Plug	11 mm	1 m	39.4 in	Cord (Sold Separately)	CB CCC CE cULus cURus GS KC PSE RCM TUV	1 A	36 W	ITE (Commercial) Medical	75 mW	CoC Tier 2 Level VI	1.97 in	33.5 mm	50 mm	102 mm	4.02 in	1.32 in	264 VAC	90 VAC	Positive Center	Desktop (Class II)	IEC 320-C8
SL POWER / Advanced Energy SLE36S1203N01	12 V	International	40 °C	0 °C	2.5 mm 5.5 mm	Barrel Plug	11 mm	1 m	39.4 in	Cord (Sold Separately)	CB CCC CE cULus cURus GS KC PSE RCM TUV	3 A	36 W	ITE (Commercial) Medical	75 mW	CoC Tier 2 Level VI	1.97 in	33.5 mm	50 mm	102 mm	4.02 in	1.32 in	264 VAC	90 VAC	Positive Center	Desktop (Class II)	IEC 320-C8
SL POWER / Advanced Energy SLE36S3603B01	36 V	International	40 °C	0 °C	2.5 mm 5.5 mm	Barrel Plug	11 mm	1 m	39.4 in	Multi-Blade (Sold Separately)	CB CCC CE cULus cURus GS KC PSE RCM TUV	1 A	36 W	ITE (Commercial) Medical	75 mW	CoC Tier 2 Level VI	1.3 in	50.5 mm	33 mm	96.7 mm	3.81 in	1.99 in	264 VAC	90 VAC	Positive Center	Wall Mount	Multi-Blade (Sold Separately)
