3.0SMC28A Series

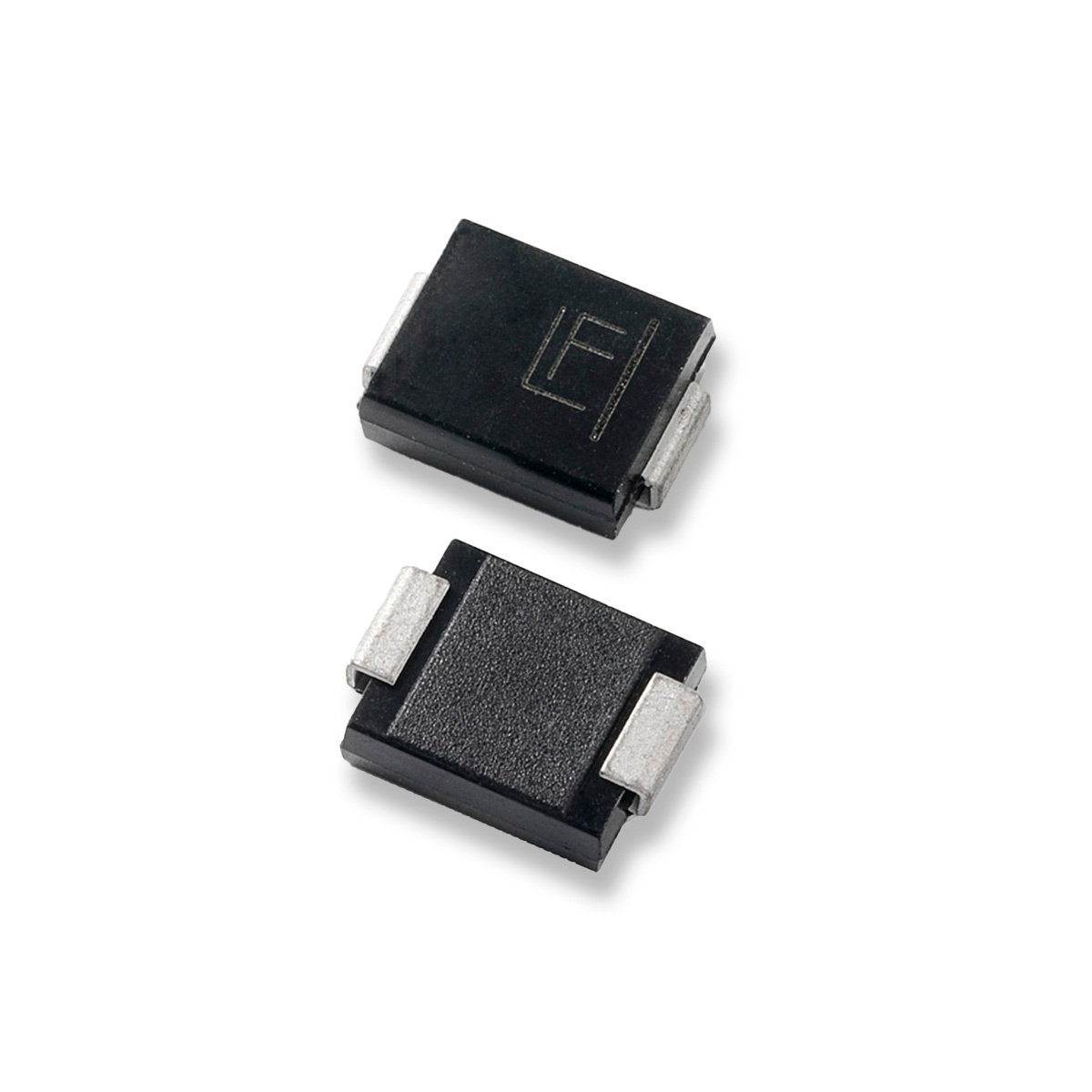

TVS Min 25KW @ 8x20us 38.7V 5%UNI DO-214

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

TVS Min 25KW @ 8x20us 38.7V 5%UNI DO-214

Part	Mounting Type	Unidirectional Channels [custom]	Supplier Device Package	Current - Peak Pulse (10/1000µs)	Package / Case	Voltage - Reverse Standoff (Typ)	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Clamping (Max) @ Ipp [Max]	Voltage - Breakdown (Min) [Min]	Type	Applications	Voltage - Clamping (Max) @ Ipp
Littelfuse/Commercial Vehicle Products 3.0SMC24A	Surface Mount	1	DO-214AB (SMCJ)	520 A	DO-214AB SMC	24 V	150 °C	-65 °C	51 V	26.7 V	Zener	General Purpose
Littelfuse/Commercial Vehicle Products 3.0SMC30A	Surface Mount	1	DO-214AB (SMCJ)	420 A	DO-214AB SMC	30 V	150 °C	-65 °C	62 V	33.3 V	Zener	General Purpose
Littelfuse/Commercial Vehicle Products 3.0SMC28A	Surface Mount	1	DO-214AB (SMCJ)	470 A	DO-214AB SMC	28 V	150 °C	-65 °C		31.1 V	Zener	General Purpose	59 V
Littelfuse/Commercial Vehicle Products 3.0SMC33A	Surface Mount	1	DO-214AB (SMCJ)	365 A	DO-214AB SMC	33 V	150 °C	-65 °C	70 V	36.7 V	Zener	General Purpose

Catalog

TVS Min 25KW @ 8x20us 38.7V 5%UNI DO-214

Key Features

• For surface mounted applications in order to optimize board space

• Low profile package

• Typical failure mode is short from over-specified voltage or current

• Whisker test is conducted based on JEDEC JESD201A per its table 4a and 4c

• IEC-61000-4-2 ESD 15 kV (Air), 8 kV (Contact)

• IPP is specified @ 8/20μS surge waveform

• Built-in strain relief

• Typical maximum temperature coefficient ΔVBR = 0.1% x VBR@25°C x ΔT

• Glass passivated chip junction

• Fast response time typically less than 1 ps from 0 V to BV min

Description

The 3.0SMC Series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.
