3072F Series
Manufacturer: Belden Inc.
Beta
⌘K

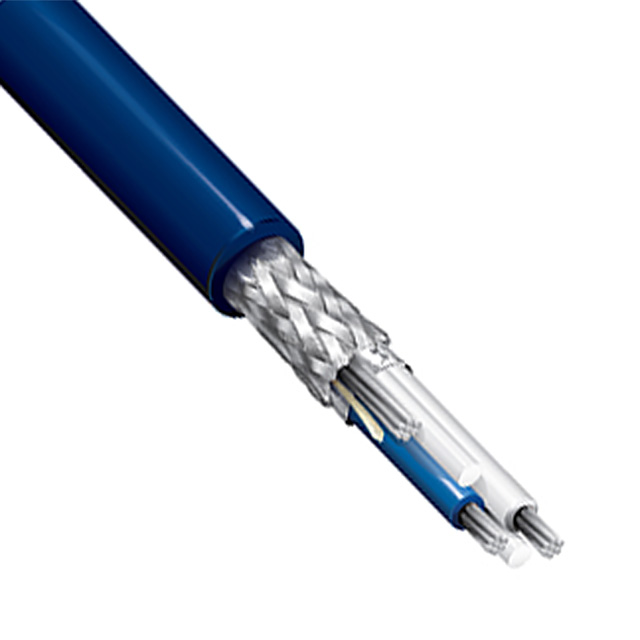

CABLE 2COND 18AWG BLUE SHLD
| Part | Shield Coverage | Shield Material | Jacket Color | Length | Length | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Material | Jacket (Insulation) Material | Conductor Insulation | Conductor Insulation | Features | Shield Type | Wire Gauge | Number of Conductors | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Cable Type | Conductor Strand [custom] | Conductor Strand [custom] | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 55 % 100 % | Aluminum Copper Tinned | Blue | 152.4 m | 500 ft | 0.053 " | 1.346 mm | Copper Tinned | Poly-Vinyl Chloride (PVC) | Polyolefin | PO | Drain Wire | Braid Foil | 18 AWG | 2 | 8.23 mm | 0.324 " | Multi-Conductor | 26 AWG | 7 | -40 C | 75 ░C |
Belden Inc. | 55 % 100 % | Aluminum Copper Tinned | Blue | 3048 m | 10000 ft | 0.053 " | 1.346 mm | Copper Tinned | Poly-Vinyl Chloride (PVC) | Polyolefin | PO | Drain Wire | Braid Foil | 18 AWG | 2 | 8.23 mm | 0.324 " | Multi-Conductor | 26 AWG | 7 | -40 C | 75 ░C |
