24_BNC-50 Series
Manufacturer: Huber+Suhner, Inc.
Beta
⌘K
24_BNC-50-6-1/12-_NE
| Part | Body Finish | Operating Temperature [Min] | Operating Temperature [Max] | Body Material | Mating Cycles | Center Contact Plating | Dielectric Material | Voltage Rating | Fastening Type | Mounting Feature | Number of Ports | Connector Style | Housing Color | Center Contact Material | Impedance | Connector Type | Shield Termination | Frequency - Max [Max] | Mounting Type | Contact Termination | Cable Group | Cable Group |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

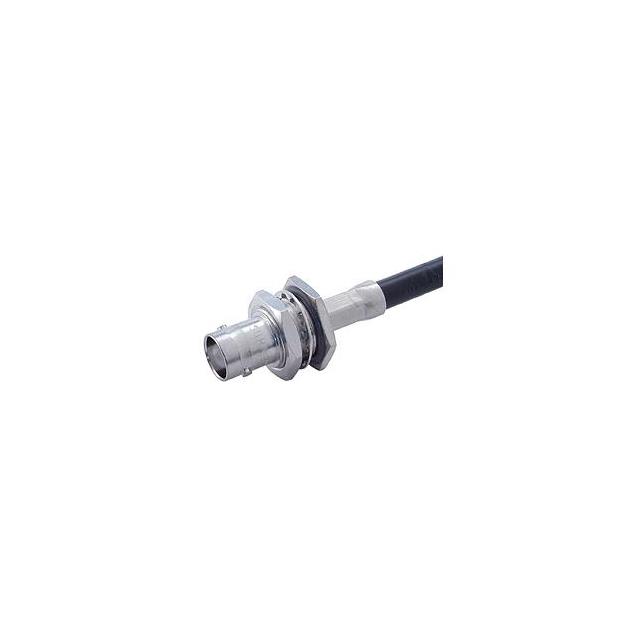

 Huber+Suhner, Inc. | Nickel | -60 °C | 165 °C | Brass | 500 | Gold | Polytetrafluoroethylene (PTFE) | 500 V | Bayonet Lock | Bulkhead - Front Side Nut | 1 | BNC | Silver | Beryllium Copper | 50 Ohms | Female Socket Jack | Clamp | 4 GHz | Panel Mount | Crimp | RG-B6C | |
 Huber+Suhner, Inc. | Bayonet Lock | 1 | BNC | Silver | Beryllium Copper Brass | 50 Ohms | Female Socket Jack | Crimp | 4 GHz | Free Hanging (In-Line) | Crimp | |||||||||||

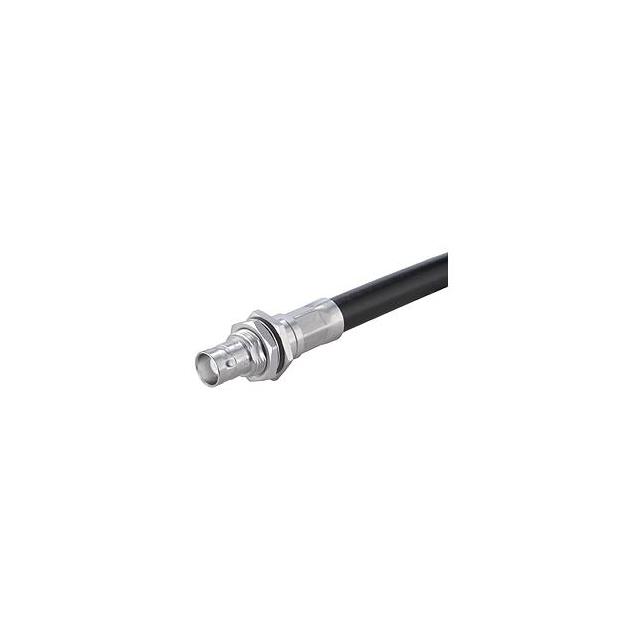

 Huber+Suhner, Inc. | White Bronze | -65 ░C | 165 °C | Brass | 500 | Gold | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | 500 V | Bayonet Lock | Bulkhead - Front Side Nut | 1 | BNC | Silver | Beryllium Copper | 50 Ohms | Female Socket Jack | Crimp | 4 GHz | Panel Mount | Crimp | 188 316 RG-174 | |
 Huber+Suhner, Inc. | White Bronze | -65 ░C | 165 °C | Brass | 500 | Gold | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | 500 V | Bayonet Lock | Bulkhead - Front Side Nut | 1 | BNC | Silver | Beryllium Copper | 50 Ohms | Female Socket Jack | Crimp | 4 GHz | Panel Mount | Crimp | RG-142 | 400 |
 Huber+Suhner, Inc. | White Bronze | -65 ░C | 165 °C | Brass | 500 | Gold | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | 500 V | Bayonet Lock | Bulkhead - Front Side Nut | 1 | BNC | Silver | Beryllium Copper | 50 Ohms | Female Socket Jack | Crimp | 4 GHz | Panel Mount | Crimp | RG-213 |
