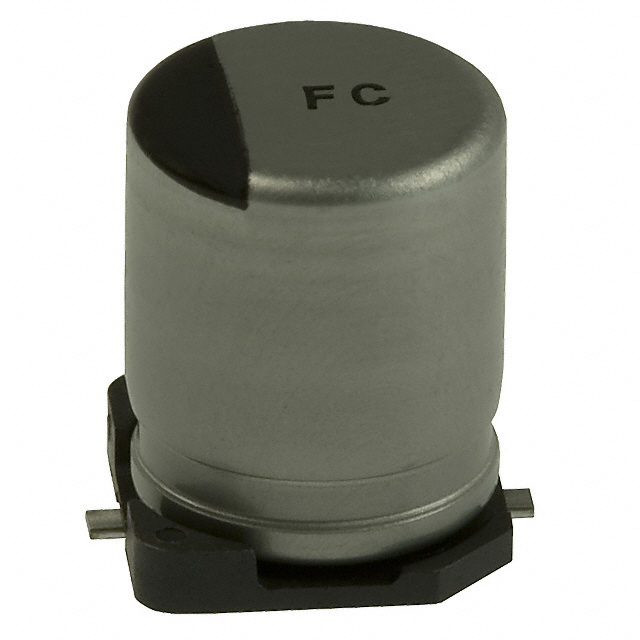

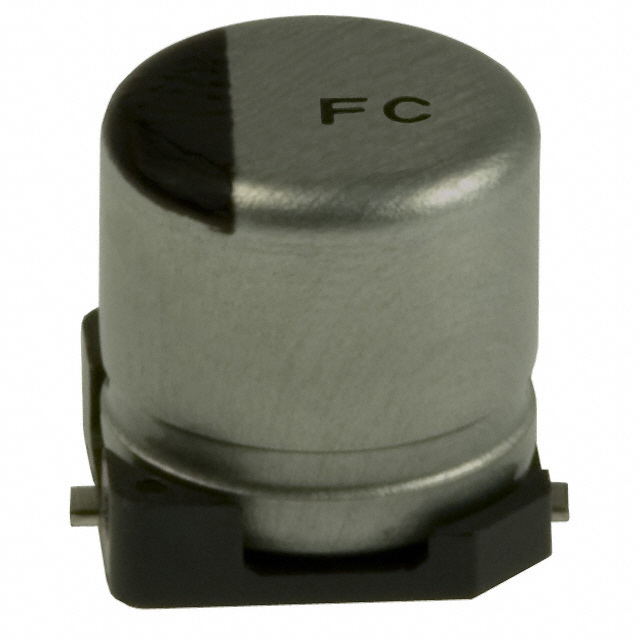

EEV-FC Series

Manufacturer: Panasonic Industrial Automation Sales

Catalog

CAP ALUM 330UF 20% 16V SMD

Part	Polarization	Mounting Type	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Ratings	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Impedance	Applications	Size / Dimension [diameter]	Size / Dimension [diameter]	Capacitance	Ripple Current @ Low Frequency	Lifetime @ Temp.	Package / Case	Voltage - Rated	Operating Temperature [Min]	Operating Temperature [Max]	Tolerance	Ripple Current @ High Frequency
Panasonic Industrial Automation Sales EEV-FC1C331P	Polar	Surface Mount	10.3 mm	0.406 in	10.3 mm	0.406 "	AEC-Q200	10.2 mm	0.402 "	150 mOhms	Automotive	10 mm	0.394 in	330 µF	502.5 mA	1000 Hrs	Radial Can - SMD	16 V	-40 °C	105 ░C	20 %
Panasonic Industrial Automation Sales EEV-FC1V6R8R	Polar	Surface Mount	5.3 mm	0.209 in	5.3 mm	0.209 in	AEC-Q200	5.4 mm	0.213 in	1.8 Ohms	Automotive	5 mm	0.197 "	6.8 ÁF	71.25 mA	1000 Hrs	Radial Can - SMD	35 V	-40 °C	105 ░C	20 %	95 mA
Panasonic Industrial Automation Sales EEV-FC0J331P	Polar	Surface Mount	8.3 mm	0.327 "	8.3 mm	0.327 in	AEC-Q200	10.2 mm	0.402 "	300 mOhms	Automotive	8 mm	0.315 "	330 µF	337.5 mA	1000 Hrs	Radial Can - SMD	6.3 V	-40 °C	105 ░C	20 %	450 mA
Panasonic Industrial Automation Sales EEV-FC1C100R	Polar	Surface Mount	4.3 mm	0.169 in	4.3 mm	0.169 "	AEC-Q200	5.4 mm	0.213 in	3 Ohms	Automotive	4 mm	0.157 in	10 µF	45 mA	1000 Hrs	Radial Can - SMD	16 V	-40 °C	105 ░C	20 %	60 mA
Panasonic Industrial Automation Sales EEV-FC0J220R	Polar	Surface Mount	4.3 mm	0.169 in	4.3 mm	0.169 "	AEC-Q200	5.4 mm	0.213 in	3 Ohms	Automotive	4 mm	0.157 in	22 µF	45 mA	1000 Hrs	Radial Can - SMD	6.3 V	-40 °C	105 ░C	20 %	60 mA
Panasonic Industrial Automation Sales EEV-FC1A151P	Polar	Surface Mount	8.3 mm	0.327 "	8.3 mm	0.327 in	AEC-Q200	6.2 mm	0.244 in	400 mOhms	Automotive	8 mm	0.315 "	150 µF	172.5 mA	1000 Hrs	Radial Can - SMD	10 V	-40 °C	105 ░C	20 %	230 mA
Panasonic Industrial Automation Sales EEV-FC0J102P	Polar	Surface Mount	10.3 mm	0.406 in	10.3 mm	0.406 "	AEC-Q200	10.2 mm	0.402 "	150 mOhms	Automotive	10 mm	0.394 in	1000 µF	502.5 mA	1000 Hrs	Radial Can - SMD	6.3 V	-40 °C	105 ░C	20 %
Panasonic Industrial Automation Sales EEV-FC1A102P	Polar	Surface Mount	10.3 mm	0.406 in	10.3 mm	0.406 "	AEC-Q200	10.2 mm	0.402 "	150 mOhms	Automotive	10 mm	0.394 in	1000 µF	502.5 mA	1000 Hrs	Radial Can - SMD	10 V	-40 °C	105 ░C	20 %
Panasonic Industrial Automation Sales EEV-FC1V3R3R	Polar	Surface Mount	4.3 mm	0.169 in	4.3 mm	0.169 "	AEC-Q200	5.4 mm	0.213 in	3 Ohms	Automotive	4 mm	0.157 in	3.3 µF	45 mA	1000 Hrs	Radial Can - SMD	35 V	-40 °C	105 ░C	20 %
Panasonic Industrial Automation Sales EEV-FC1A330R	Polar	Surface Mount	5.3 mm	0.209 in	5.3 mm	0.209 in	AEC-Q200	5.4 mm	0.213 in	1.8 Ohms	Automotive	5 mm	0.197 "	33 ÁF	71.25 mA	1000 Hrs	Radial Can - SMD	10 V	-40 °C	105 ░C	20 %	95 mA
